Home >> Buick >> 1993 >> LeSabre V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Relay Center Fuse 5

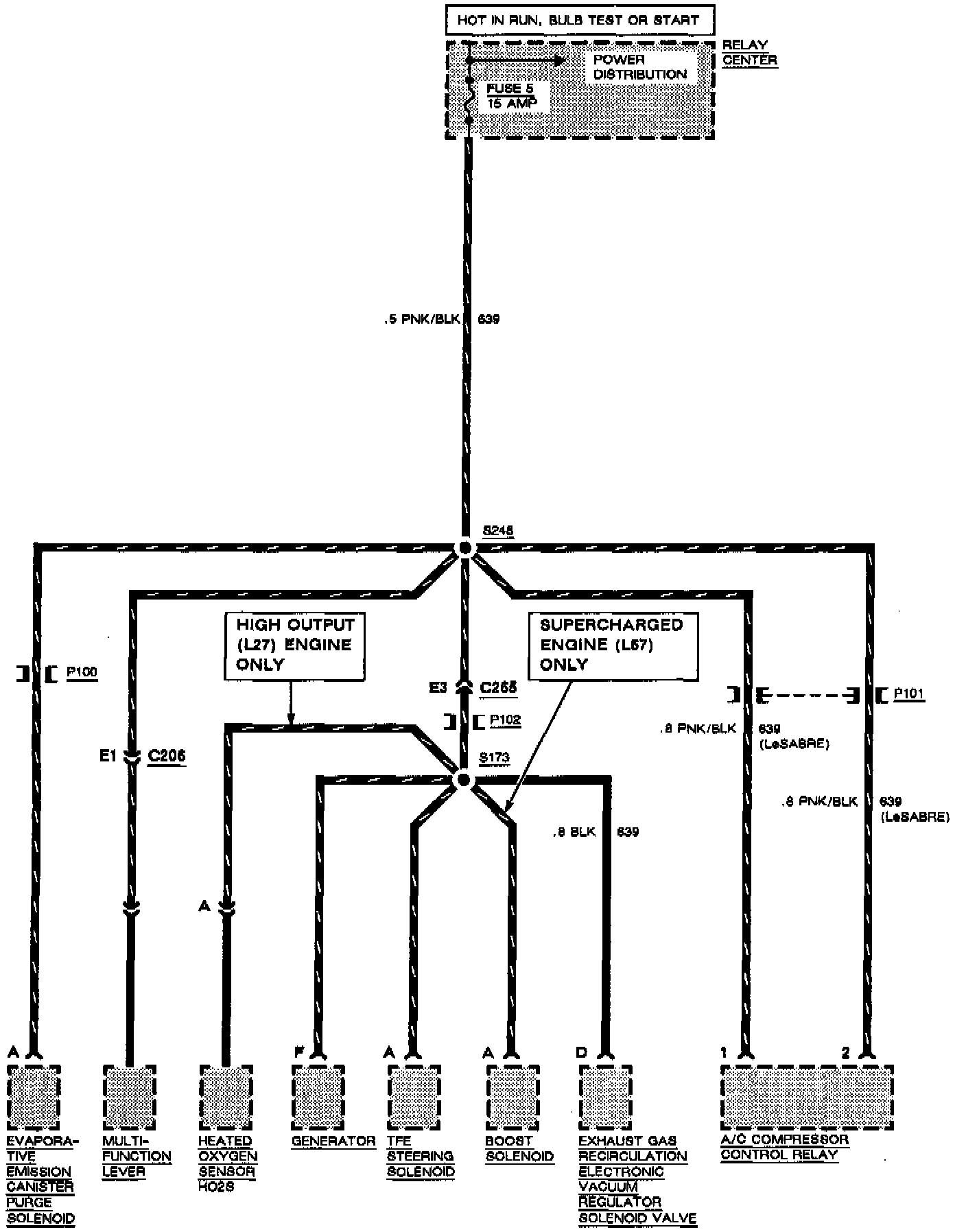

Relay Center Fuse 5

Relay Center Fuse 5:
