Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Buick
>>
1993
>>
LeSabre V6-231 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Lamp Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

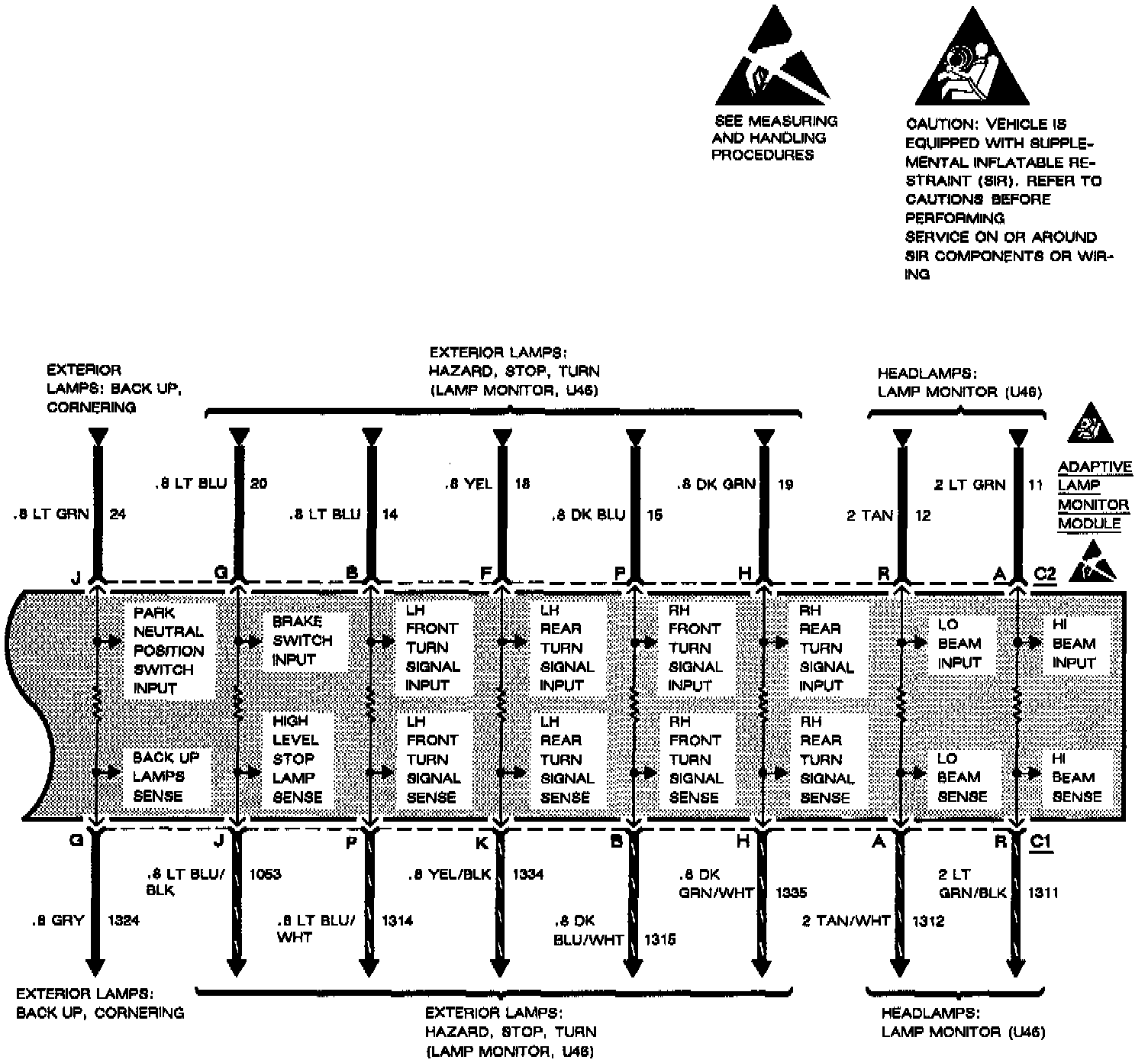

Lamp Monitor Wiring Diagram:
Lamp Monitor Wiring Diagram:
