Piston Rings Replacement

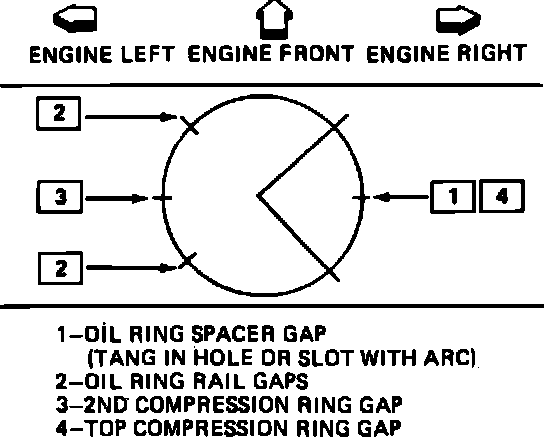

Fig. 9 Piston Ring End Gap Locations:

Install rings on piston as shown in Fig. 9.
Pistons are available in standard sizes and oversize of .010 inch. Rings are available in standard sizes and oversize of .010 inch. Piston pins are supplied with piston and available only in standard sizes.
