Trunk / Liftgate Latch

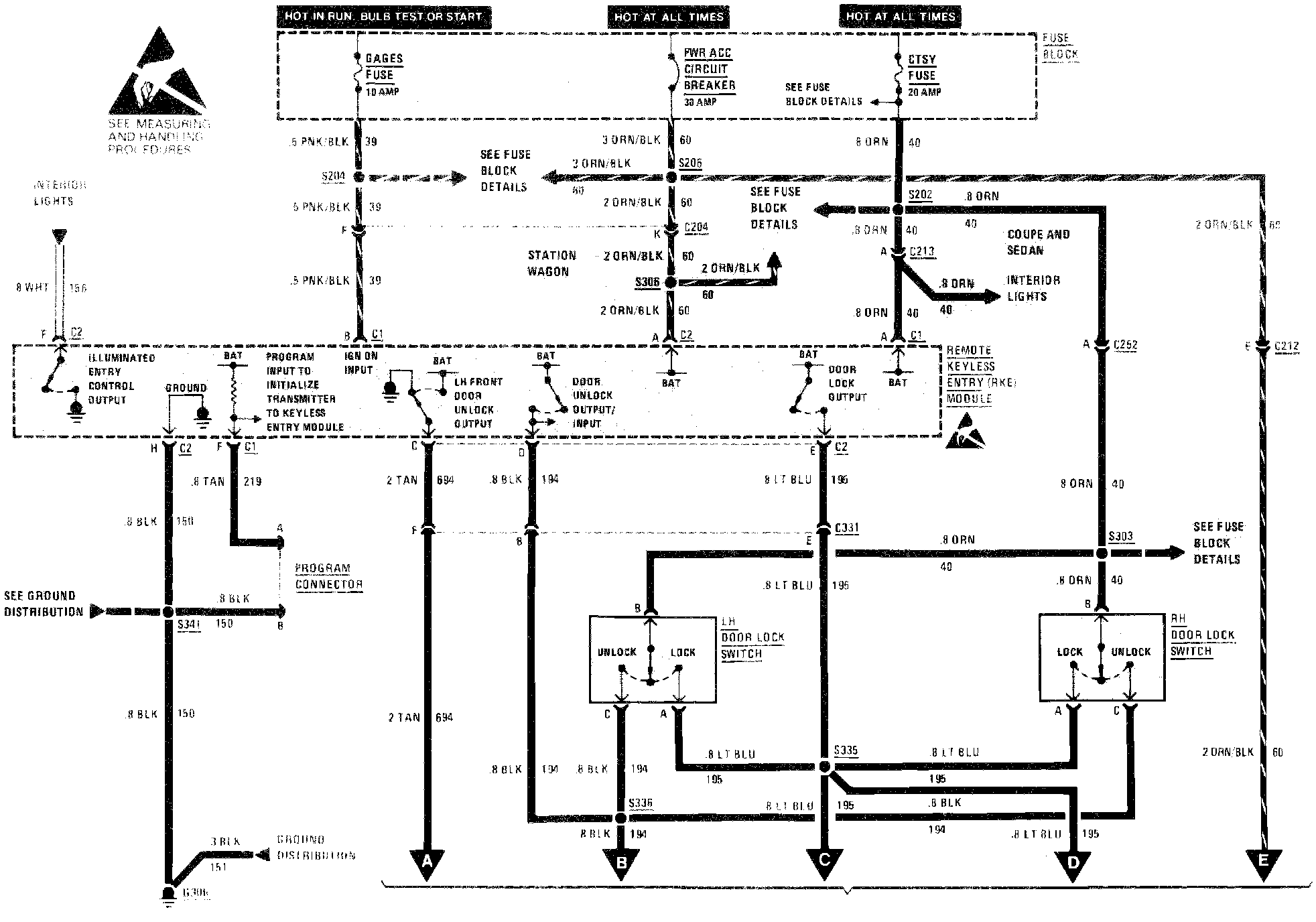

Wiring Diagram With Power Windows:

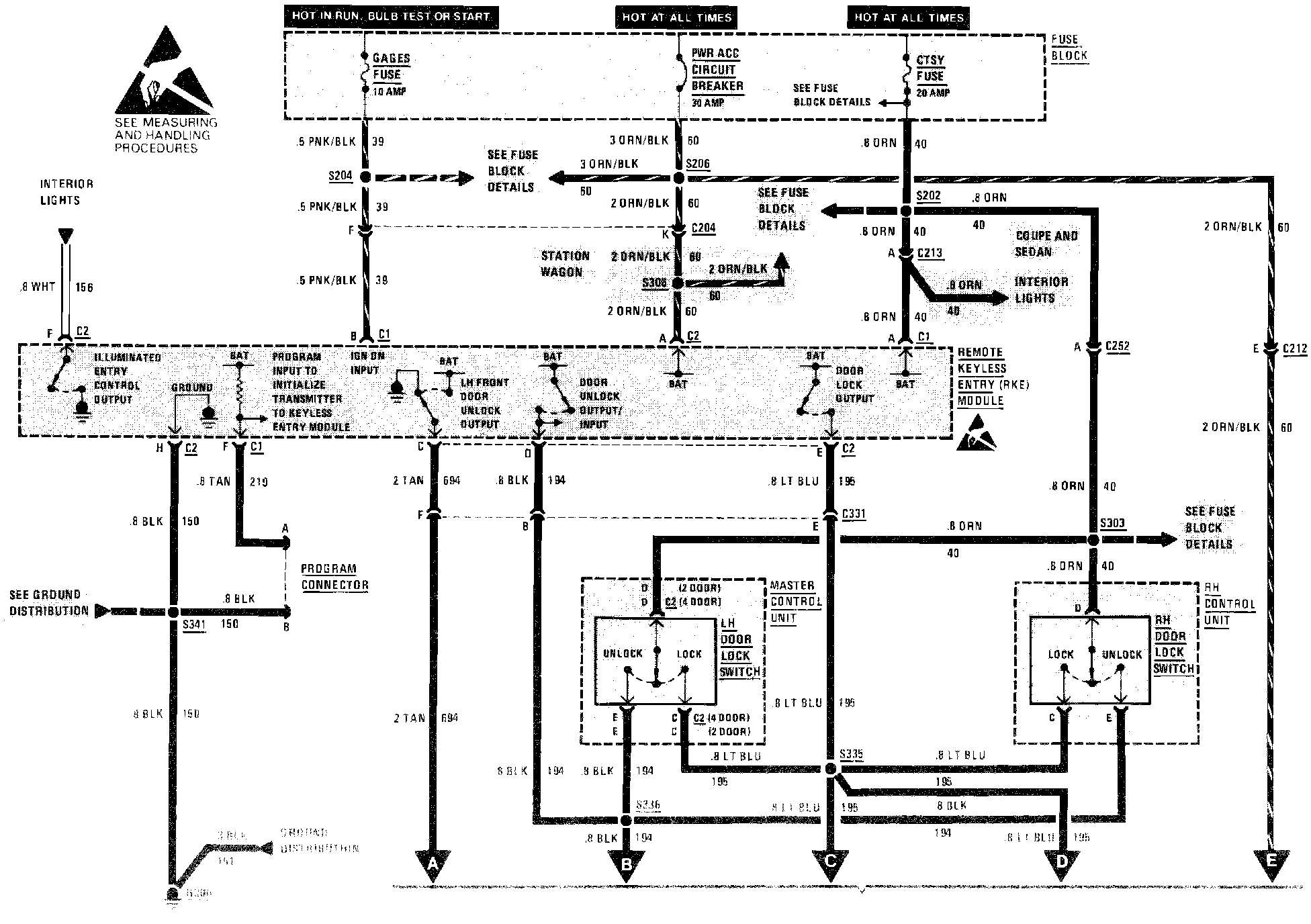

Wiring Diagram Without Power Windows:

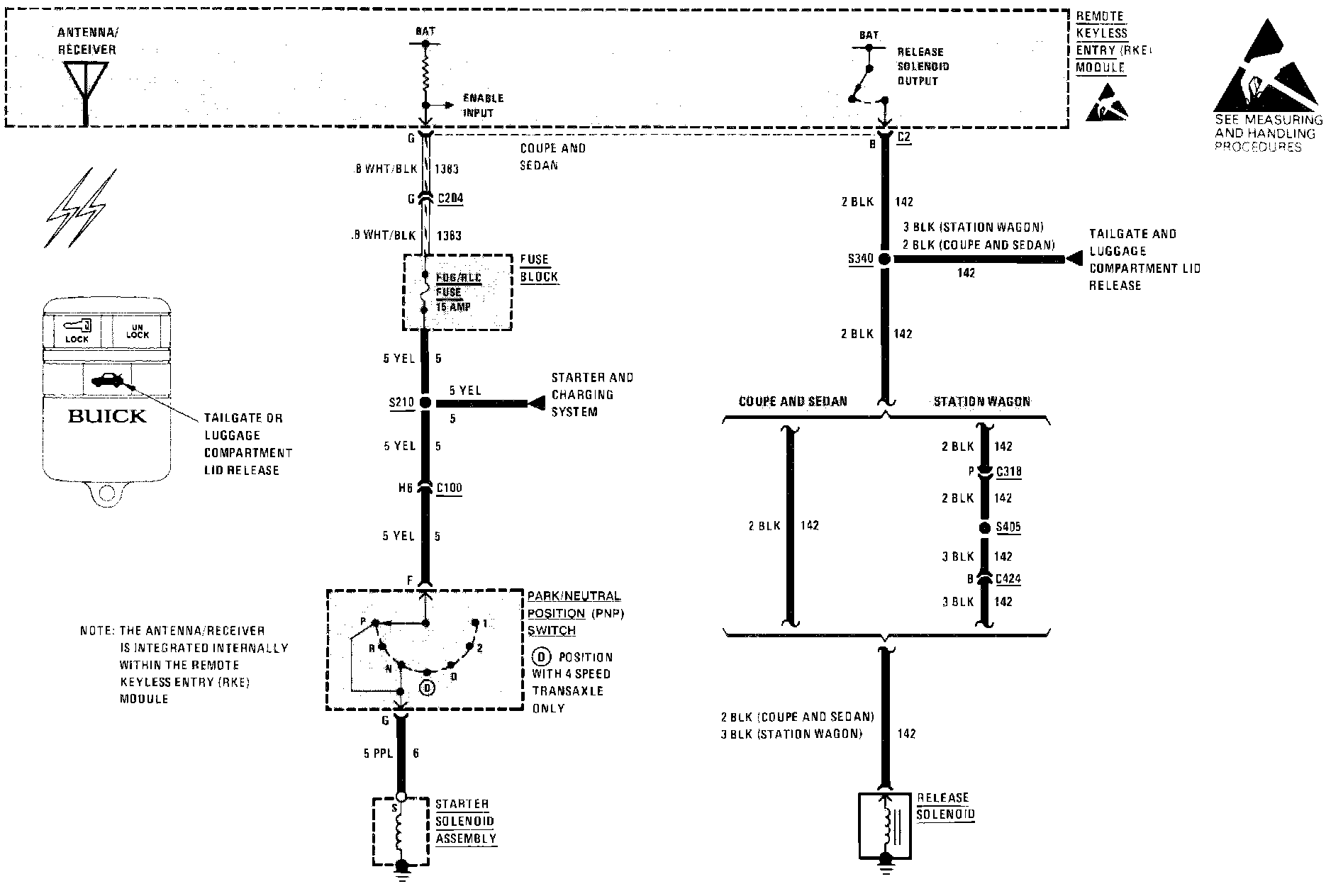

Wiring Diagram:

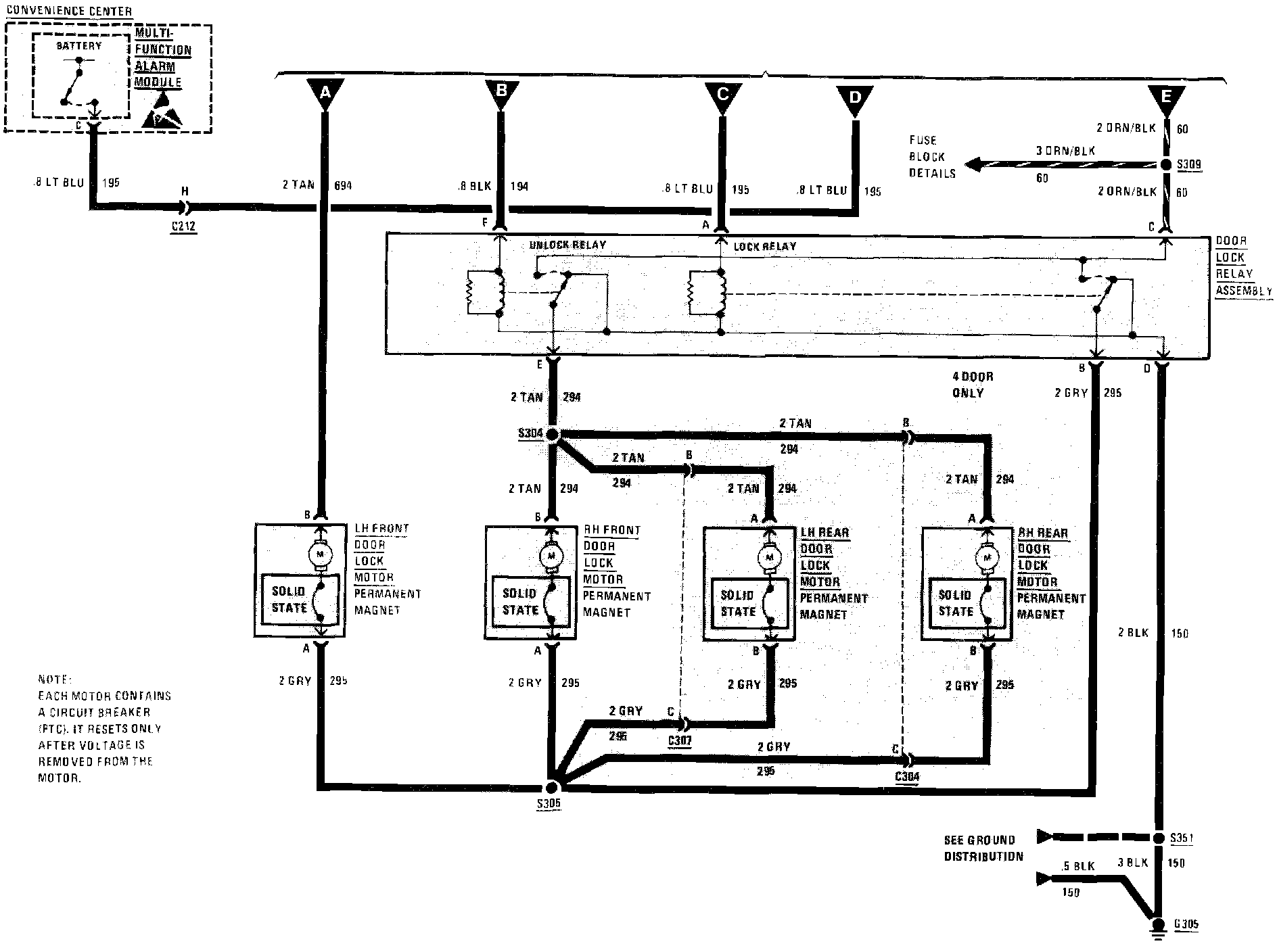

Wiring Diagram:
