Buick
>>
1991
>>
Skylark V6-204 3.3L VIN N FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
Turn Signals

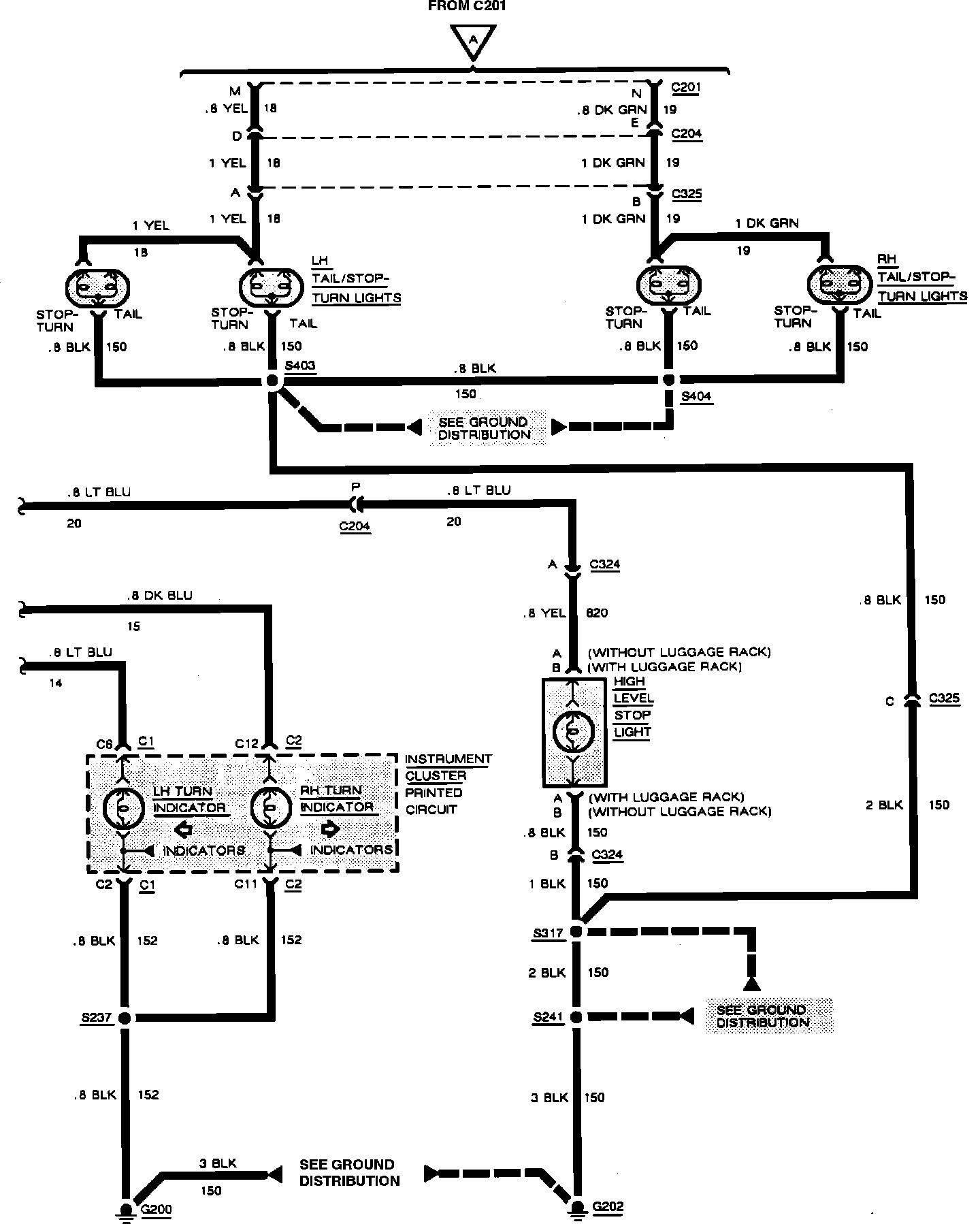

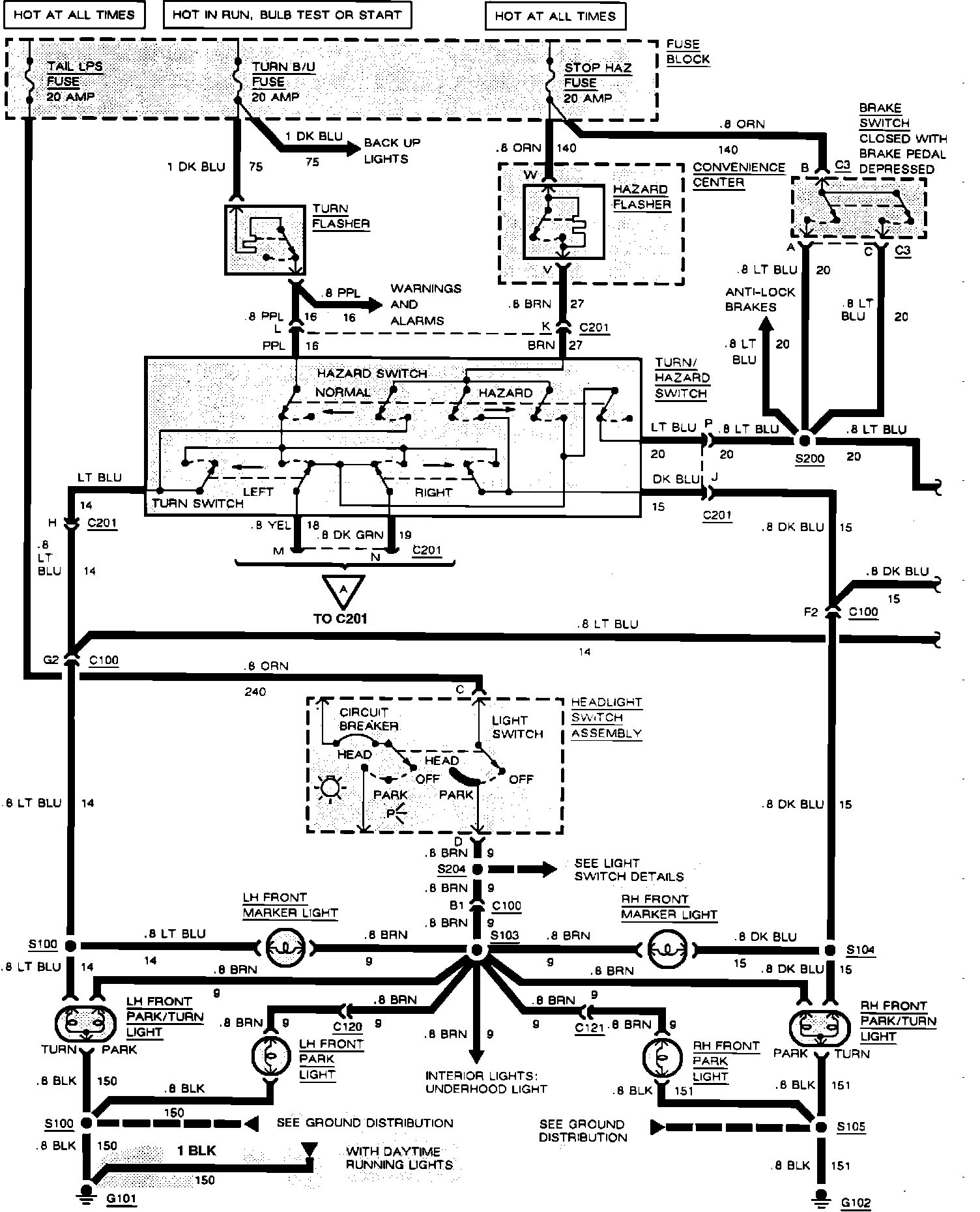

Exterior Lights (Hazard, Front Marker, Park Turn & Stop):
Exterior Lights (Hazard, Front Marker, Park Turn & Stop):
