Buick
>>
1991
>>
Skylark V6-204 3.3L VIN N FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Power & Grounds
Power & Grounds

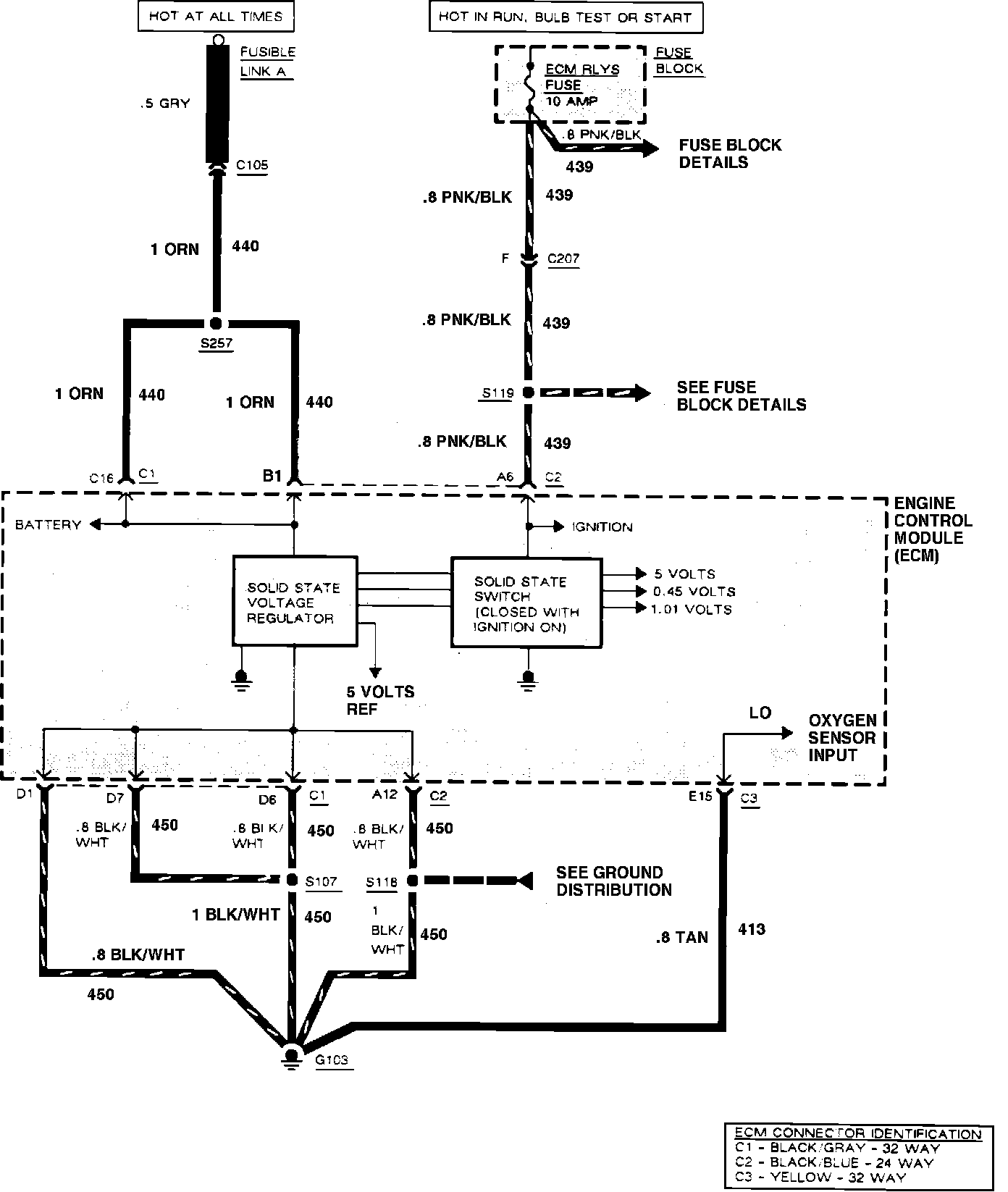

Fuel Injection (Power & Grounds):
