Buick
>>
1991
>>
Riviera V6-231 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
>>
PCM Power & Ground
PCM Power & Ground

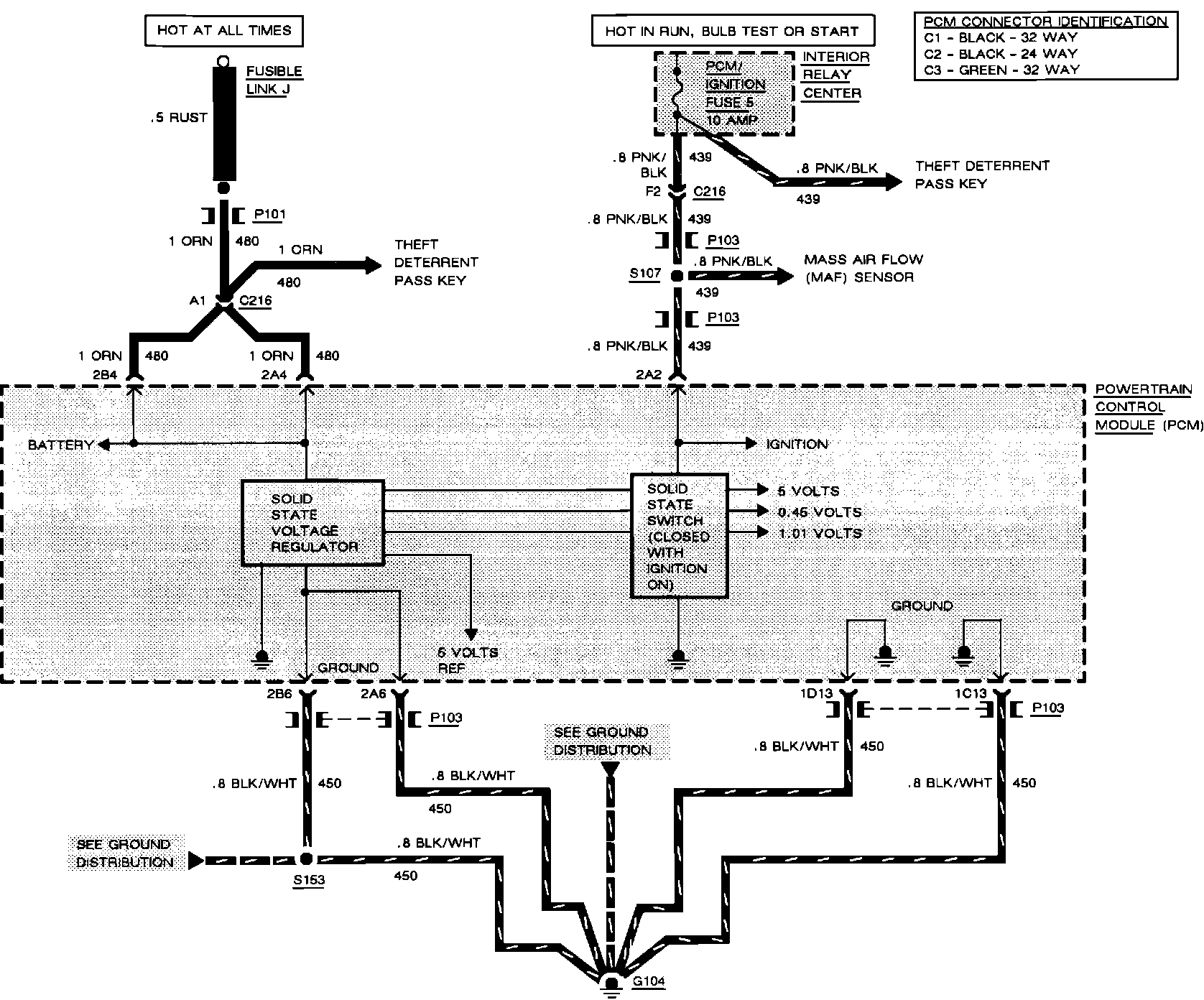

Sequential Fuel Injection: PCM Power & Grounds:
