Home >> Buick >> 1991 >> Riviera V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Electrical Diagrams

Electrical Diagrams

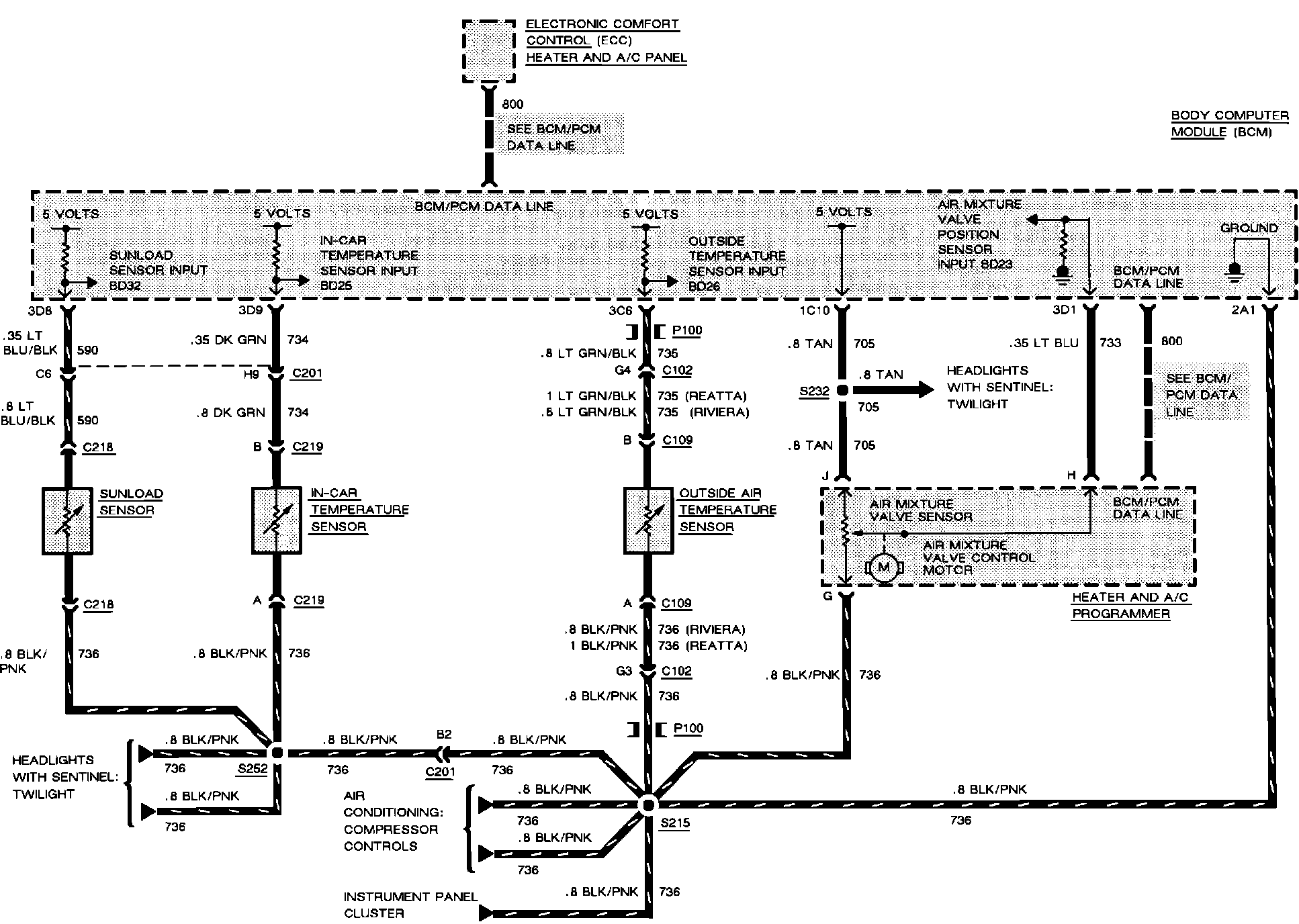

Air Conditioning. Air Delivery & Temperature Controls:

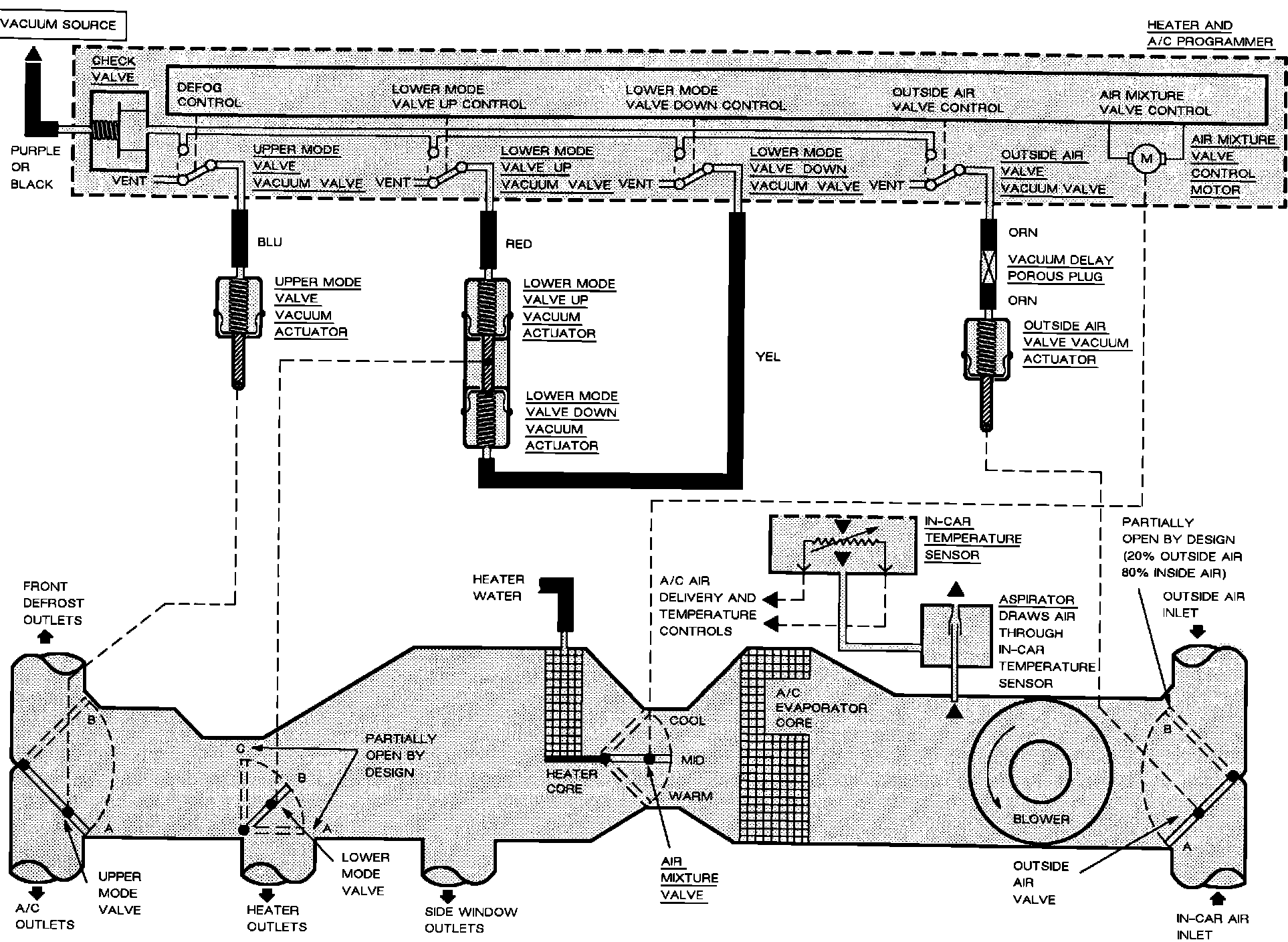

Air Conditioning. Air Delivery & Temperature Controls:
