Riviera V6-231 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Map Light
Map Light

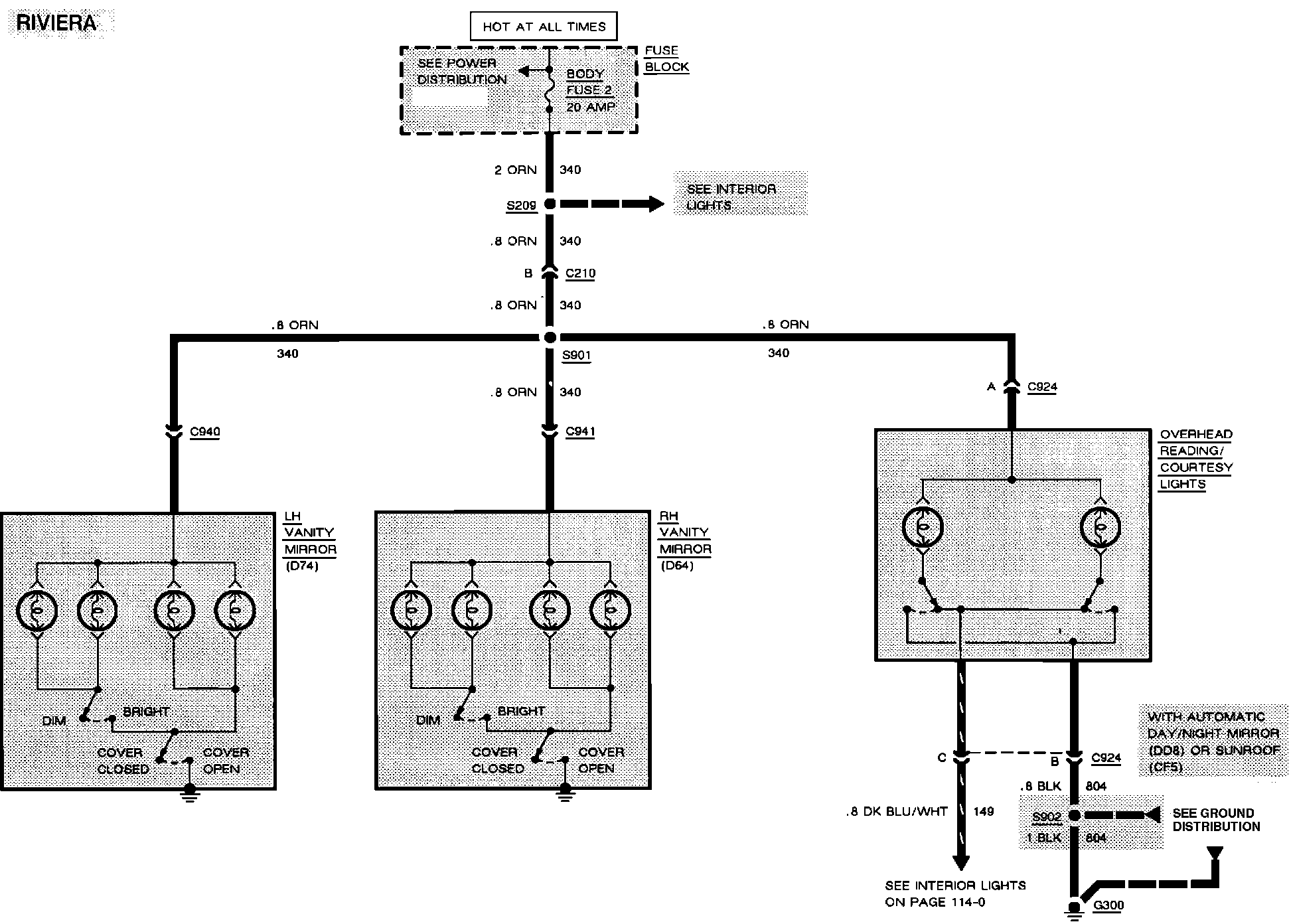

Interior Lights. Illuminated Entry:
Interior Lights. Illuminated Entry:

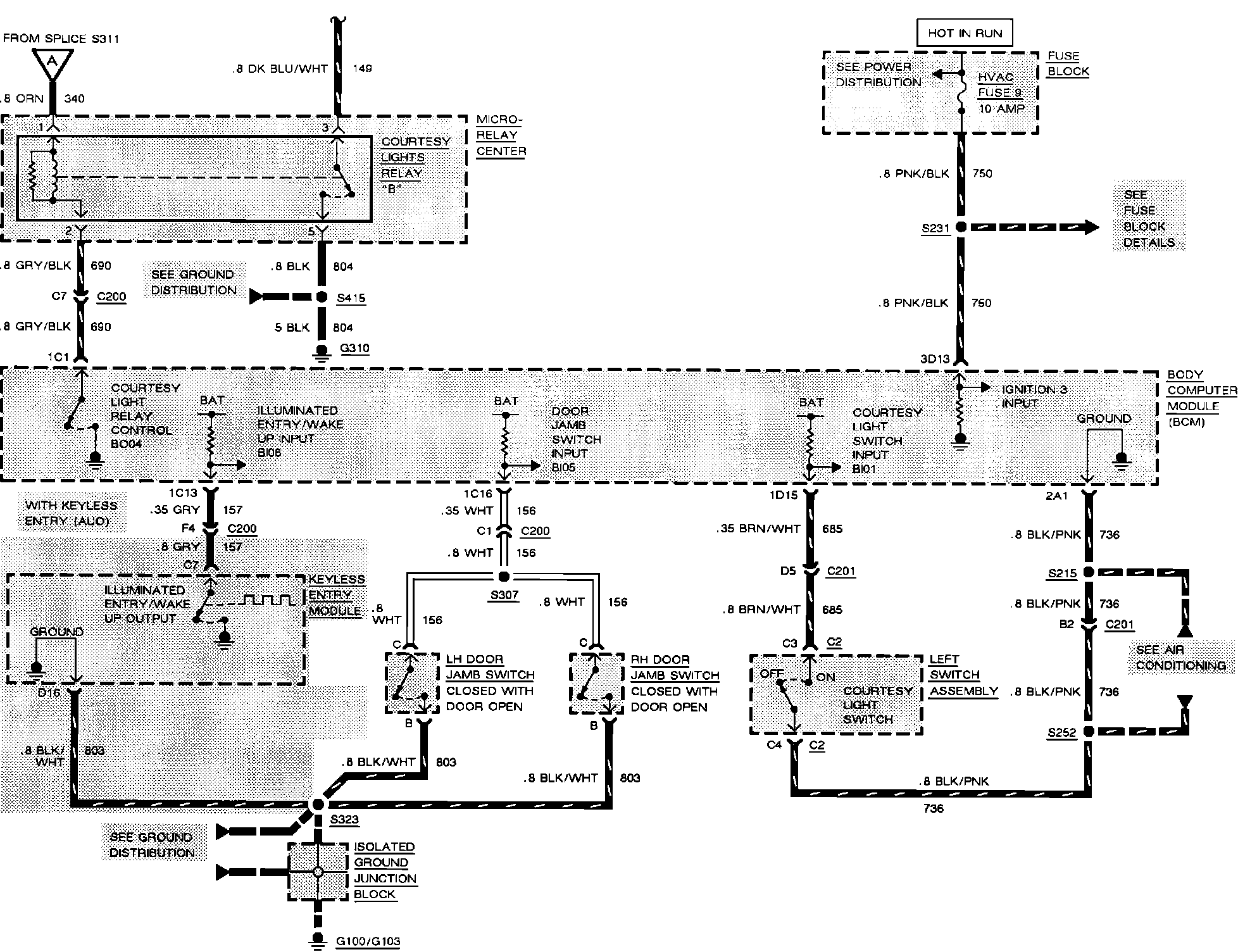

Interior Lights. Illuminated Entry. Vanity Mirrors, Overhead Reading & Courtesy Lights:
