Power Steering Hose

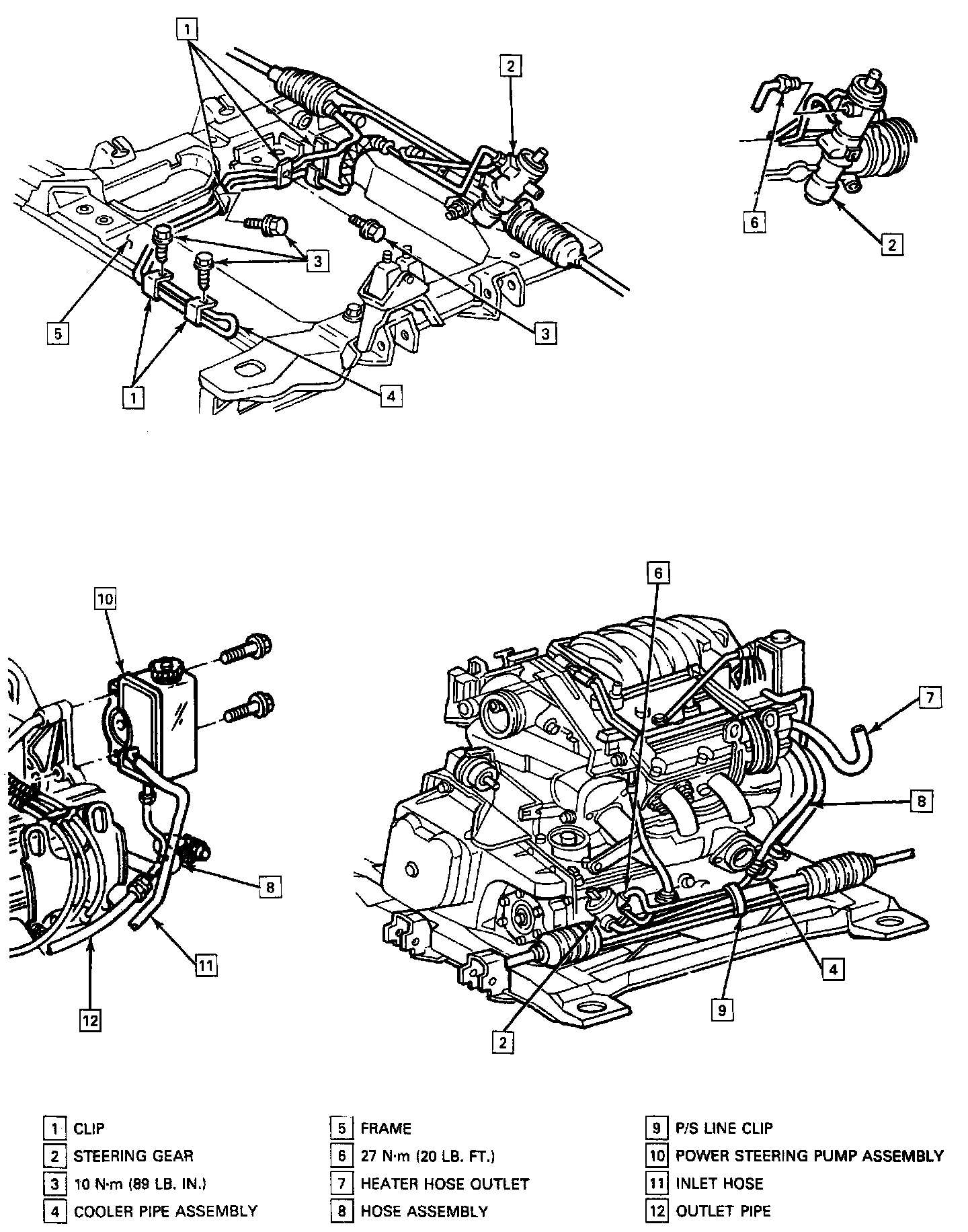

Power Steering Hose/Pipe Routing:

Remove or Disconnect

^ Raise vehicle and suitably support.
^ Place drain pan under vehicle to catch any fluid that may drain.
^ Loosen clamps from reservoir and cooler tube (if used).
^ Hose.

Install or Connect

^ Hose.
^ Tighten clamps to reservoir and cooler tube (if used).
^ Remove drain pan from under vehicle.
^ Lower vehicle.
^ Fill system.
^ Bleed the system.
