Home
>>
Buick
>>
1991
>>
Regal V6-231 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Air Delivery and Temperature Controls
>>
With Automatic Controls
With Automatic Controls

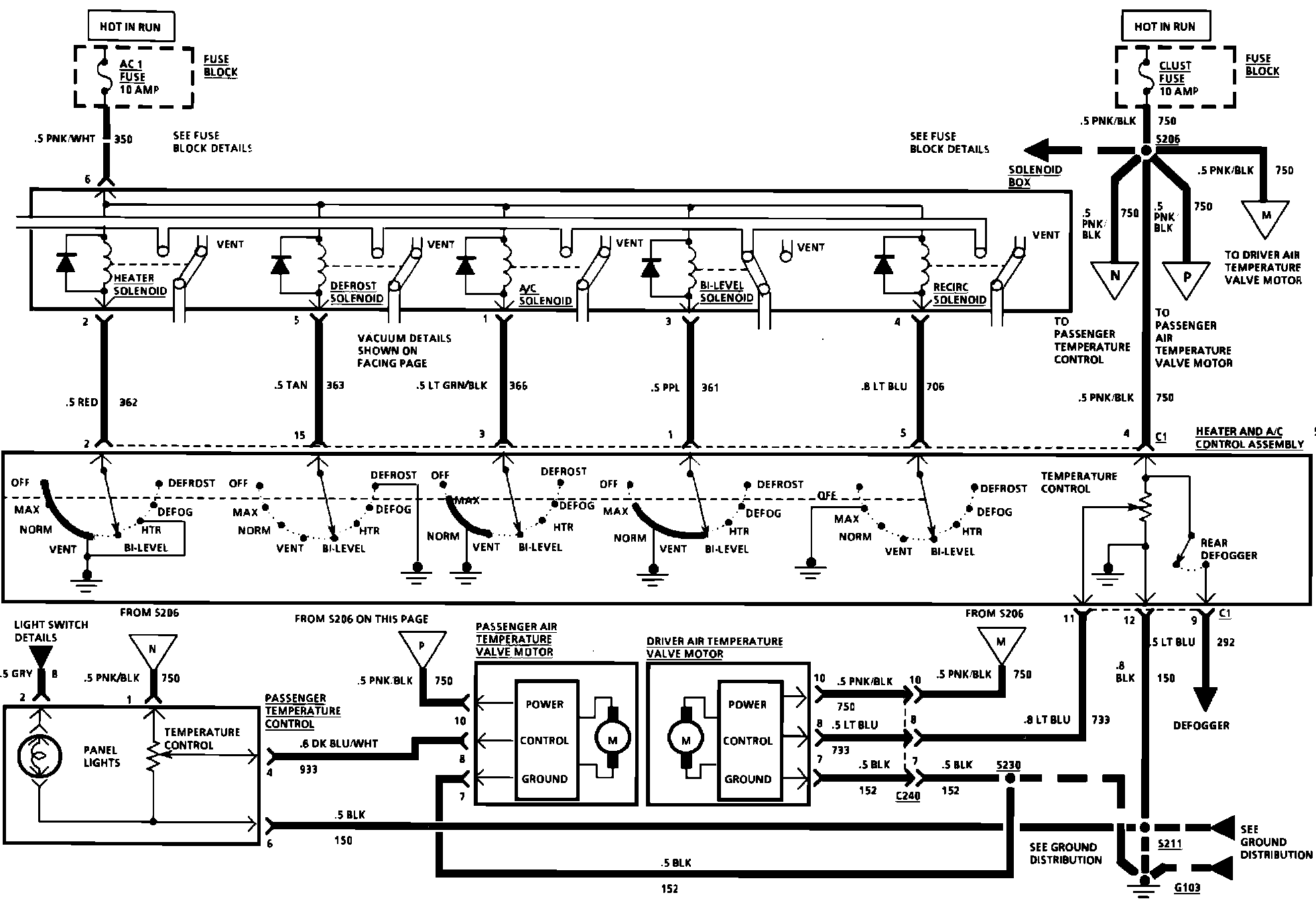

Air Conditioning (Air Delivery & Temperature Controls) W/Automatic Controls:
