Buick
>>
1991
>>
Regal V6-231 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

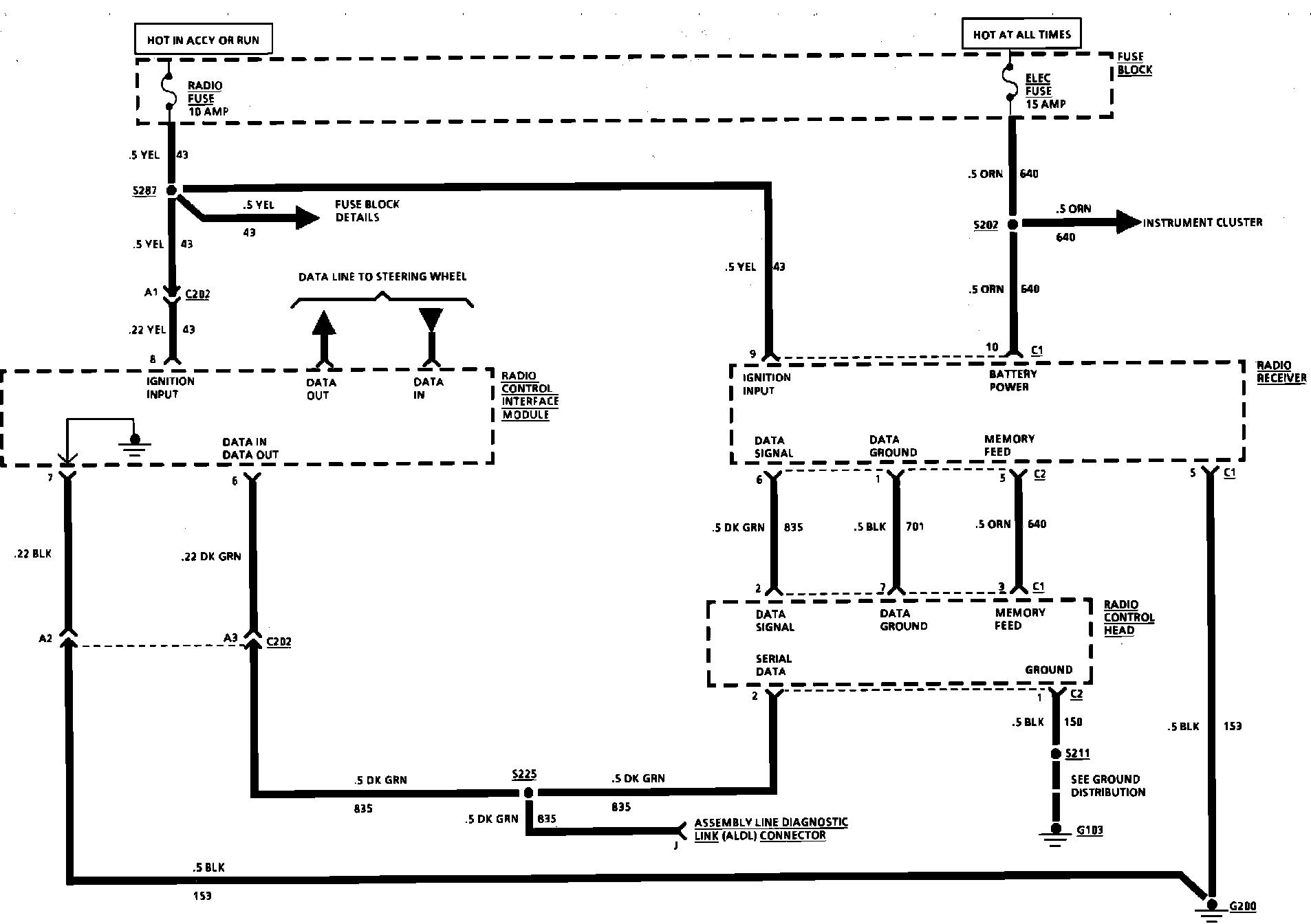

Entertainment & Comfort Bus
Entertainment & Comfort Bus

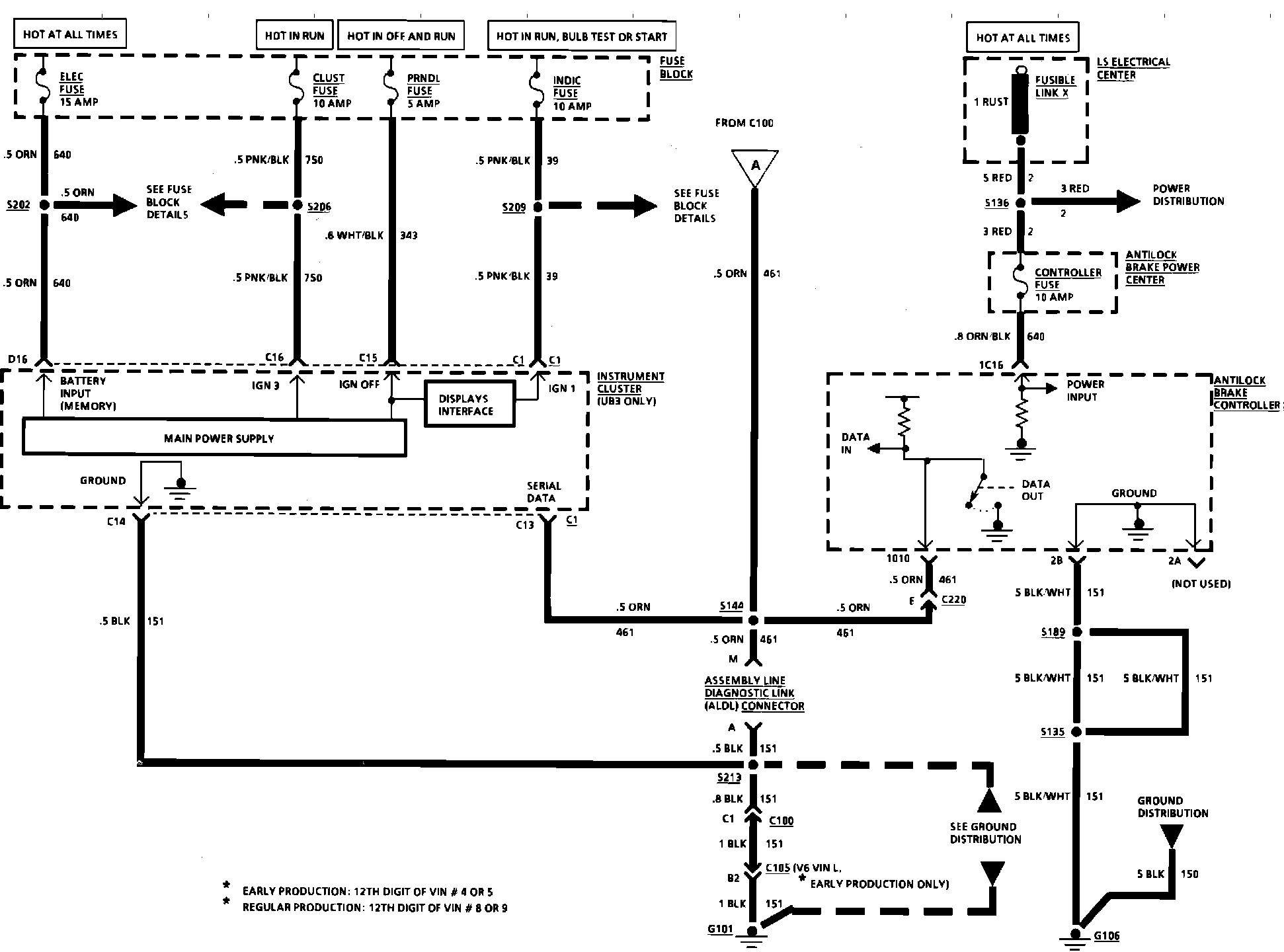

Data Line (Entertainment Bus):
Data Line (Entertainment Bus):
