System Diagram
System Diagram

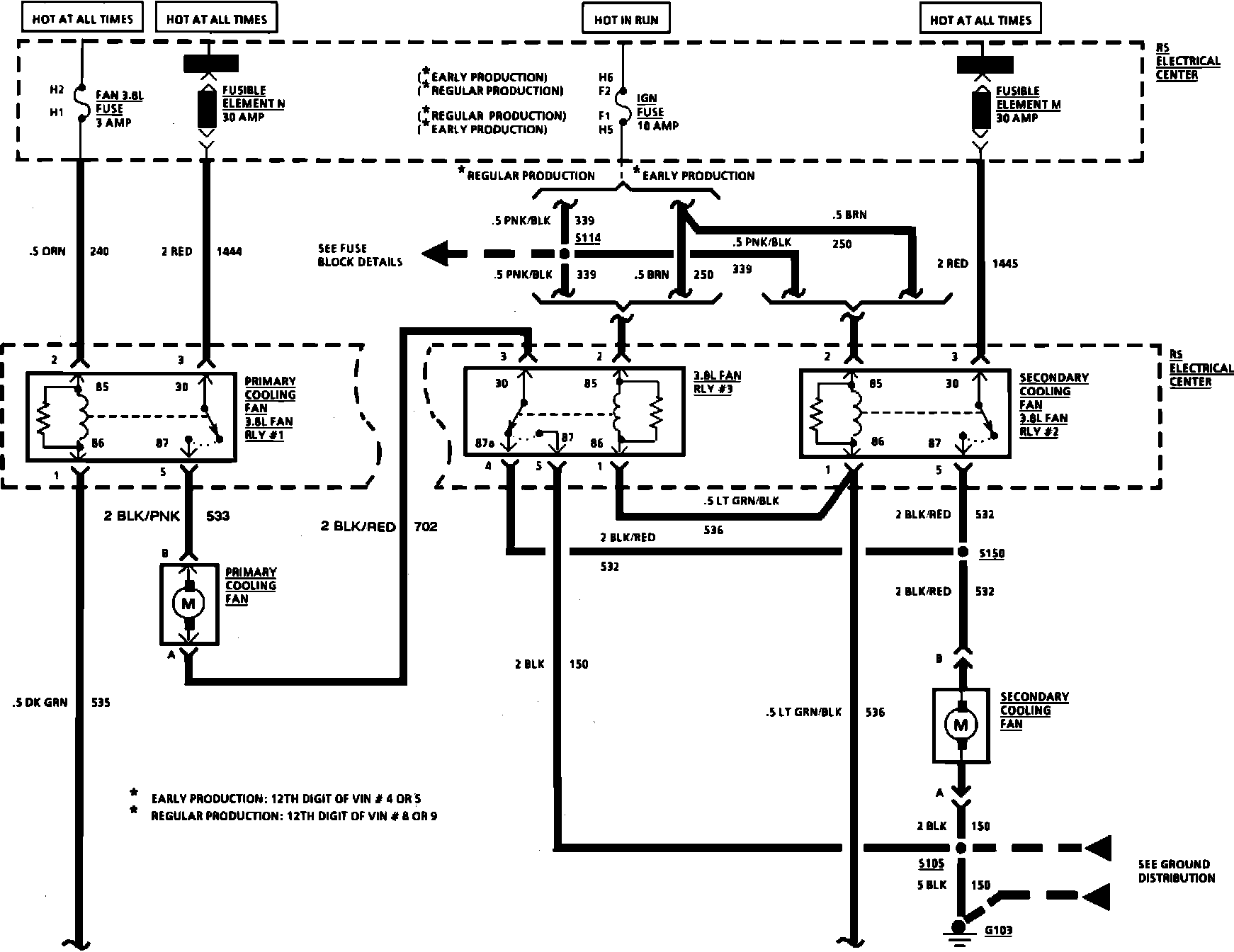

Fig. 40 Coolant Fan Wiring Circuit (Part 1 Of 2). 1991 Regal w/3.8L/V6-231:

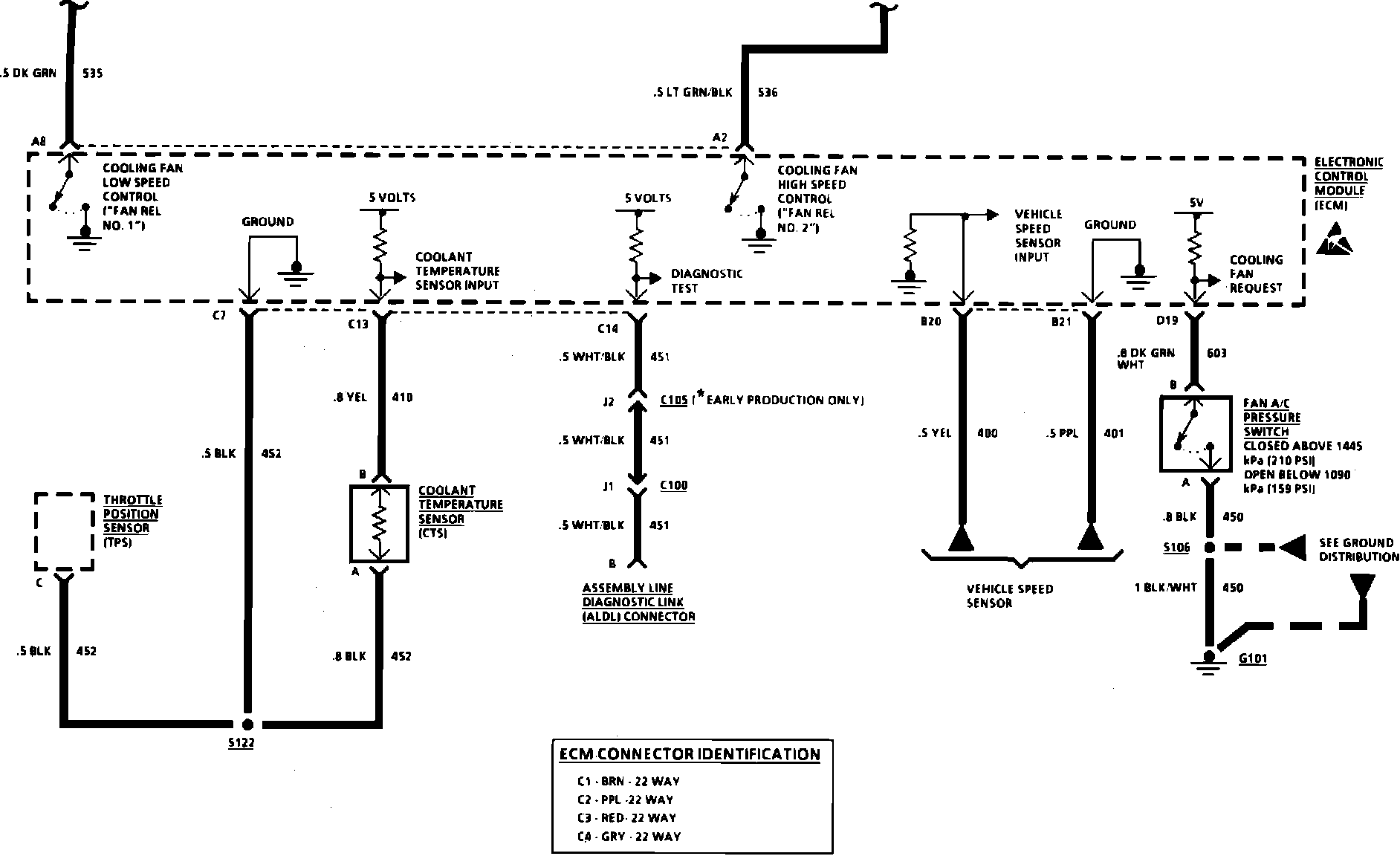

Fig. 40 Coolant Fan Wiring Circuit (Part 2 Of 2). 1991 Regal w/3.8L/V6-231:
