Generator - Revised Input Test D

9223buick05

Bulletin 91-8-3

Date Oct. '90

Ref. No. 91-029-8

Corp. Ref. No. 008119


SUBJECT:
ESM UPDATE/SECTION - POWERTRAIN STARTING AND CHARGING REVISED GENERATOR INPUT TEST D

MODELS AFFECTED:
1991 PARK AVENUE/PARK AVENUE ULTRA

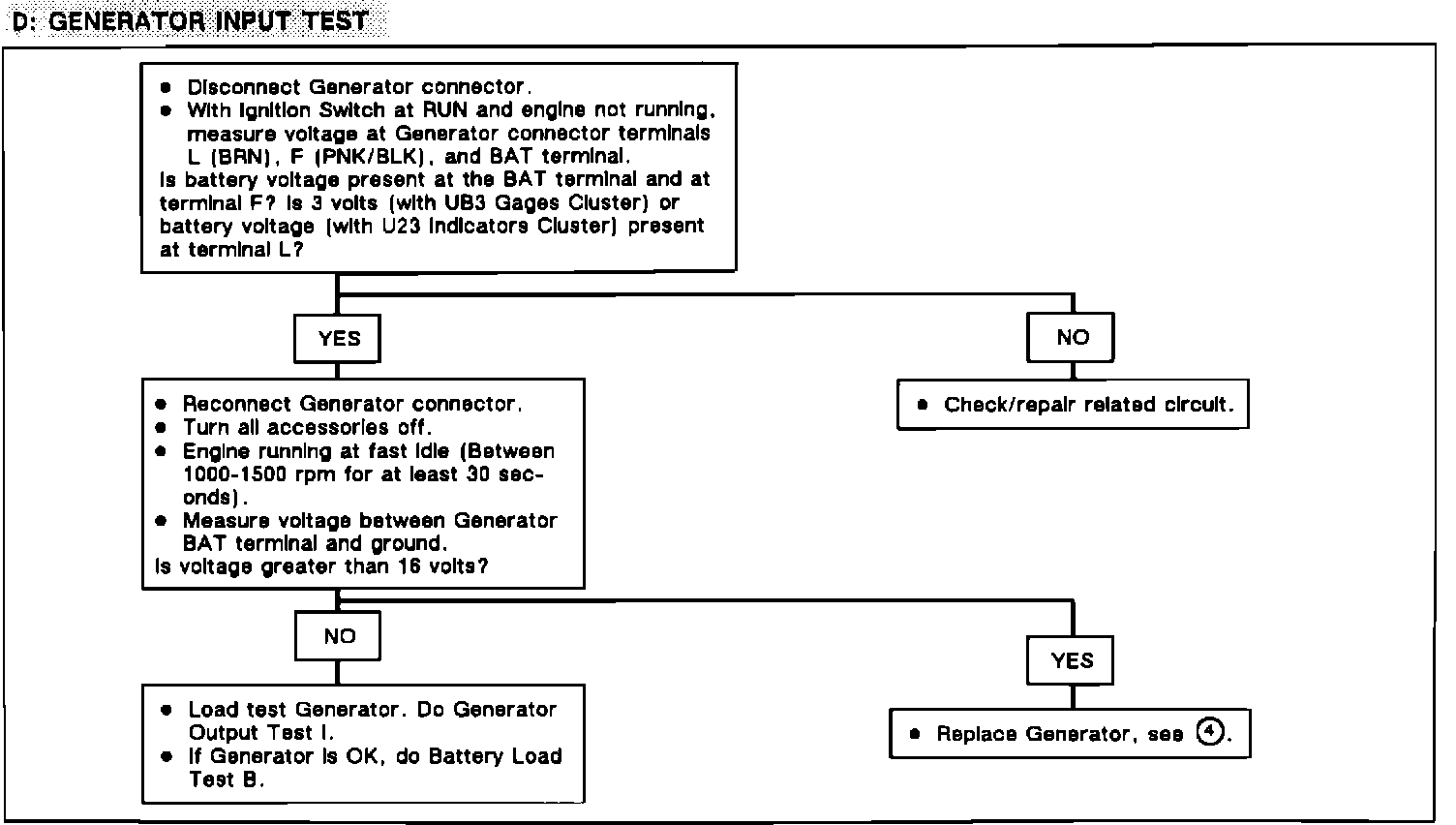

The following procedure D, Generator Input Test, Page 51, has been updated for testing the generator on vehicles equipped with Gage Cluster (UB3) for correct diagnosis.

Please update your respective Electrical Systems Manuals accordingly.
