Test D, DTC 23 Set

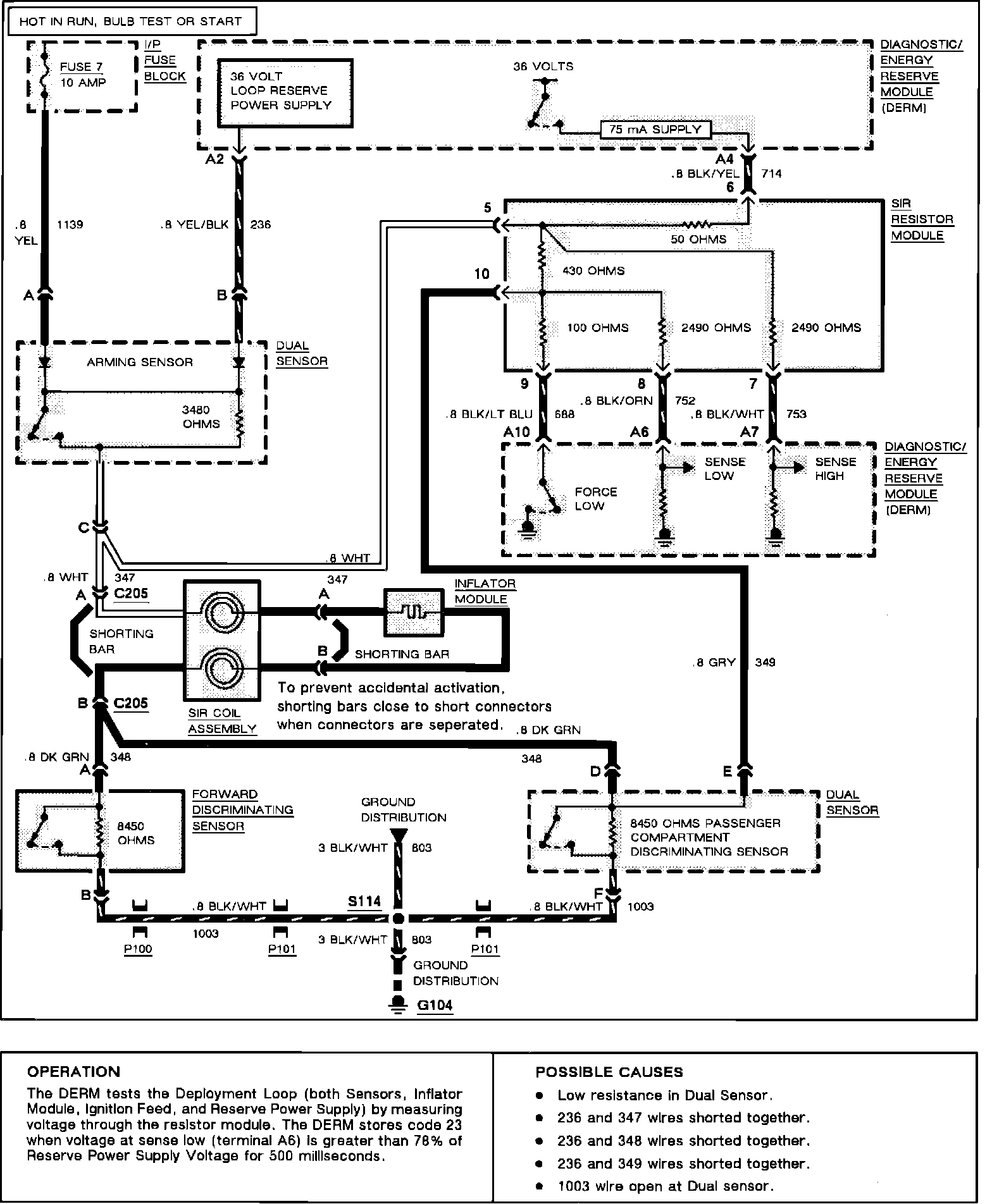

Fig. 295 Diagnosis D, Code 23 Set (Part 1 Of 2).:

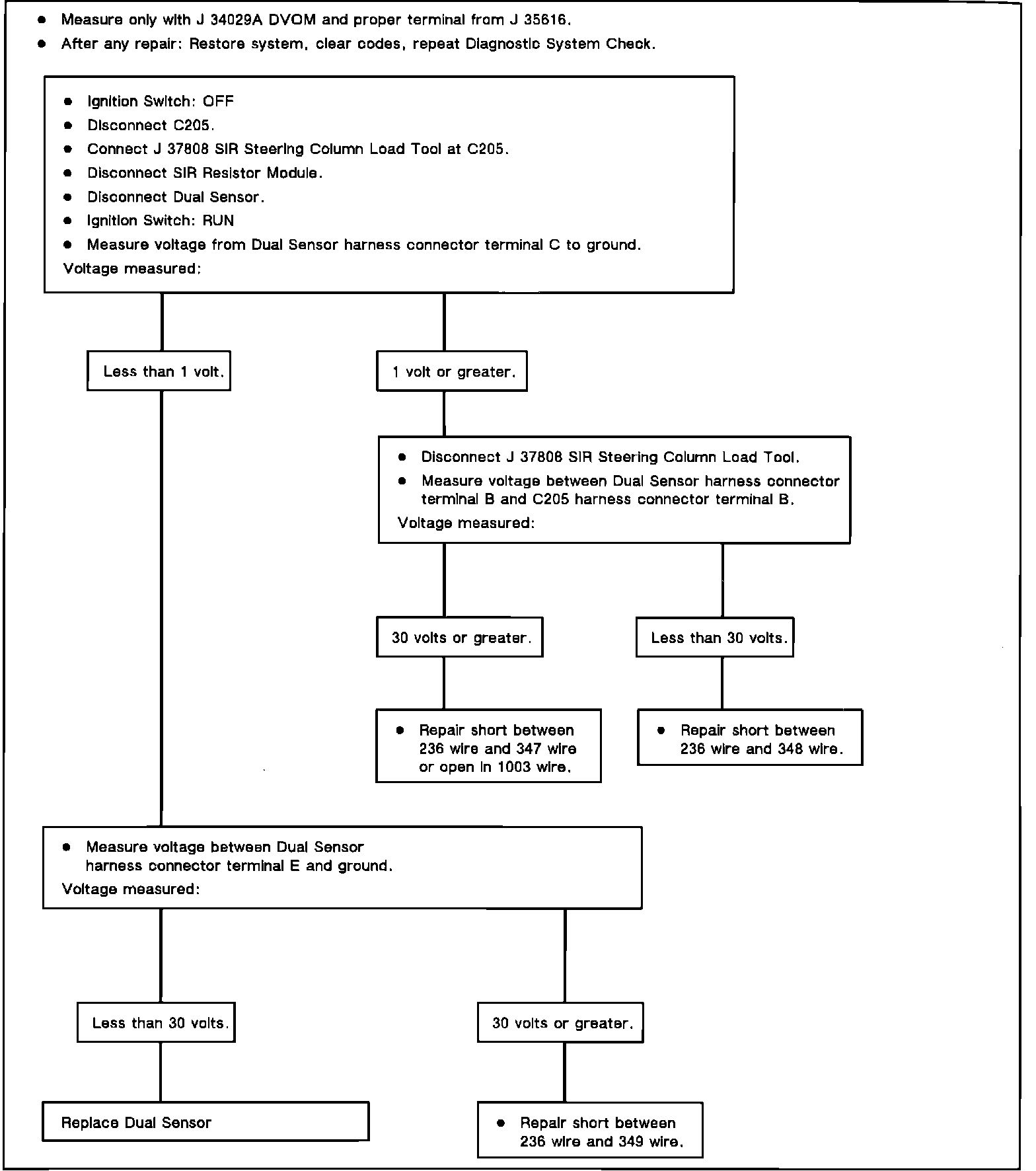

Fig. 295 Diagnosis D, Code 23 Set (Part 2 Of 2).:
