Home >> Buick >> 1991 >> Park Avenue V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Code Tests >> Test C, DTC 21 and/or 22 Set

Test C, DTC 21 and/or 22 Set

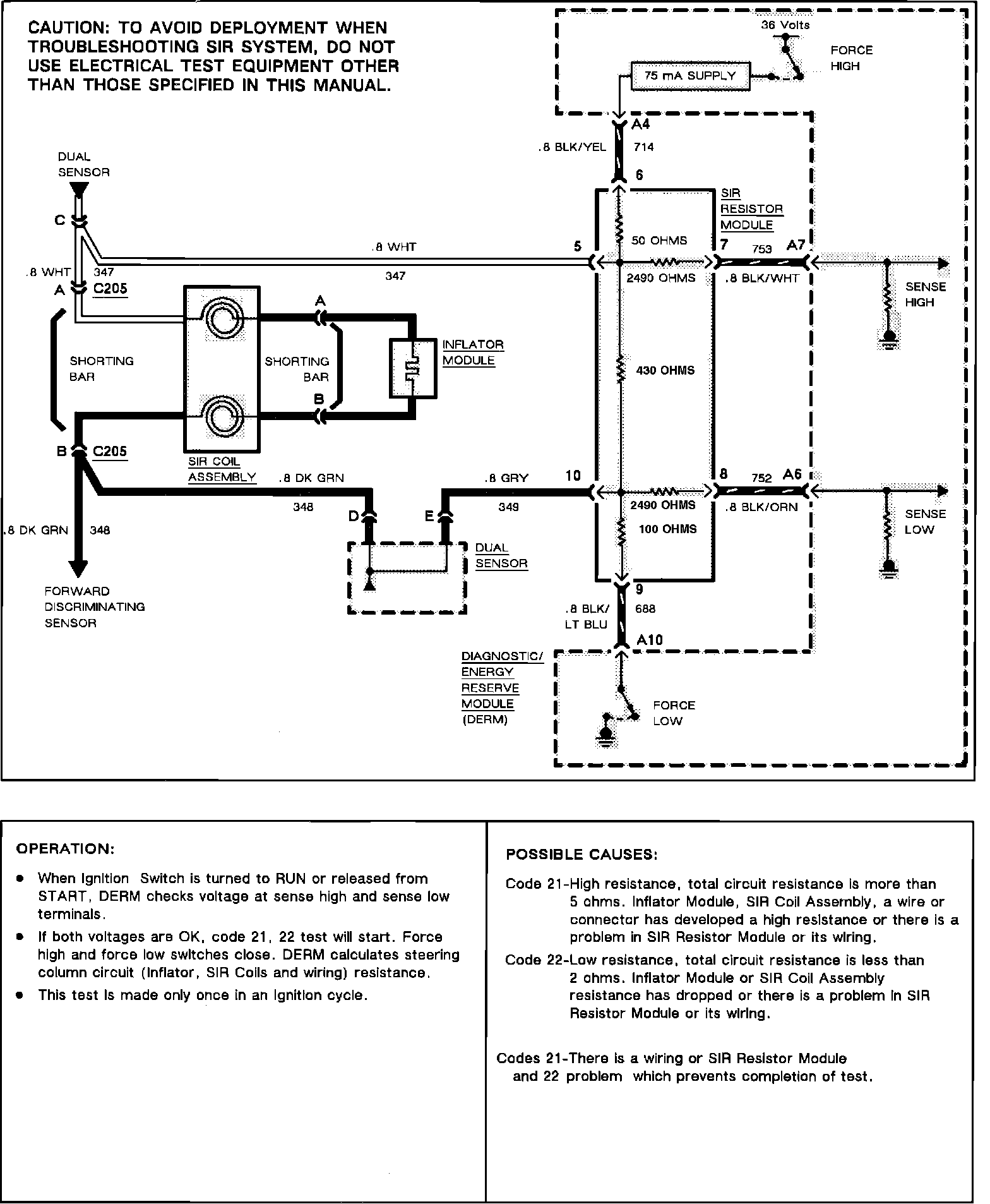

Fig. 294 Diagnosis C, Code 21 And/or 22 Set (Part 1 Of 2).:

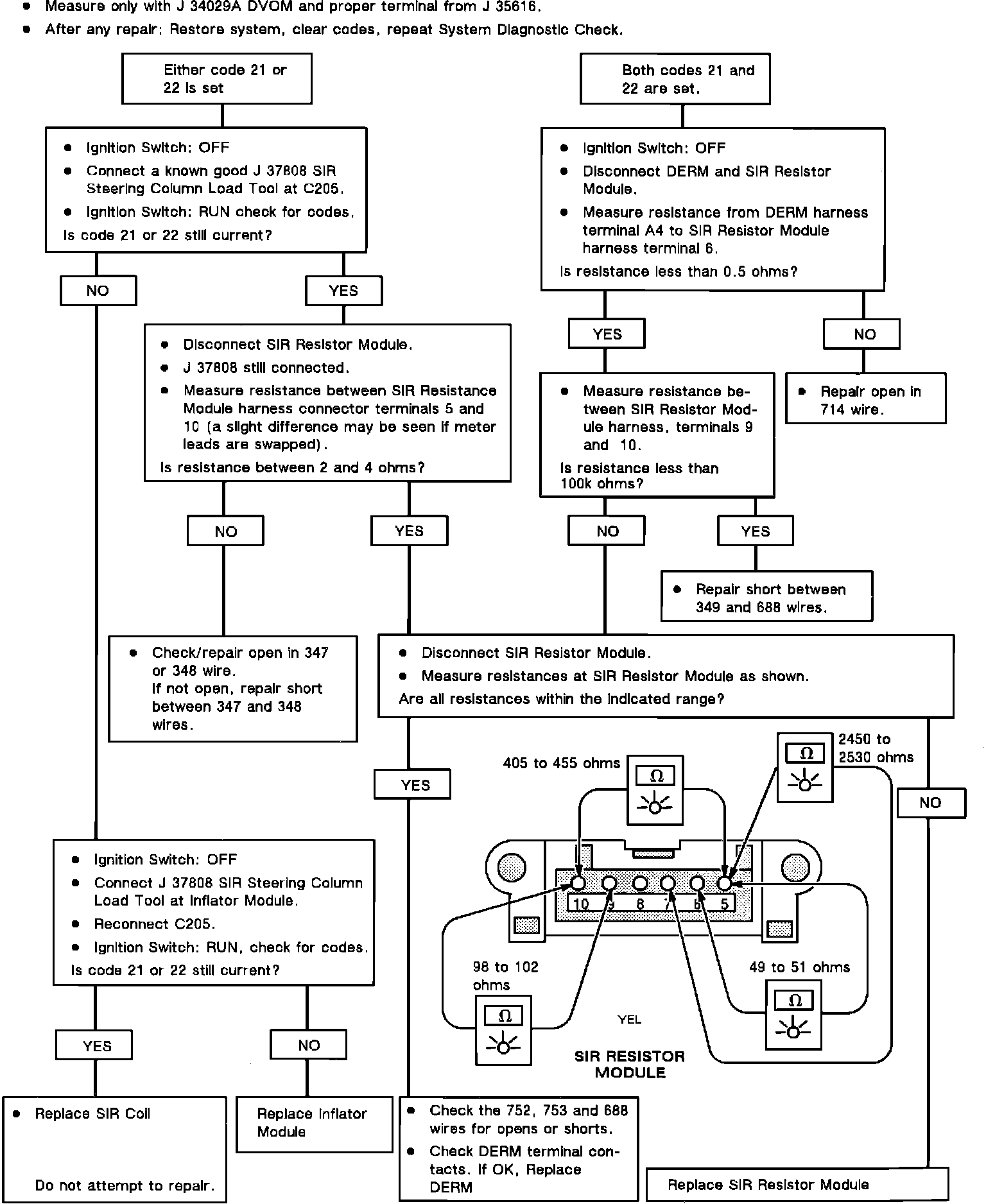

Fig. 294 Diagnosis C, Code 21 And/or 22 Set (Part 2 Of 2).:
