Home >> Buick >> 1991 >> Park Avenue V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Chart F: Pump Motor Circuit Test

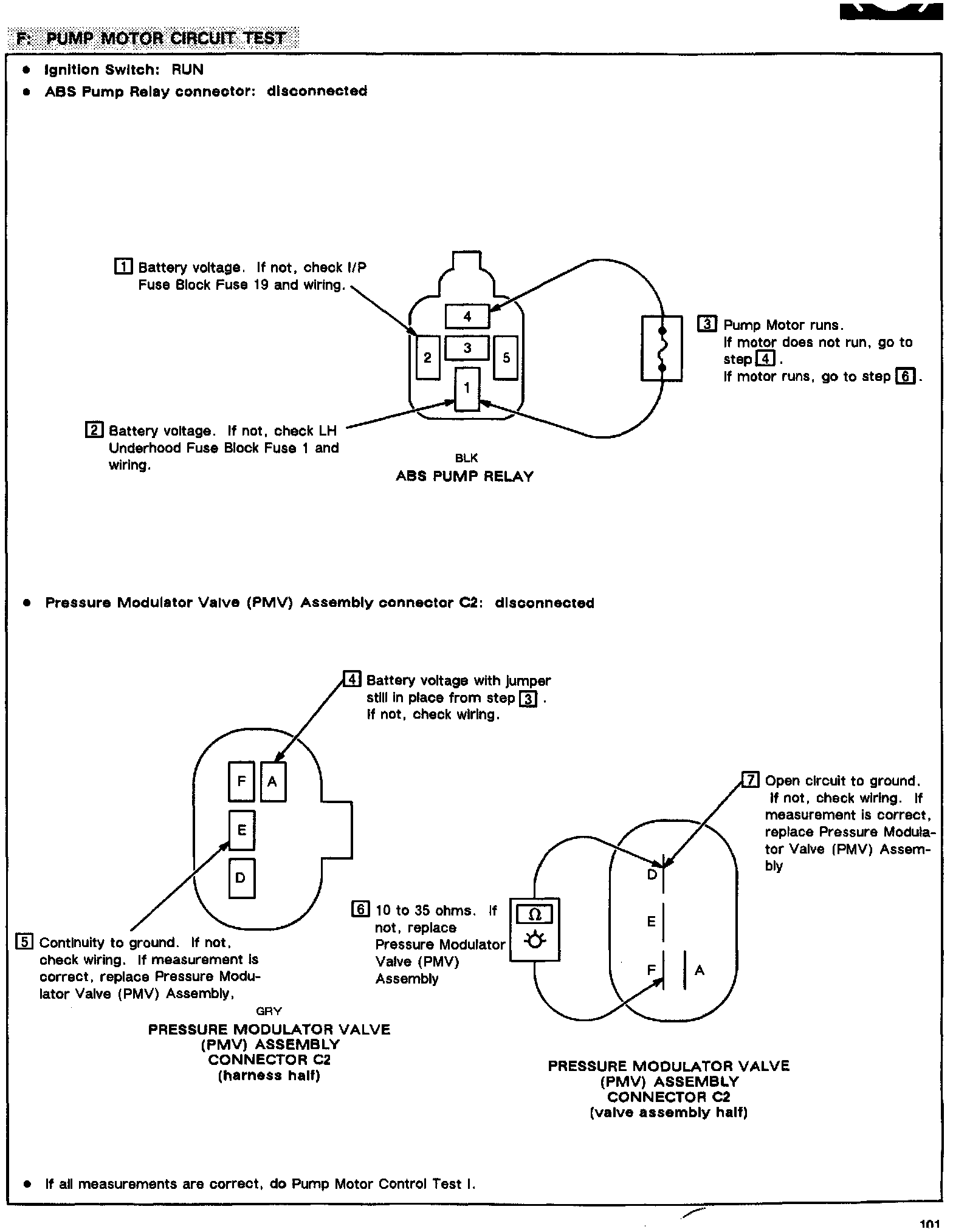

Chart F: Pump Motor Circuit Test

Chart F:



Wiring Diagram:
