Electrical - Manual Updates & Late Production Model Info
Bulletin: 92-8-26Date: Aug.'92
Ref.No.: 92-264-8
Corp.Ref.No.: 208110
SUBJECT:
ELECTRICAL SYSTEMS/SERVICE MANUAL UPDATE - ELECTRICAL DIAGNOSTIC REVISIONS
MODELS AFFECTED:
1992 LESABRE
1992 PARK AVENUE/ULTRA
This bulletin provides LATE PRODUCTION AND DESIGN INFORMATION ranging from wire gauge and color changes to changing connector pinout identification and wiring routing changes.
The information reflects current changes and revisions to the Electrical Systems/Service Manual Diagnostic Procedures.
Please update your Service Manual accordingly.

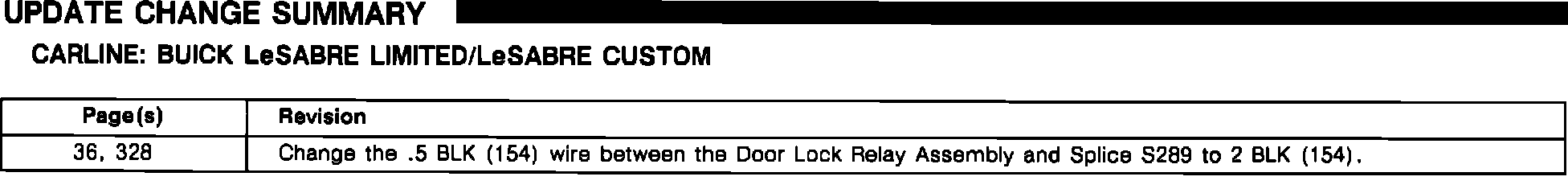

Update Change Summary

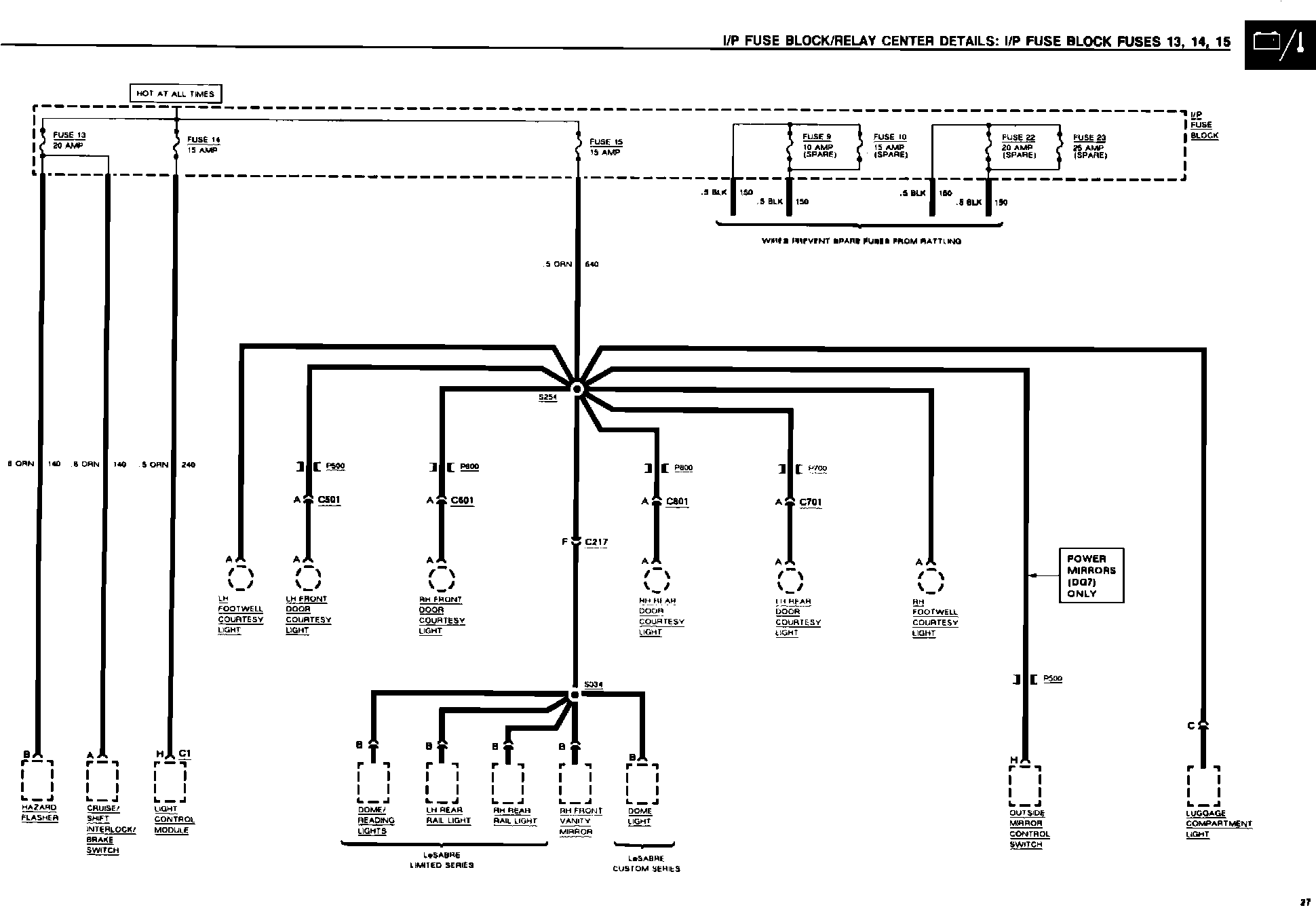

eSabre Fuse Block Fuses 13, 14, 15

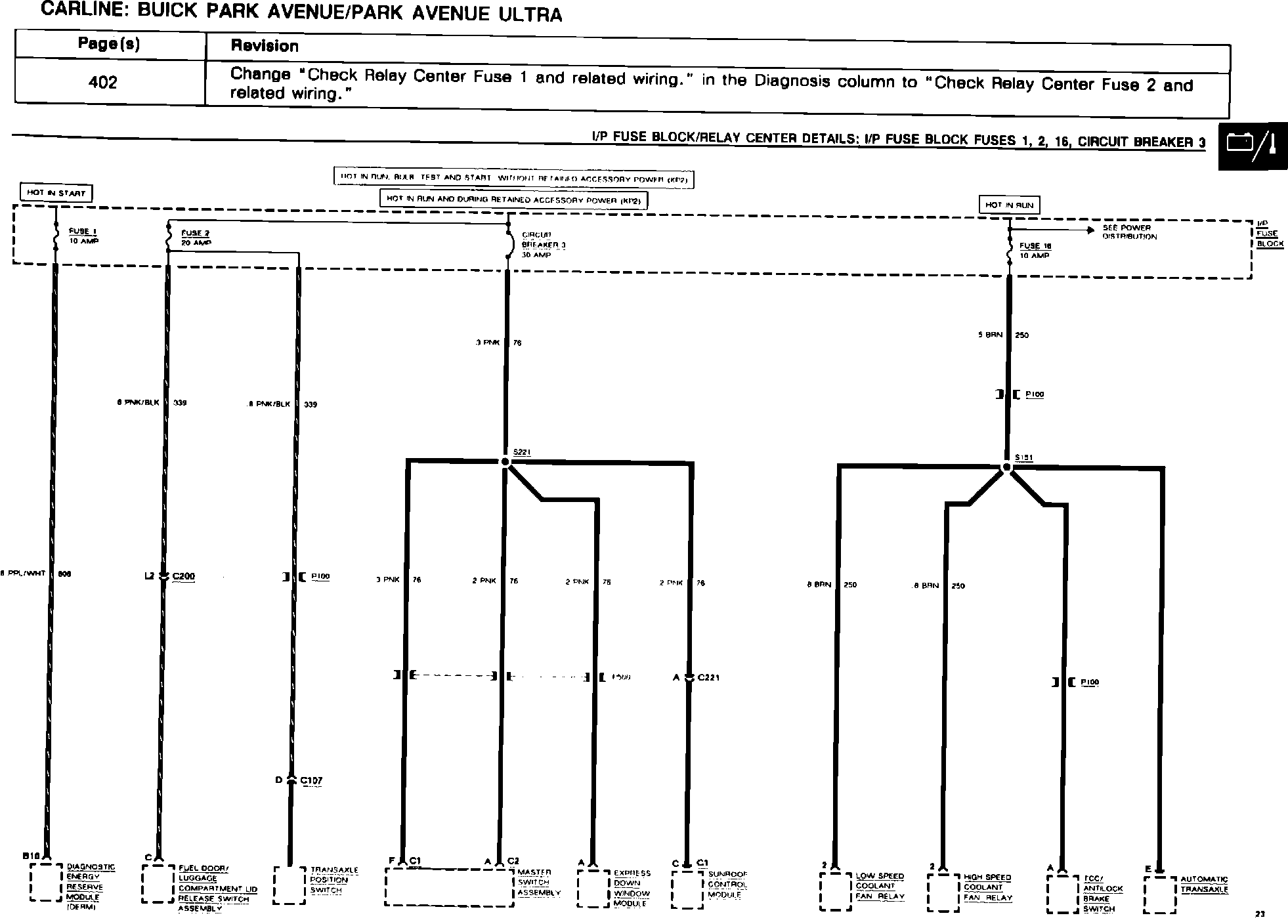

I/P Fuse Block Fuses 1, 2, 16, Circuit Breaker 3

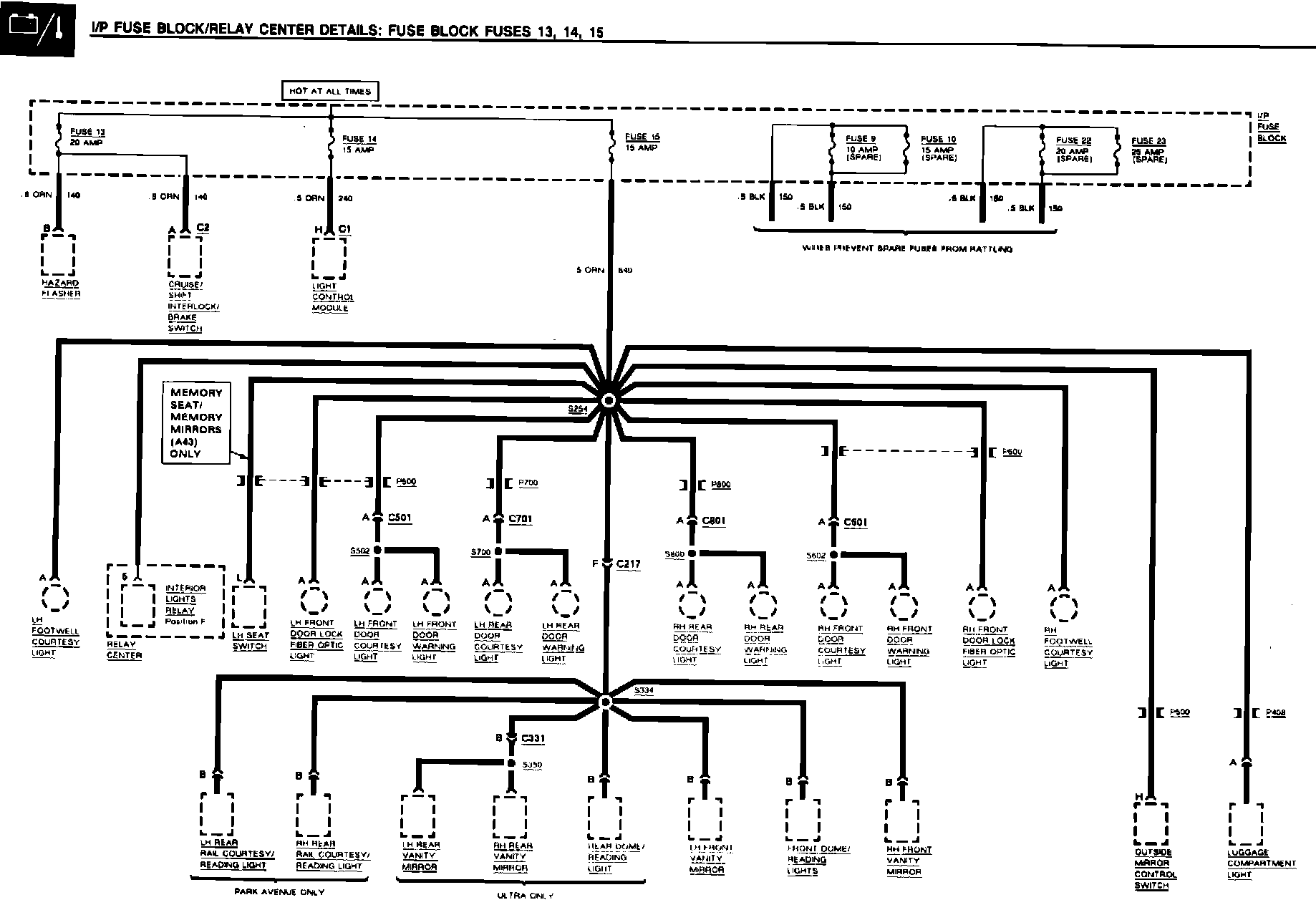

Park Ave & Ultra Fuse Block Fuses 13, 14, 15

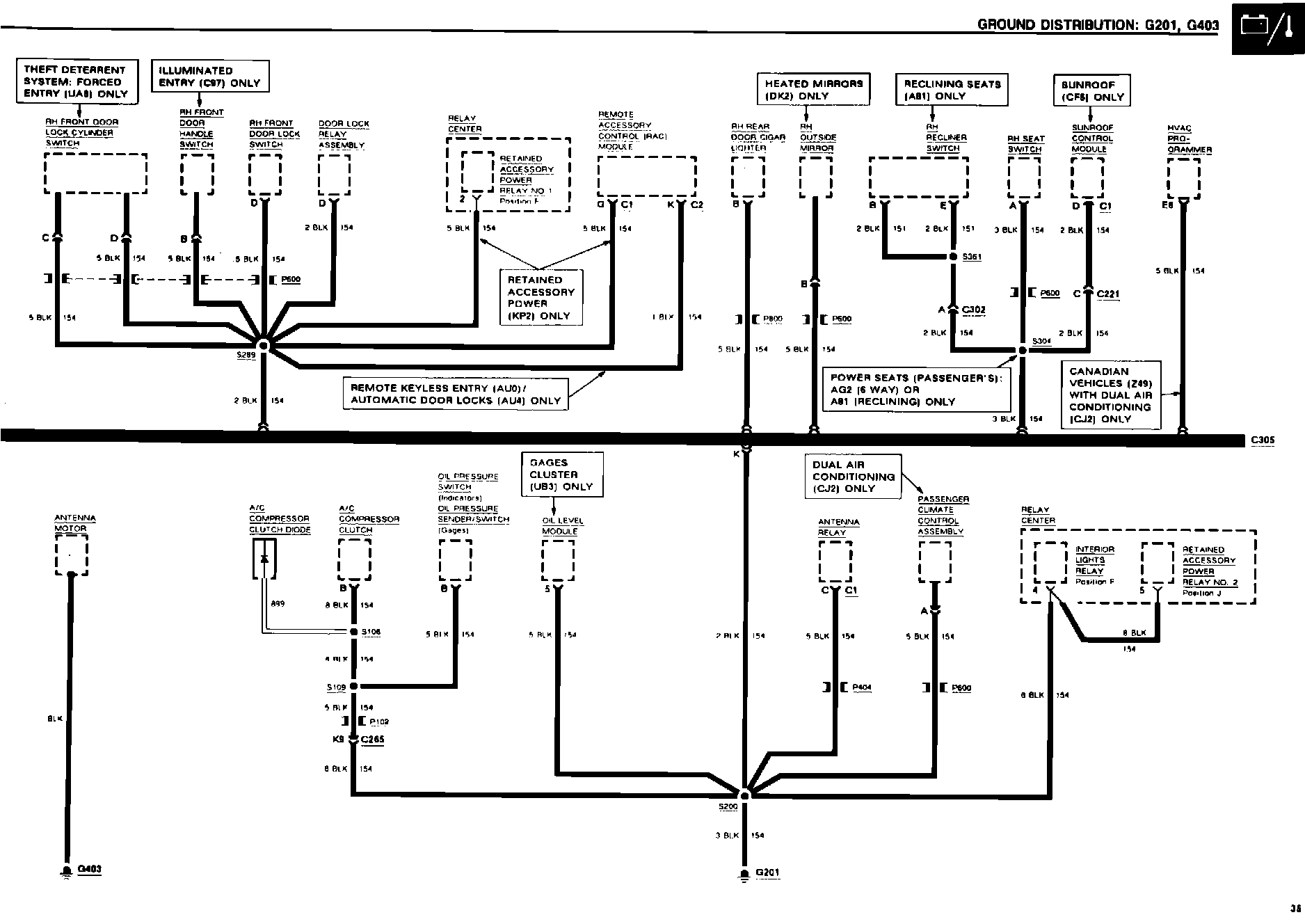

Ground Distribution: G201, G403

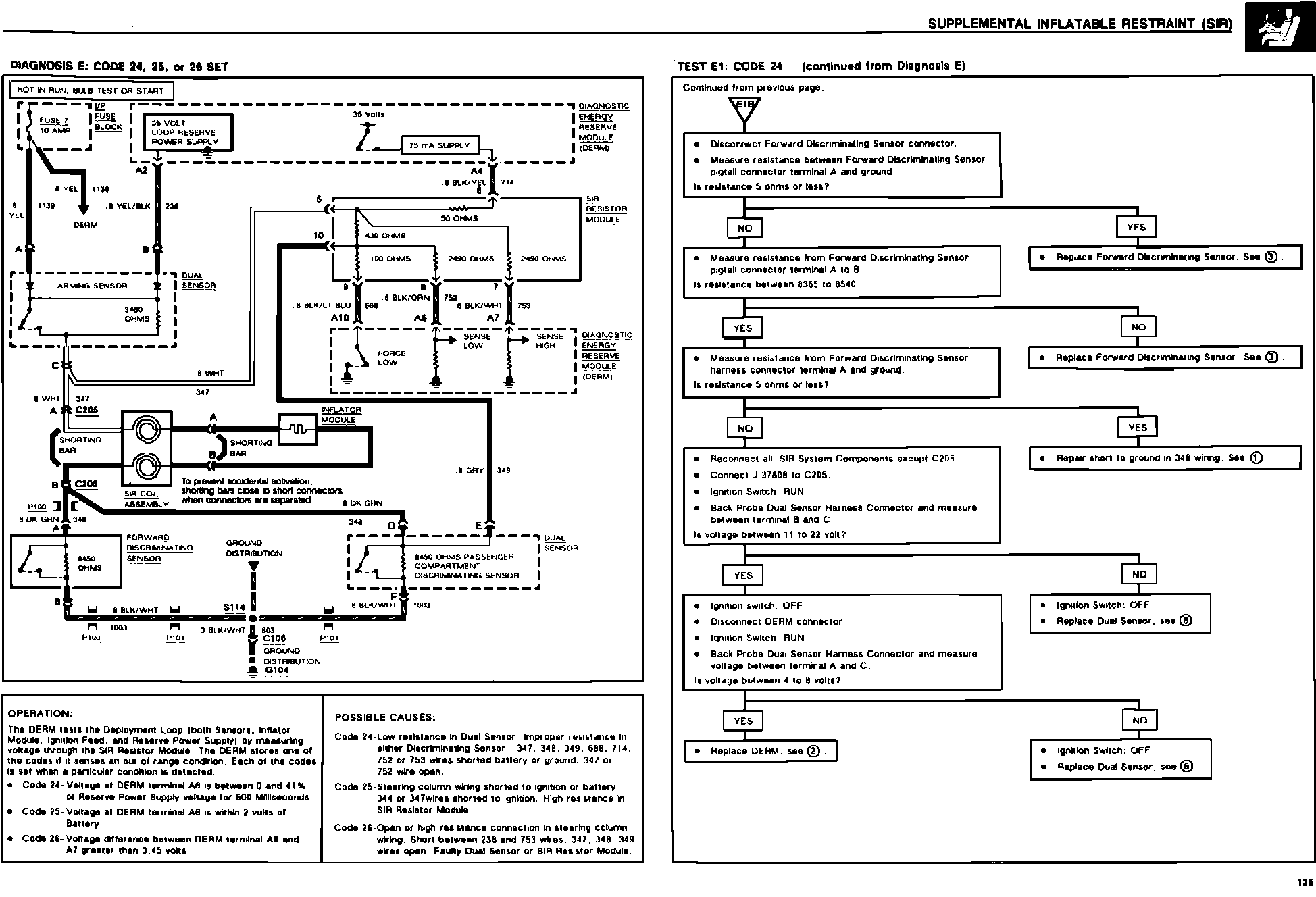

Supplemental Inflatable Restraint (SIR) Diagnosis E: Code 24, 25, 26 SET - Test E1: Code 24

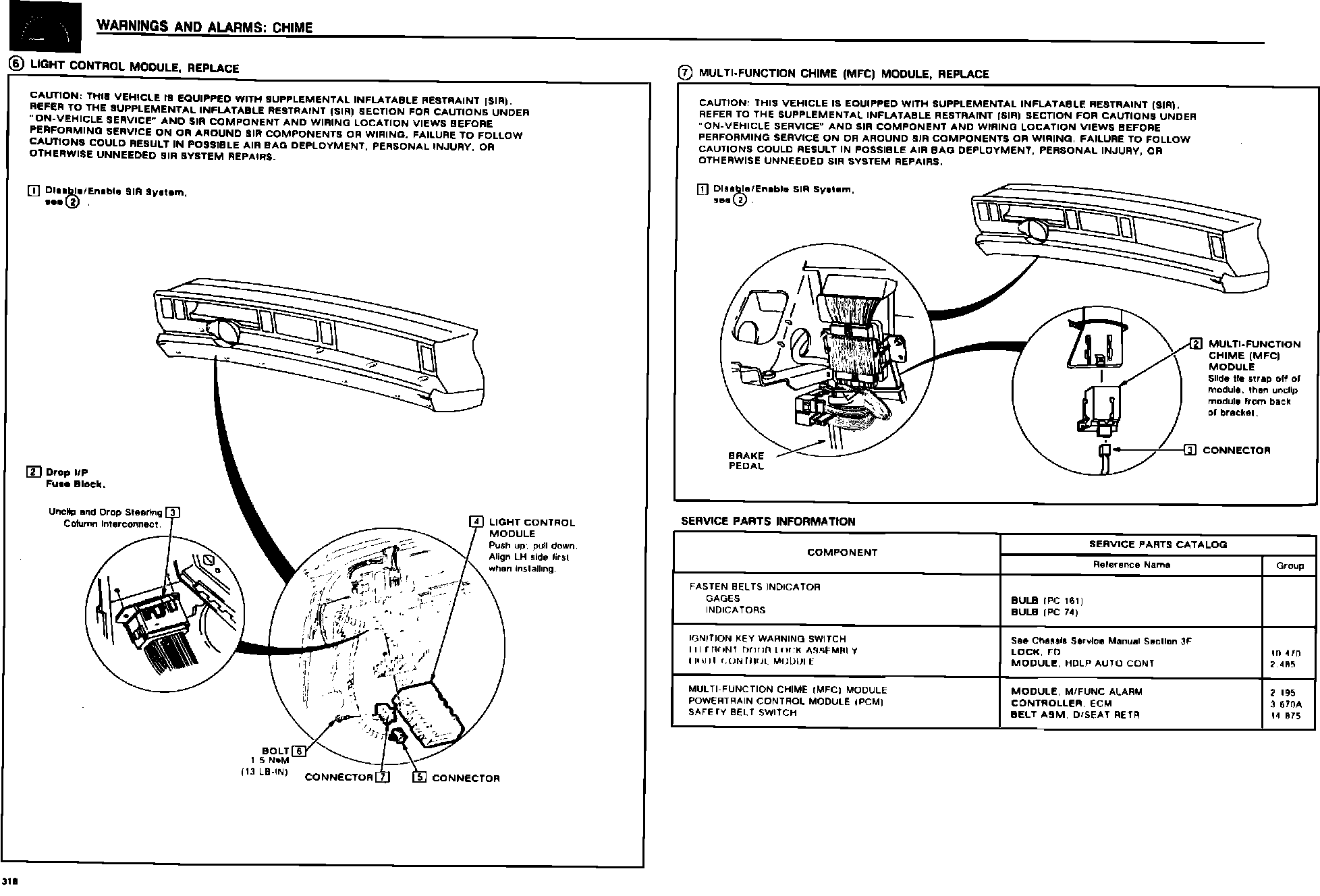

Warnings and Alarms: Chime
