L: Heater & A/C Control Assembly Test
L: Heater & A/C Control Assembly Test

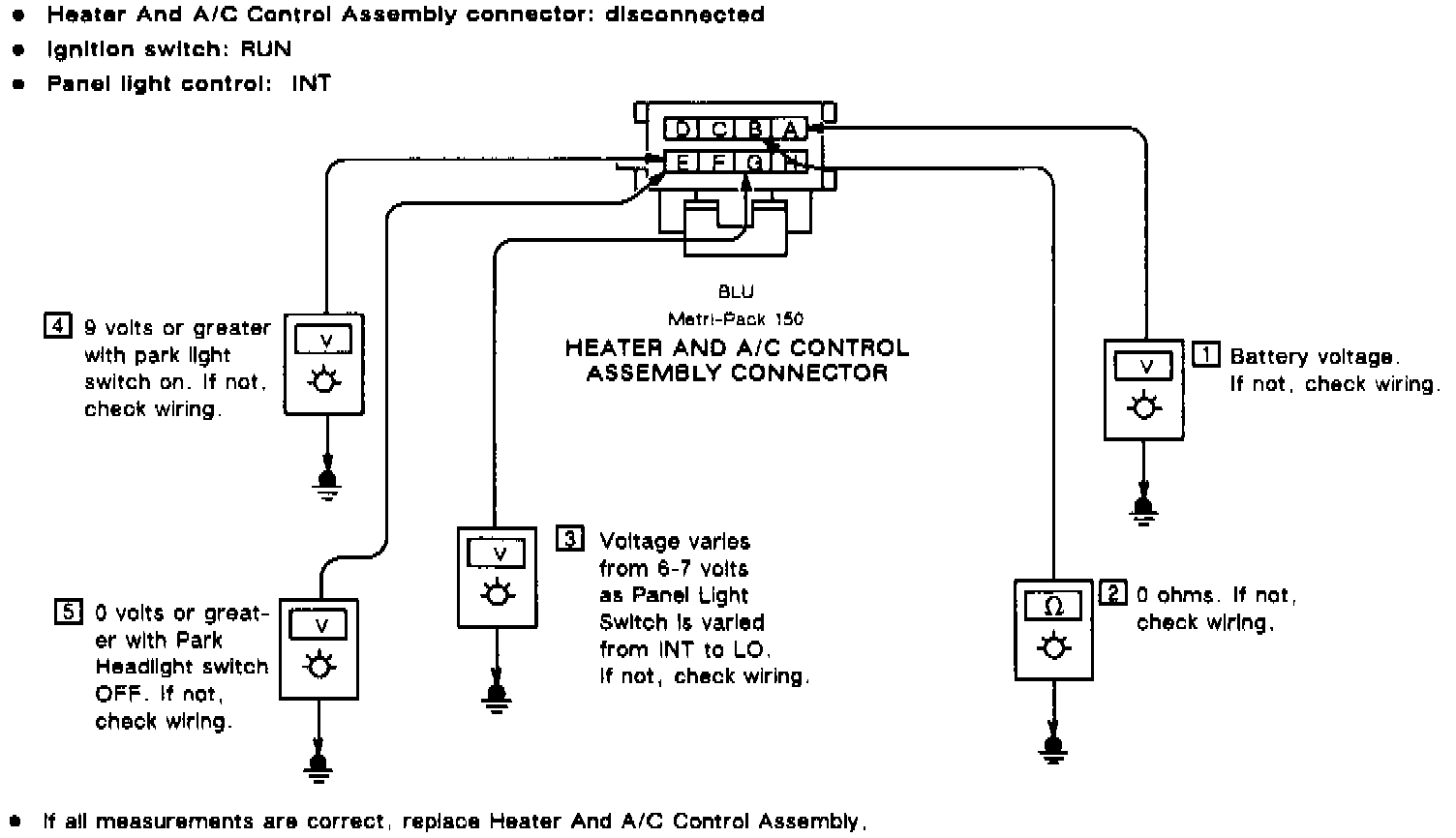

Heater & A/C Control Assembly Test:
