Home >> Buick >> 1991 >> Park Avenue Ultra V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Charts/Tests >> HVAC System - Dual Zone >> A: Sensor Test

A: Sensor Test

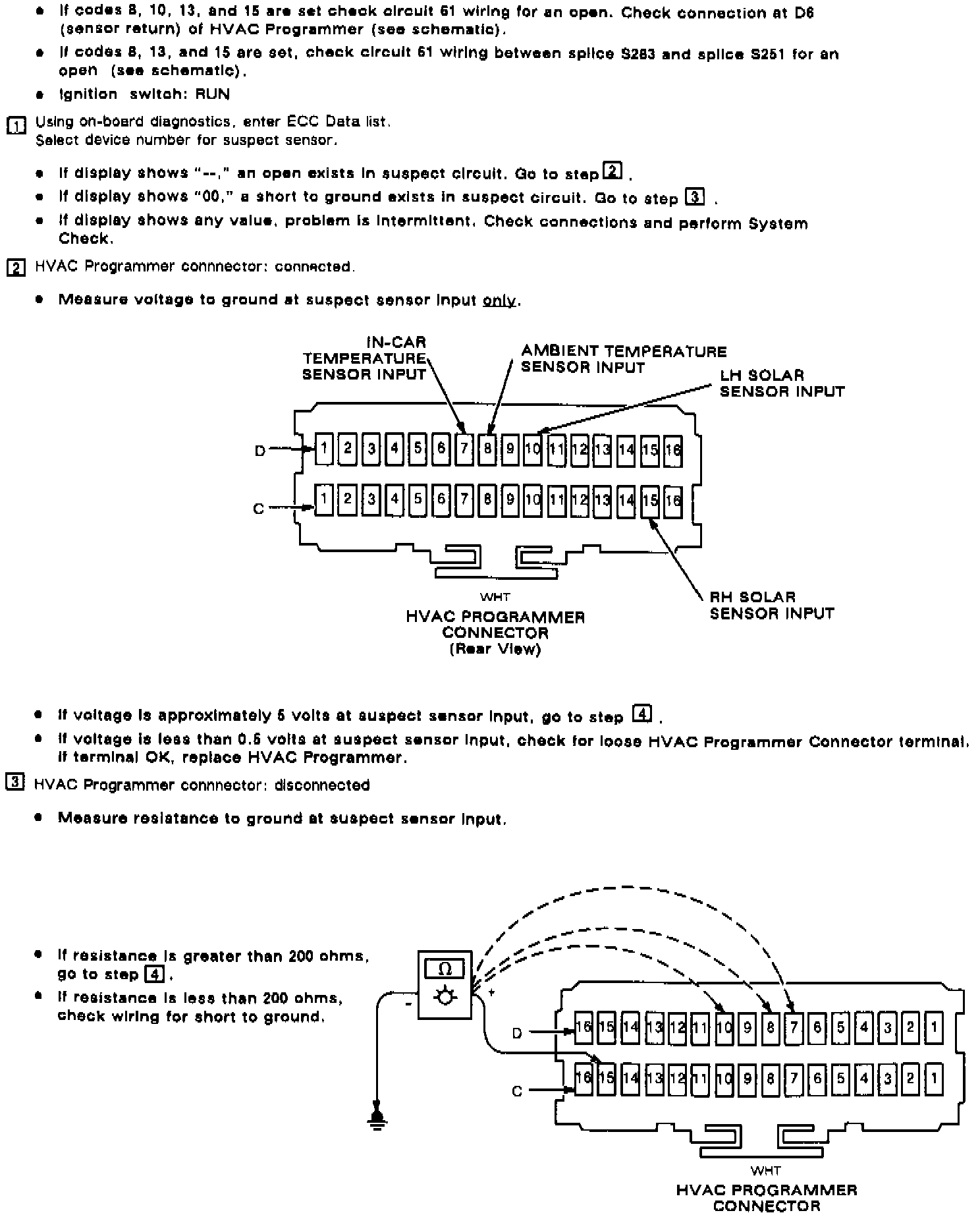

Sensor Test - Part 1 of 2:

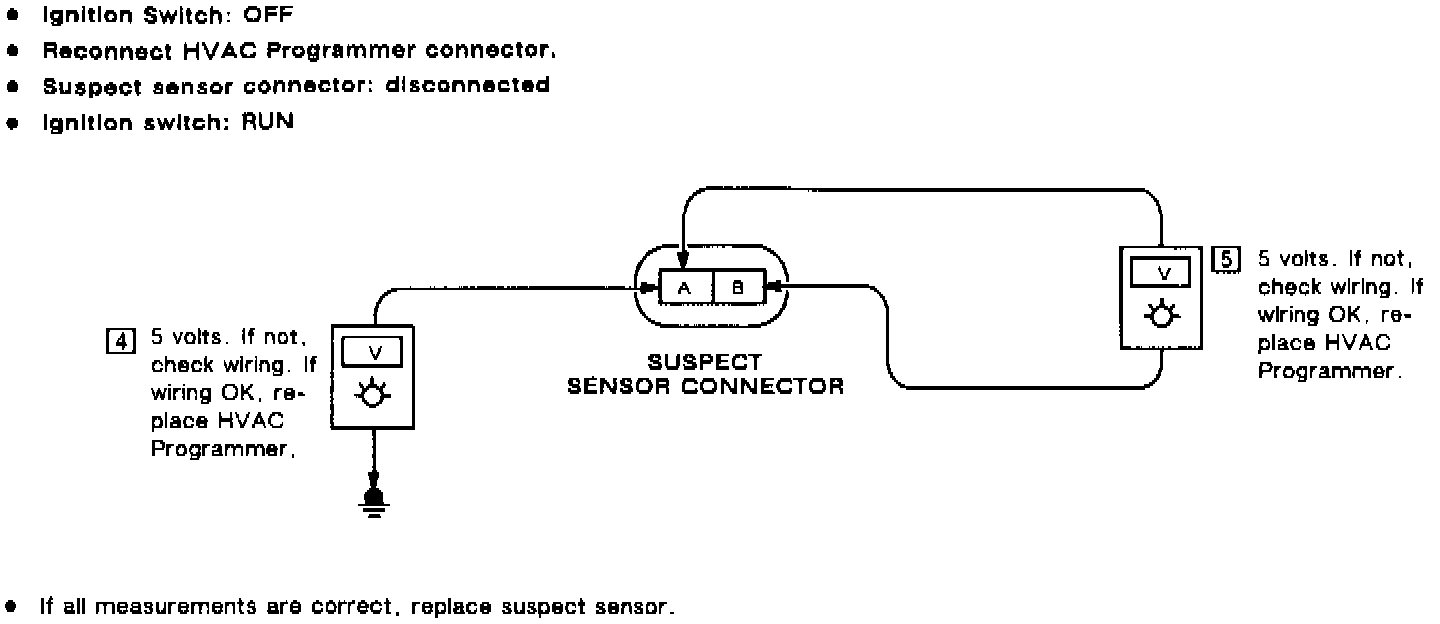

Sensor Test - Part 2 of 2:
