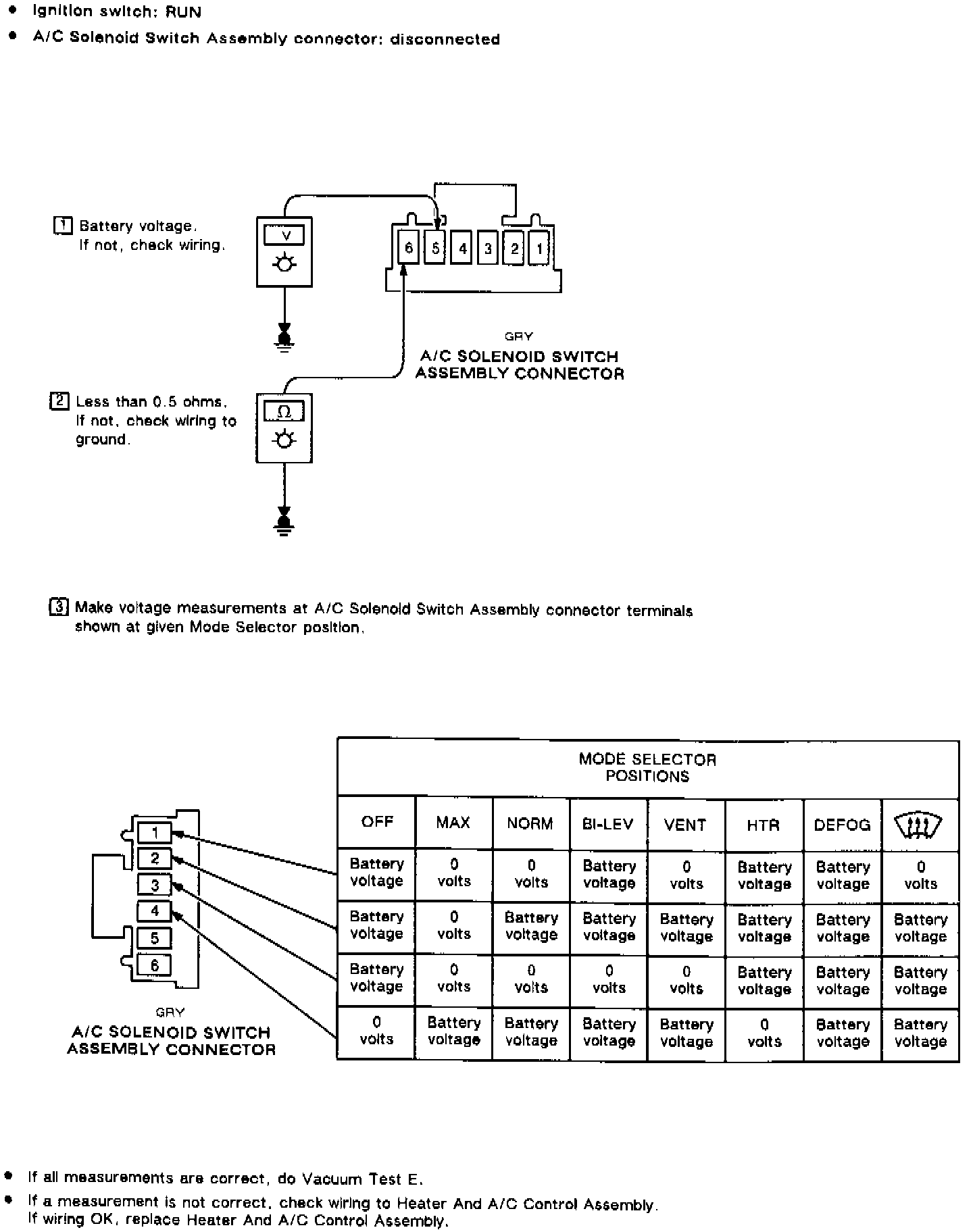

Chart L: A/C Solenoid Switch Assembly Test
Chart L: A/C Solenoid Switch Assembly Test
A/C Solenoid Switch Assembly Test:
