Windshield and Backglass Replacement

Windshield Preparation

Remove or Disconnect
1. Wiper arm and blades.
2. Washer hose.

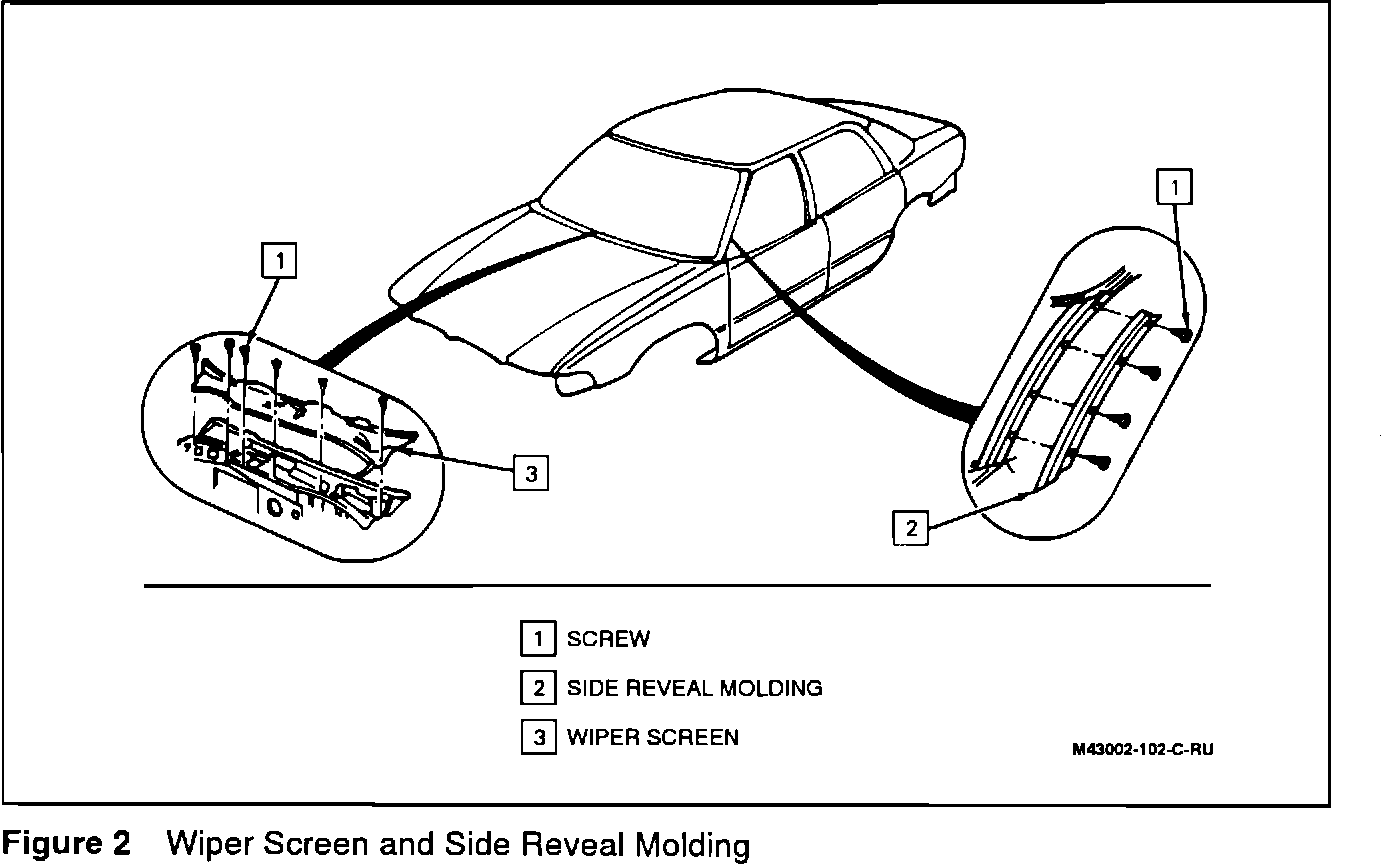

3. Cowl screen assembly.
4. Wiper down stops from cowl screen.

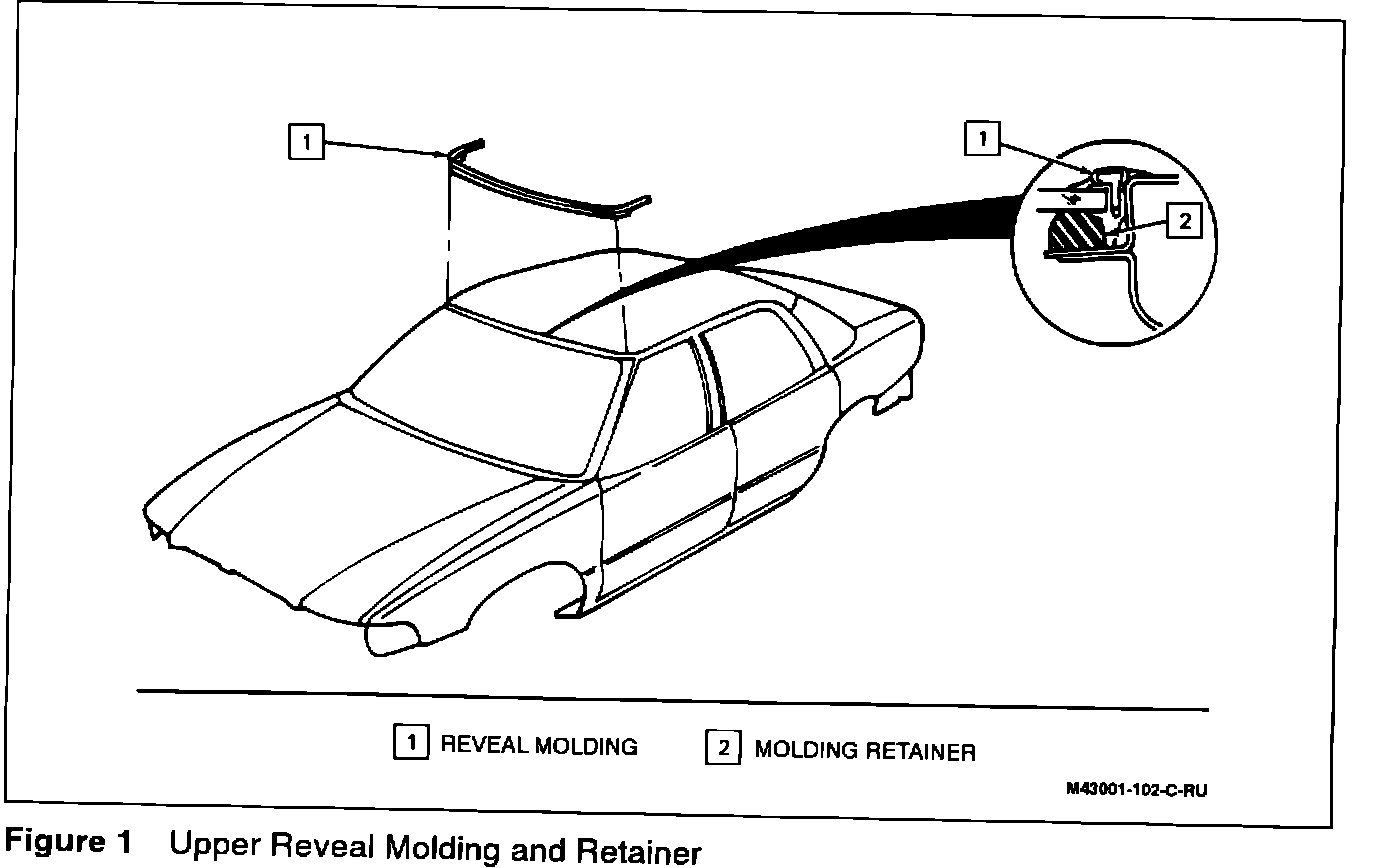

5. All reveal moldings from around windshield.
6. Front screws at drip rails.
7. Tape off painted areas.
8. Inside garnish moldings.
9. Rearview mirror.
10. Heated windshield connector (if equipped).
11. Protect upper I/P with cloth.





Back Glass Preparation

Remove or Disconnect
1. Decklid (Oldsmobile only)

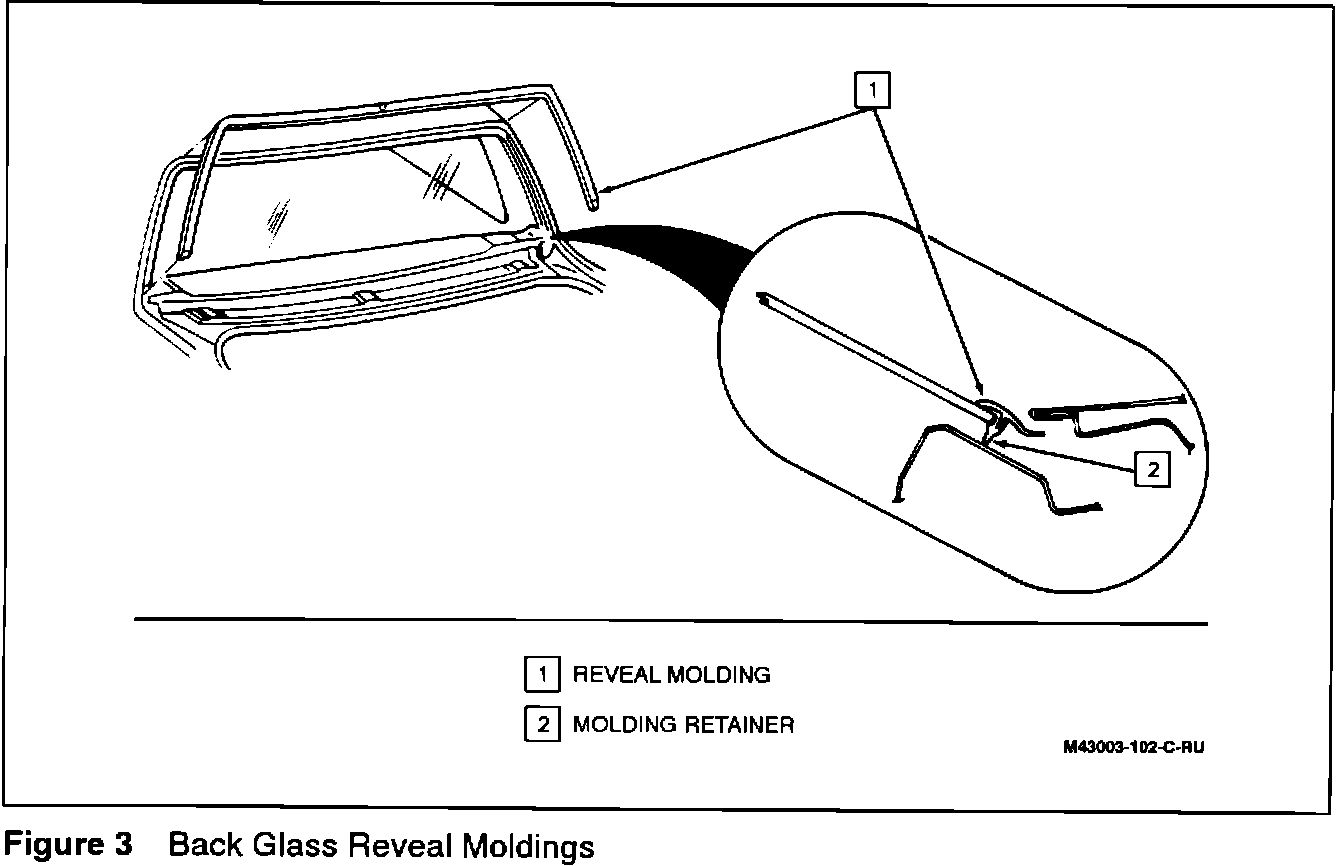

2. Reveal molding.
3. Seat cushion
4. Seatback.
5. Upper quarter trim panels.
6. Rear defogger connectors.
7. Center high mount stop lamp.
