Glass Cut-Out

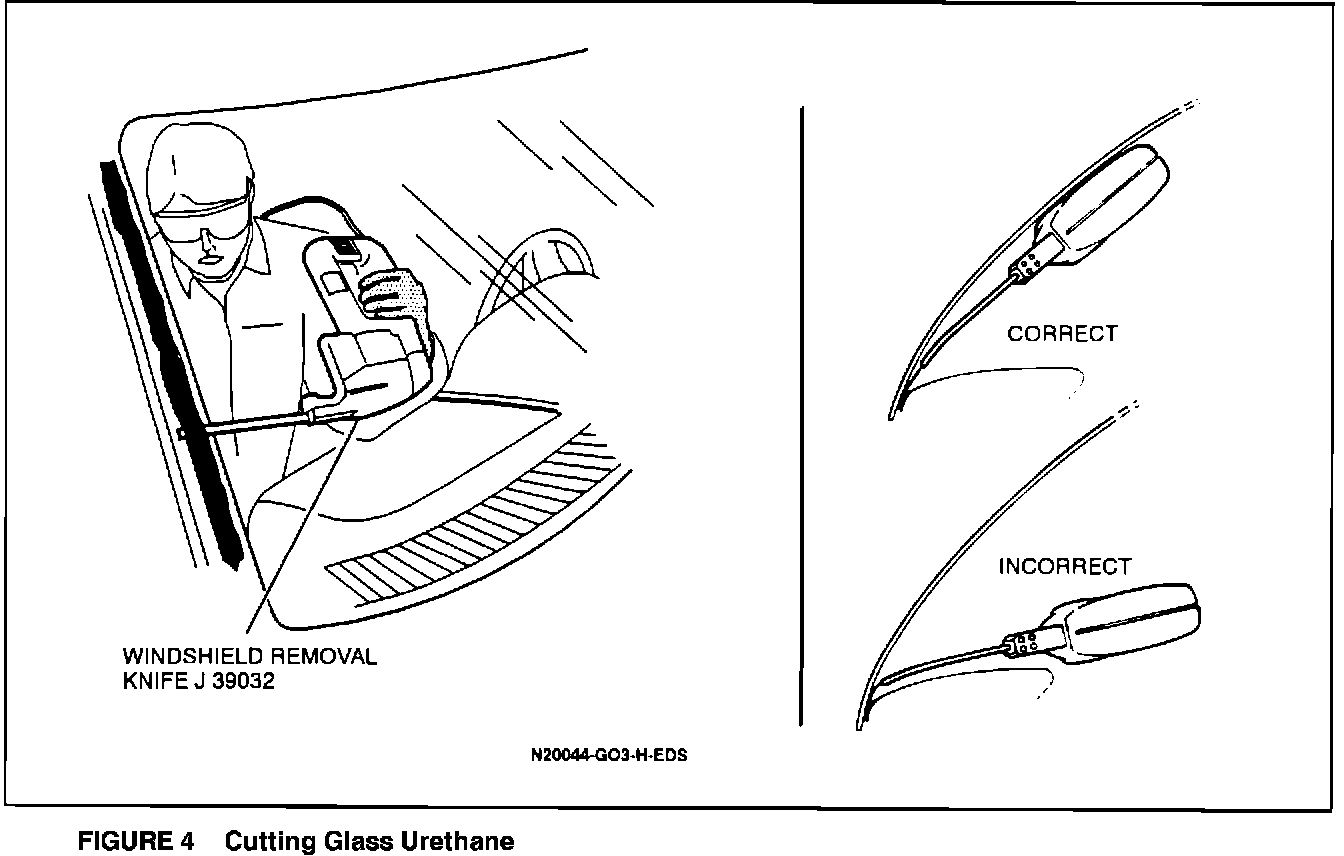

Using Windshield Removal Knife J 39032, carefully cut urethane around glass. Follow the instructions that come with the tool kit and keep in mind the following important points:


^ Keep blade and sheath clean.

^ Install blade so that the flat side will ride against the glass.

^ Select the proper blade/sheath and adjust so the blade will not hit the pinch weld on the outside of the car after it has cut through the urethane.


^ Keep blade moving so it will not produce excess heat buildup.

^ If reusing glass, be careful not to cut heated windshield wires.

^ Allow for proper ventilation inside the vehicle and follow all safety information in the kit.
