Low Oil Level Sensor - Input Test Revision

9224buick05

Bulletin: 91-8-27

Date: April '91

Ref. No.: 91-164-8

Corp. Ref. No.: 008129R


SUBJECT:
ELECTRICAL SYSTEMS MANUAL UPDATE - LOW OIL LEVEL SENSOR INPUT TEST (REVISION)

MODELS AFFECTED:
1991 PARK AVENUE








Please cancel Bulletin No. 91-8-8 and replace it with this bulletin.

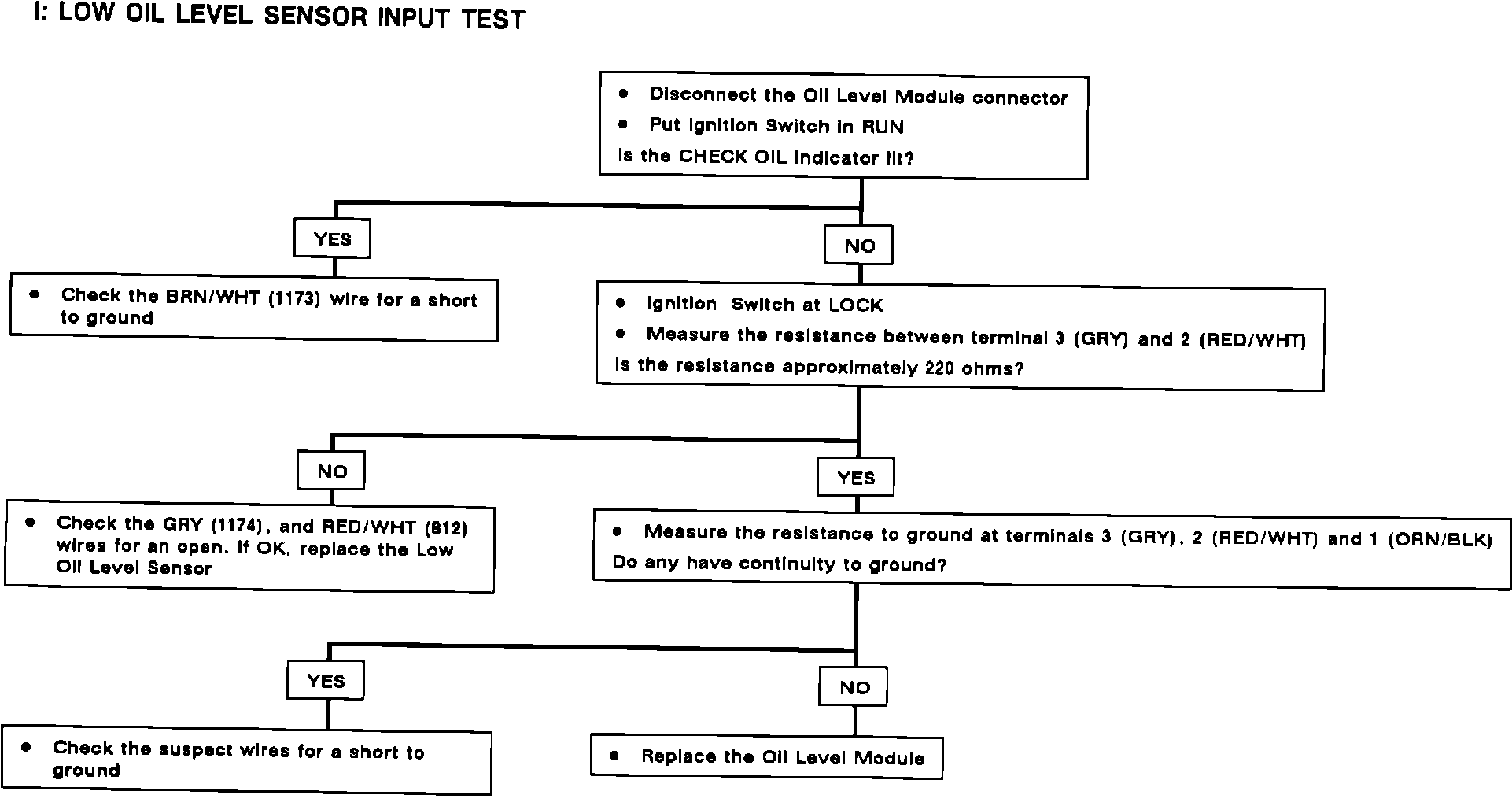

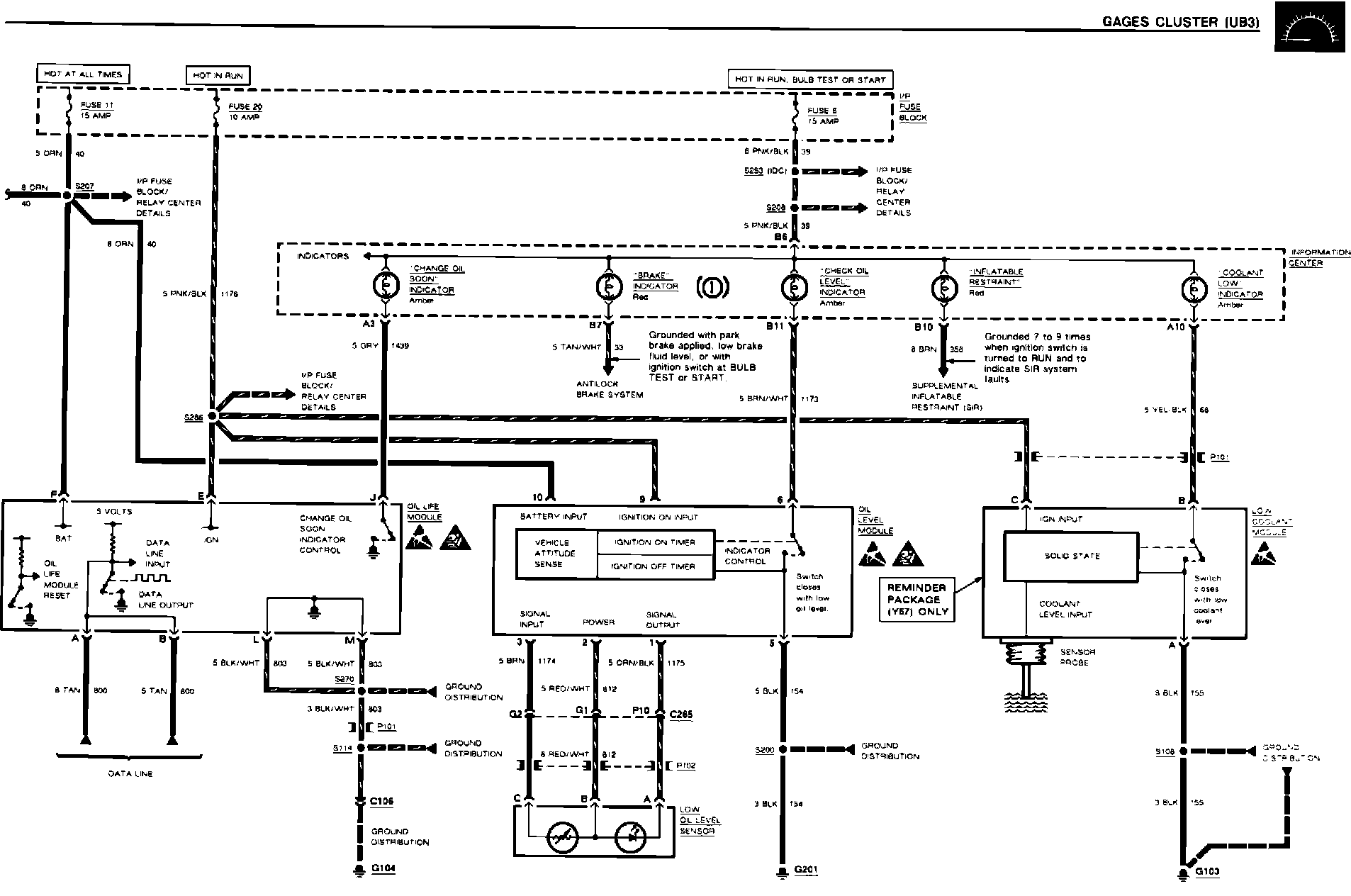

The illustrations contain revised information for: Gages Cluster (UB3) - ELECTRICAL SCHEMATIC, page 279 and LOW OIL LEVEL SENSOR INPUT TEST, page 286.
