Interior Lights - Service Manual Update

9224buick05

Bulletin: 91-8-17

Date: Mar.'91

Ref. No.: 91-094-8

Corp. Ref. No.: 009134


SUBJECT:
ELECTRICAL SYSTEMS MANUAL UPDATE - BODY, INTERIOR LIGHTS (REVISED SPLICE - S252 - LOCATION)

MODELS AFFECTED:
1991 PARK AVENUE/ULTRA

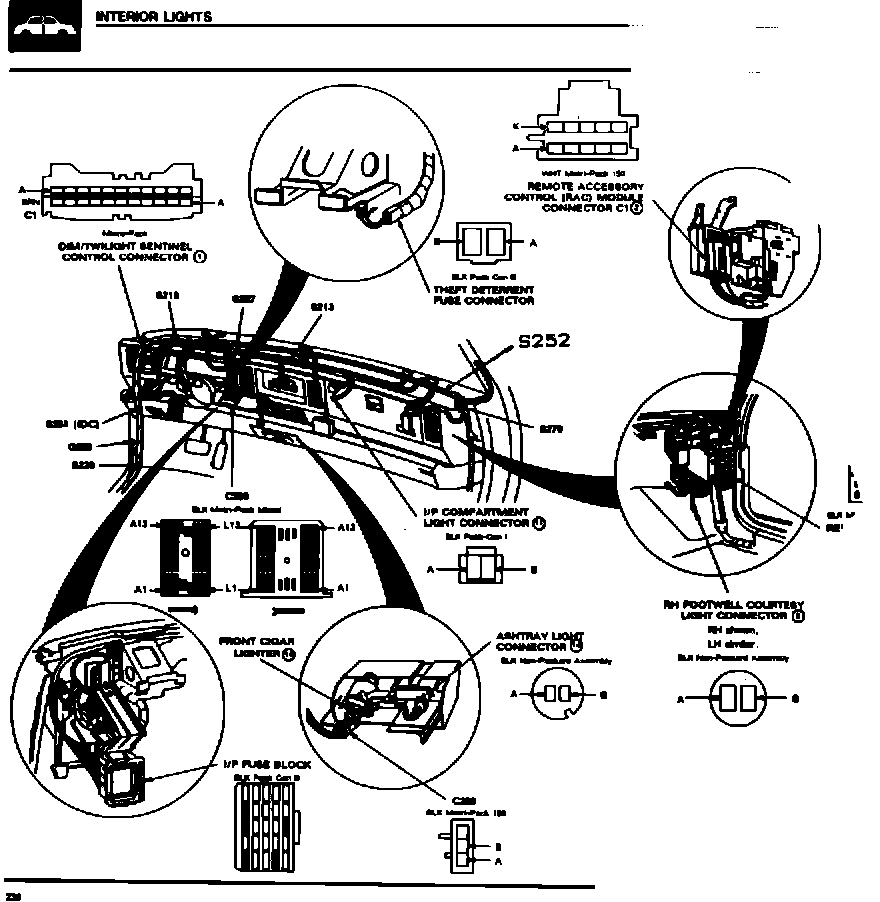

Splice S252 is not shown on System Locator Illustration, See Figure, Page 236. Splice S252 is located approximately six inches to the left, and on the same wiring harness as Splice S270. Splice S252 is easily identified, as it is approximately two inches in diameter, and wrapped in electrical tape.
