Information Center - Connector Revision

9223buick05

Bulletin 91-8-11

Date Nov. '90

Ref. No. 91-049-8

Corp. Ref. No. 008202


SUBJECT:
ELECTRICAL SYSTEMS MANUAL UPDATE - INFORMATION CENTER CONNECTOR

MODELS AFFECTED:
1991 PARK AVENUE/PARK AVENUE ULTRA

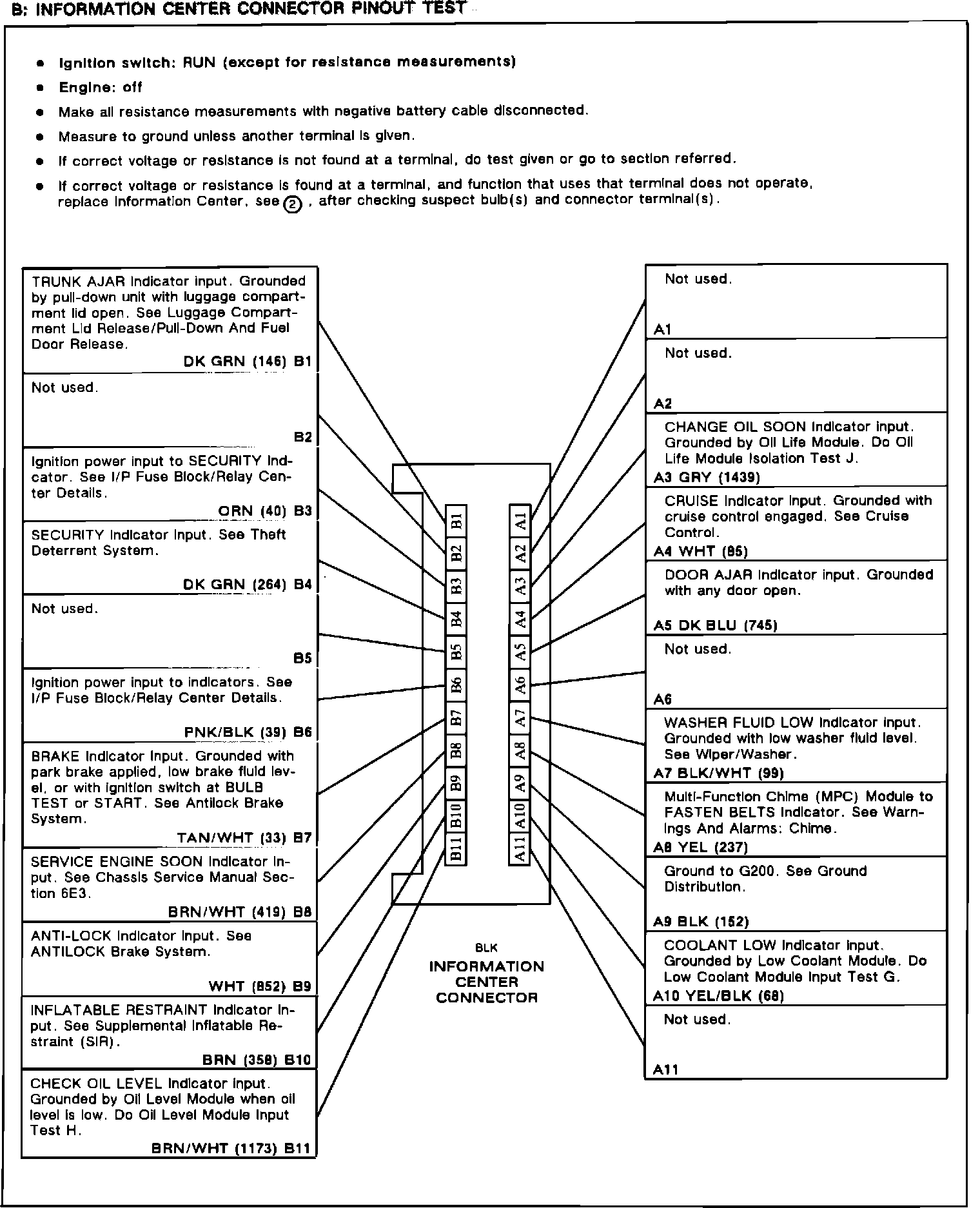

The following Information Center Connector Pinout Test, (Page 283), has been revised for late model 1991 Buick Park Avenue/Park Avenue Ultra vehicles. Additional pages affected because of this revision are: 27, 28, 41, 63, 66, 82, 84, 91, 94, 110, 112, 137, 138, 174, 175, 183, 184, 278, 279, 281, 283, 295, and 296.

Please update your respective Electrical System Manual accordingly.
