Dual A/C - Revised Blower Motor Test Chart

Bulletin: 91-8-45

Date: Oct. '91

Ref. No.: 91-247-8A

Corp. Ref. No.: 108125


SUBJECT:
ELECTRICAL SYSTEMS MANUAL UPDATE - ELECTRICAL DIAGNOSIS - DUAL AIR CONDITIONING - CJ2 (REVISED) BLOWER M TEST CHART

MODELS AFFECTED:
1991 PARK AVENUE/ULTRA

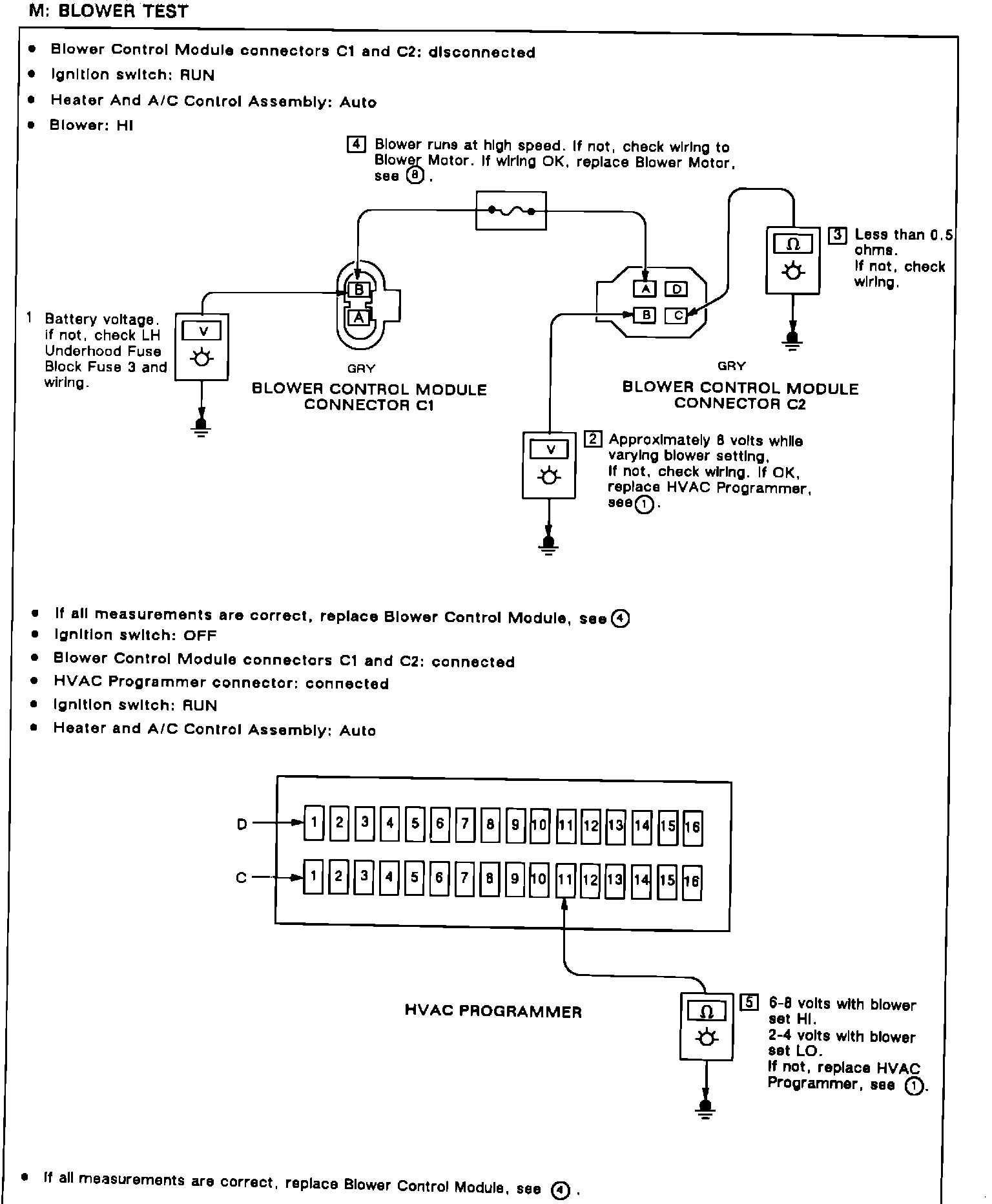

The diagnostic procedure for the Dual Air Conditioning - CJ2:
Blower Test M on page 391 of the Electrical Systems Manual has been revised to indicate proper voltage and to encompass a greater area for testing purpose.

Please use the revised chart for proper diagnostics.
