Antilock Brake System - Charts Revised

9224buick05

Bulletin: 91-8-36

Date: June '91

Ref. No.: 91-218-8

Corp. Ref. No.: 108119


SUBJECT:
ELECTRICAL SYSTEMS MANUAL UPDATE - ELECTRICAL DIAGNOSIS - ANTILOCK BRAKE SYSTEM CHARTS (REVISED)

MODELS AFFECTED:
1991 PARK AVENUE/ULTRA MODELS


The illustrated are revised Diagnosis Charts for the 1991 Electrical Systems Manual:

REVISED CHARTS:

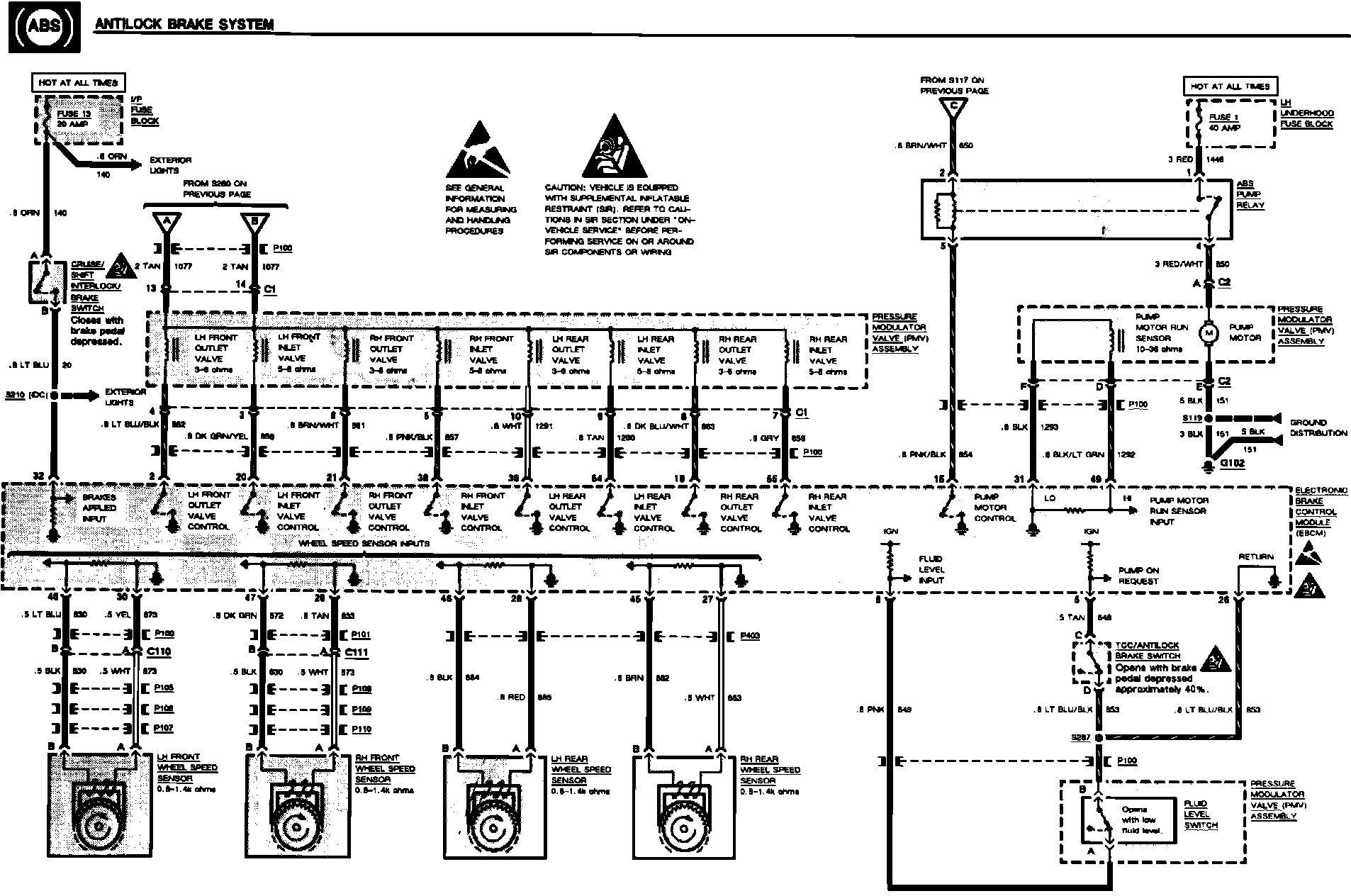

Page 92 Wiring Diagram

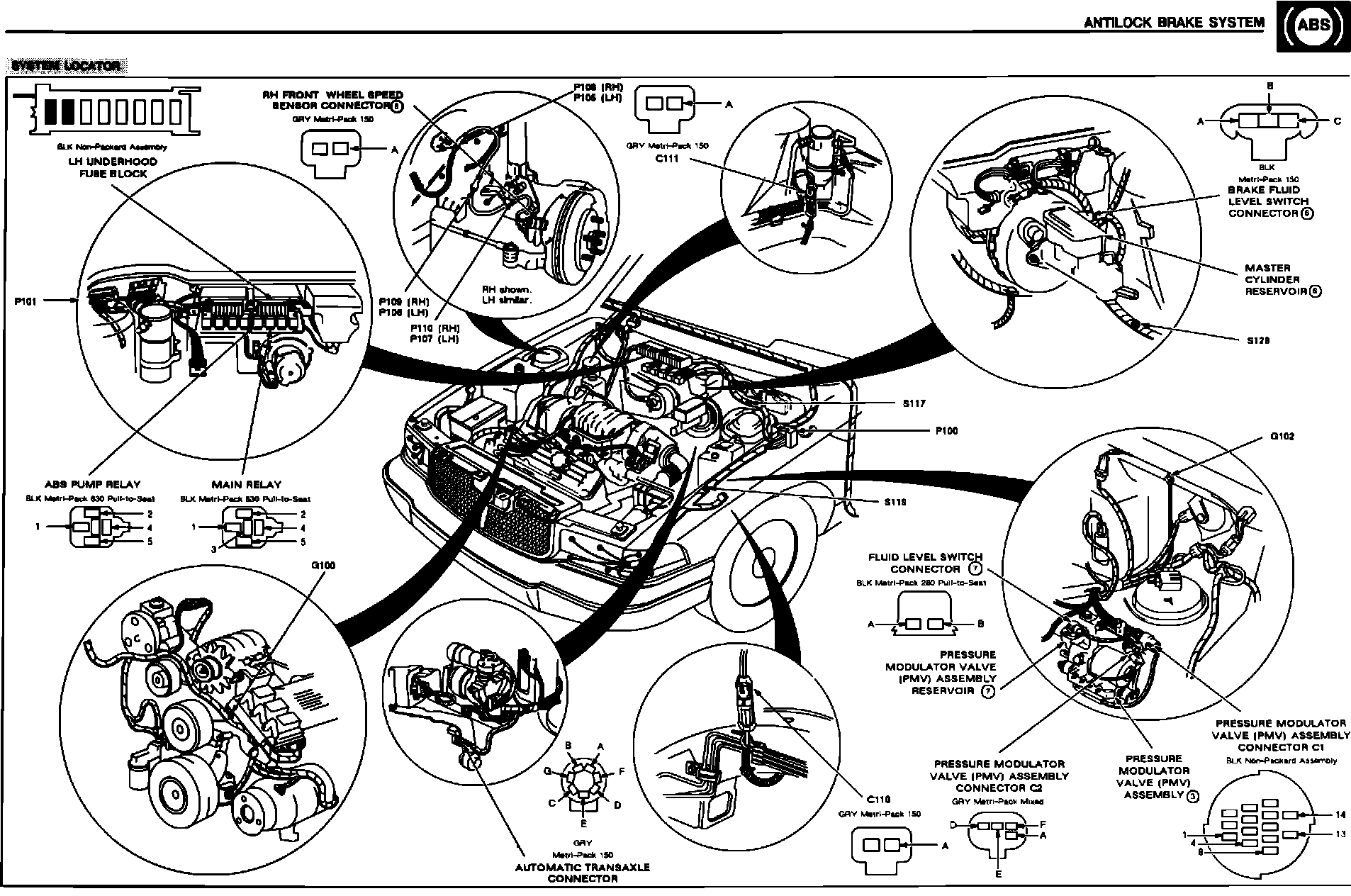

Page 93 Component Location

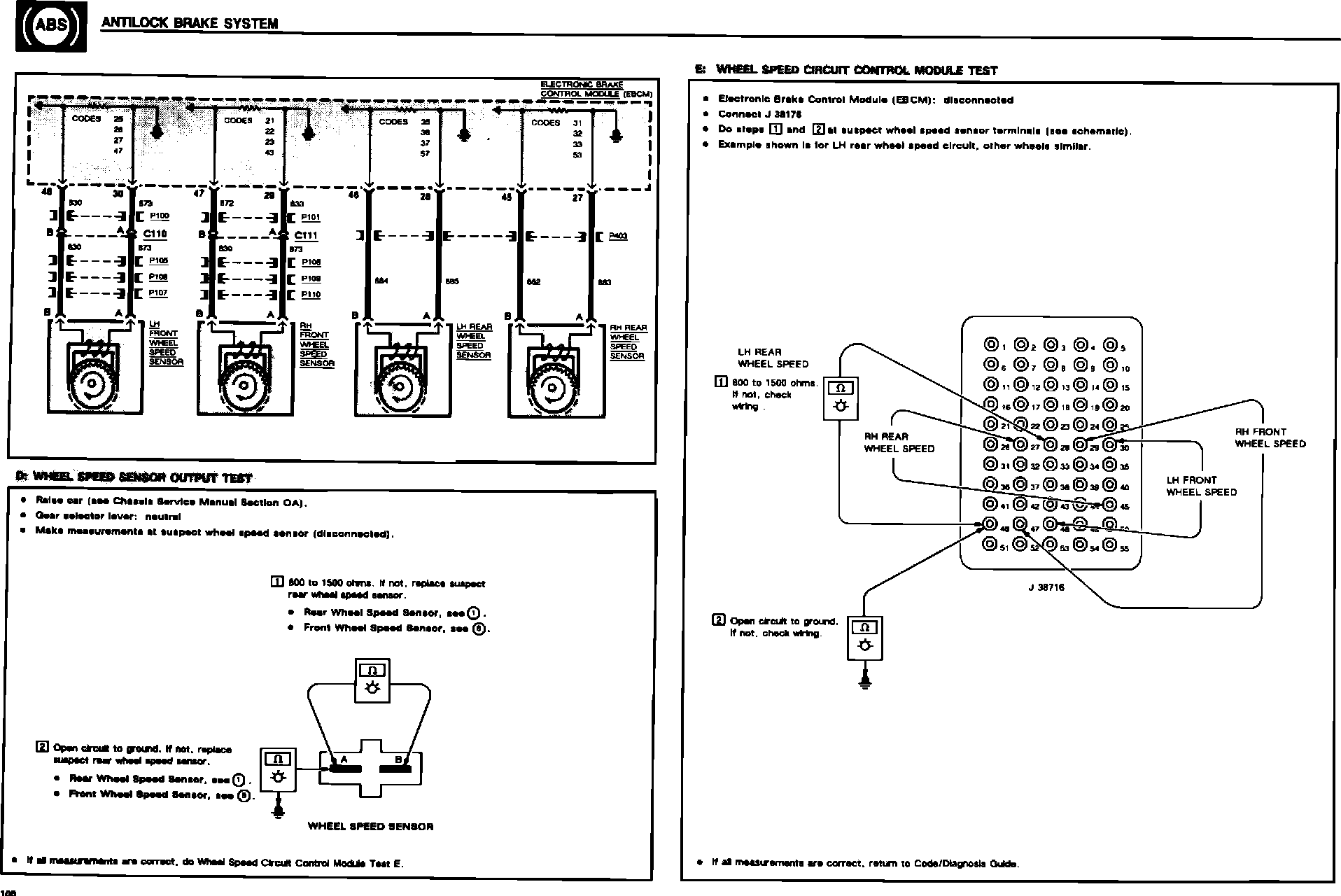

Page 100 Wheel Speed Control Module Test





Page 108 Filling and Bleeding Procedure, Parts Information

Please update your System Manual accordingly.
