A/C Programmer - Revised Replacement Procedure

9224buick05

Bulletin: 91-8-25

Date: April '91

Ref. No.: 91-161-8

Corp. Ref. No.: 108112


SUBJECT:
ELECTRICAL SYSTEMS MANUAL UPDATE (REVISED HVAC PROGRAMMER REPLACEMENT PROCEDURE)

MODELS AFFECTED:
1991 PARK AVENUE/PARK AVENUE ULTRA

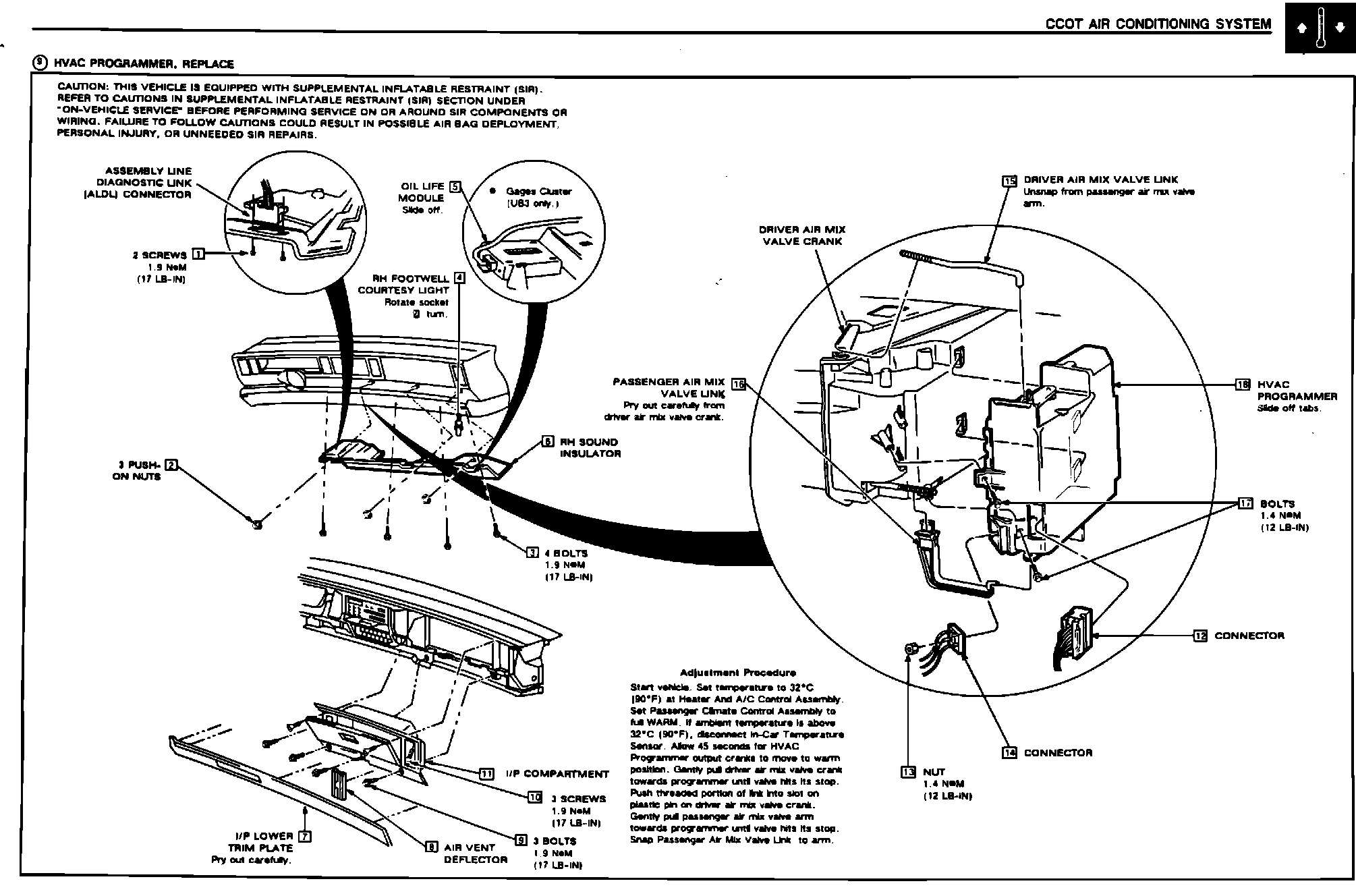

The DUAL AIR CONDITIONING (CJ2), page 392 and CCOT AIR CONDITIONING SYSTEM, page 413, HVAC Programmer Replace Procedure, currently lacks correct nomenclature for the Driver Air Mix Valve and Passenger Air Valve Link. This in turn causes the Adjustment Procedure on the same page to be incorrect.

The Removal and Installation Procedure for pages 392 and 413 has been revised to reflect corrected nomenclature, replace and adjustment procedures.
