(SIR) System Check - Diagnosis Manual Update

9223buick05

Bulletin 91-8-5

Date Oct. '90

Ref. No. 91-026-8

Corp. Ref. No. 008121


SUBJECT:
ELECTRICAL SYSTEM MANUAL UPDATE/SECTION - SUPPLEMENTAL INFLATABLE RESTRAINT (SIR) SYSTEM CHECK - DIAGNOSIS

MODELS AFFECTED:
1991 PARK AVENUE/PARK AVENUE ULTRA

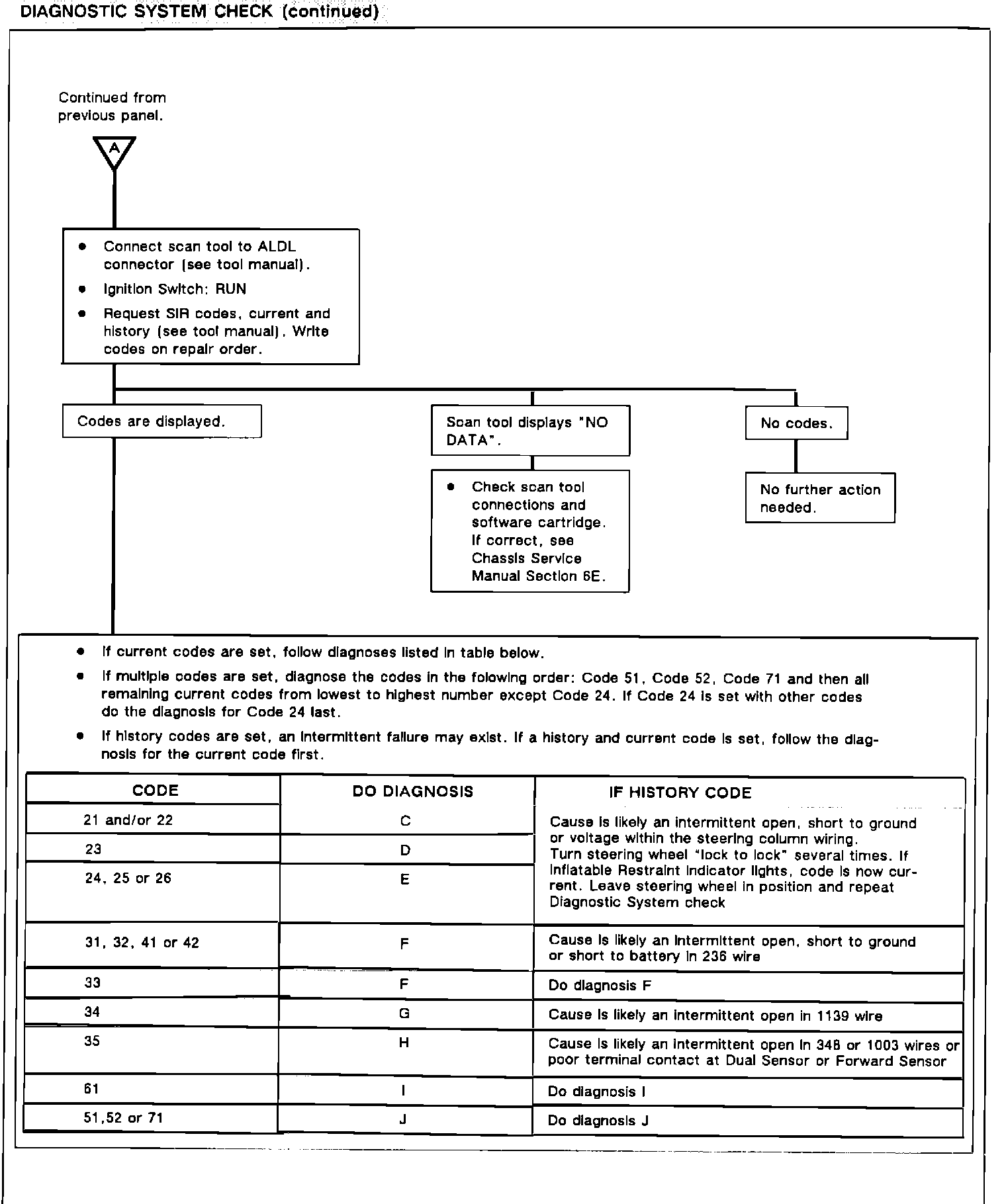

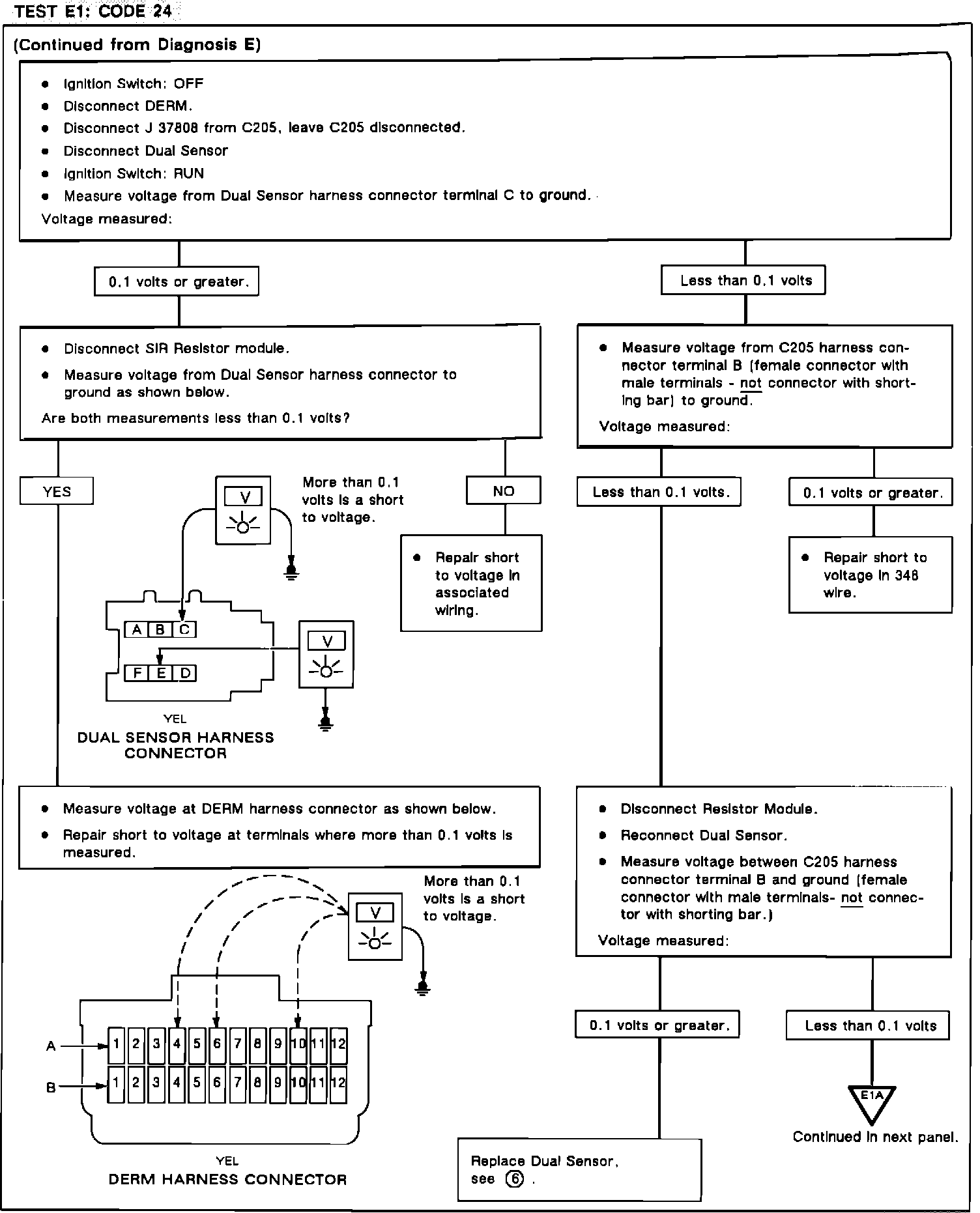

The Supplemental Inflatable Restraint Diagnostic System Check on page 114 and Test El Code 24 on page 120 have been revised for the 1991 Park Avenue/Park Avenue Ultra Electrical Service Manual. The Charts contain corrected diagnostic system check and Test El Code 24 information.
