Fuse 7
Fuse 7

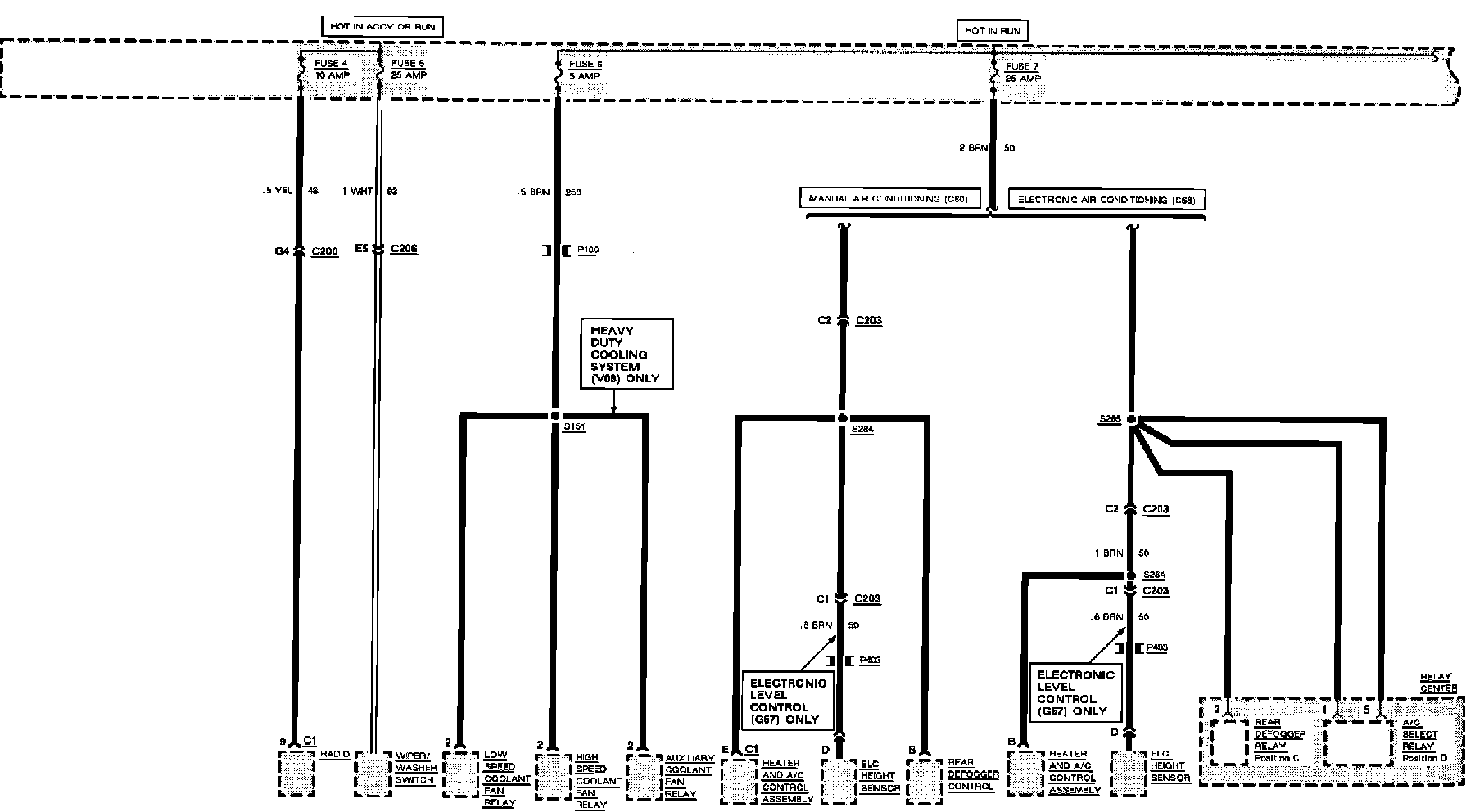

Fuse Panel Details. Fuses 4, 5, 6 & 7:

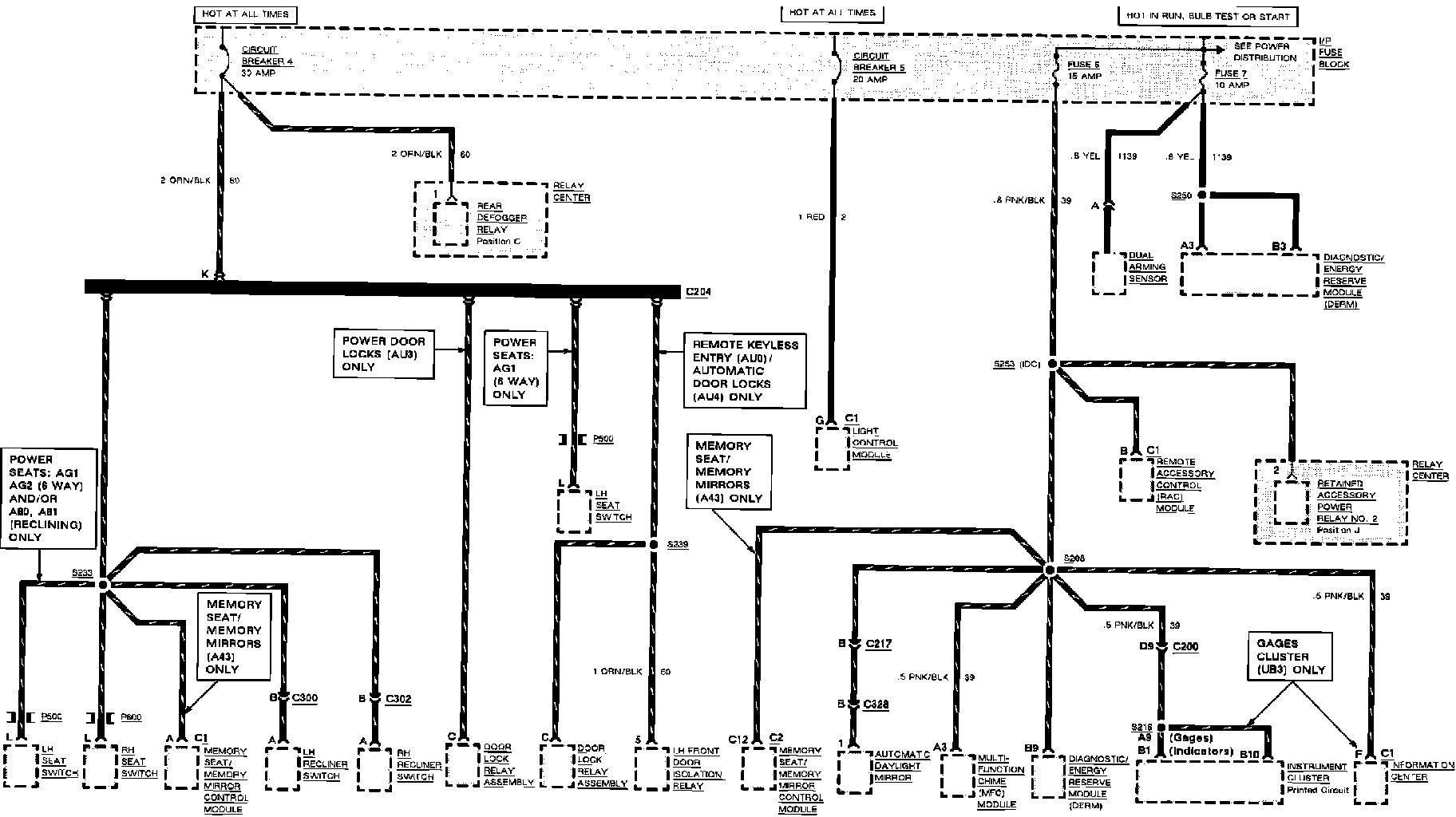

Fuse Panel Details. Fuses 6, 7 & Circuit Breakers 4 & 5:
