Fuse 17
Fuse 17

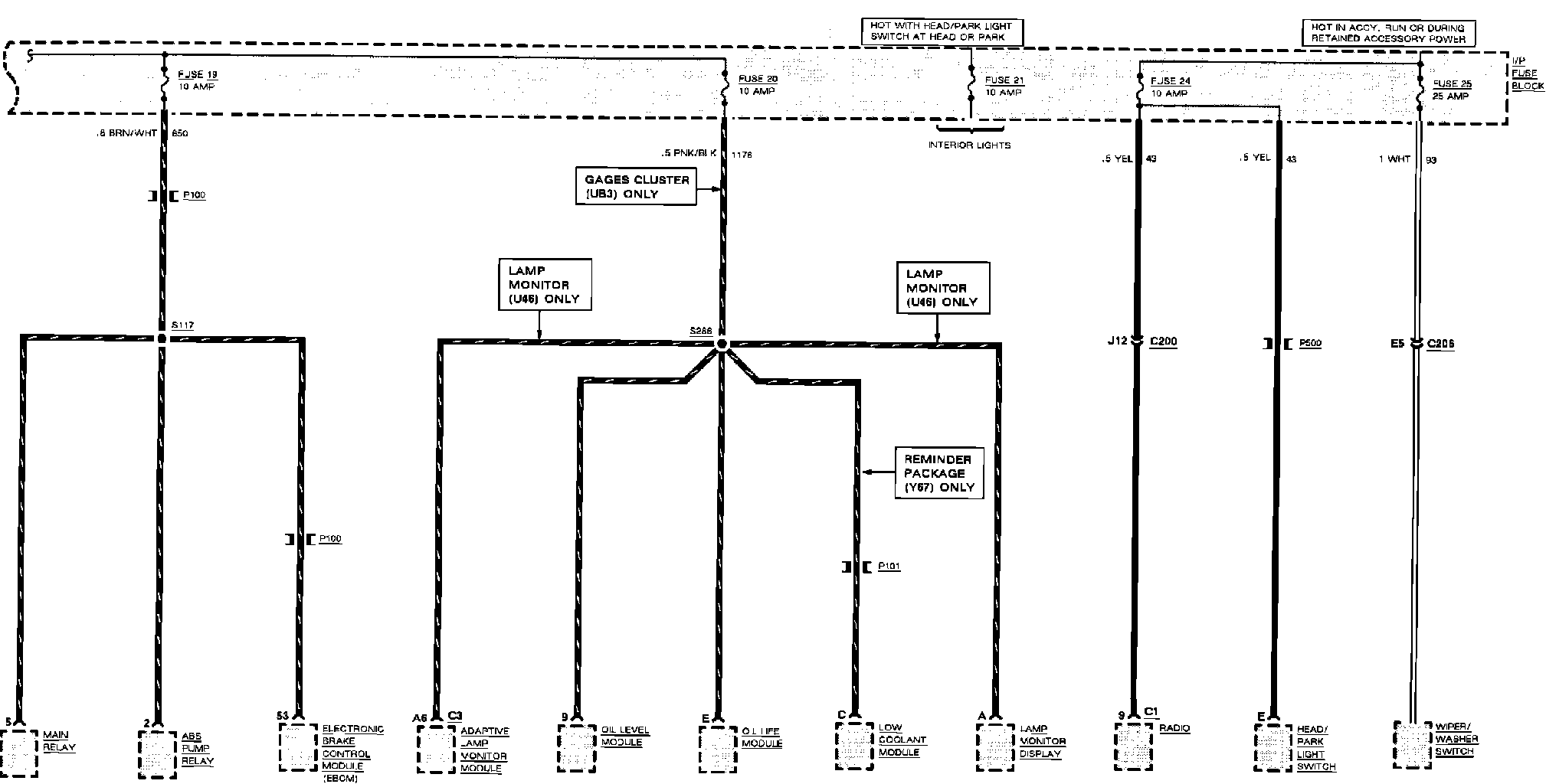

Fuse Panel Details. Fuses 16, 17, 18, 19, 20 & Circuit Breaker 24:
Fuse Panel Details. Fuses 19, 20, 21, 24 & 25:
