Fuse Block - Details Update

9223buick05

Bulletin 91-8-7

Date Nov. '90

Ref. No. 91-048-8

Corp. Ref. No. 008124


SUBJECT:
ELECTRICAL SYSTEMS MANUAL/INSTRUMENT PANEL FUSE BLOCK/DETAILS UPDATE

MODELS AFFECTED:
1991 LESABRE

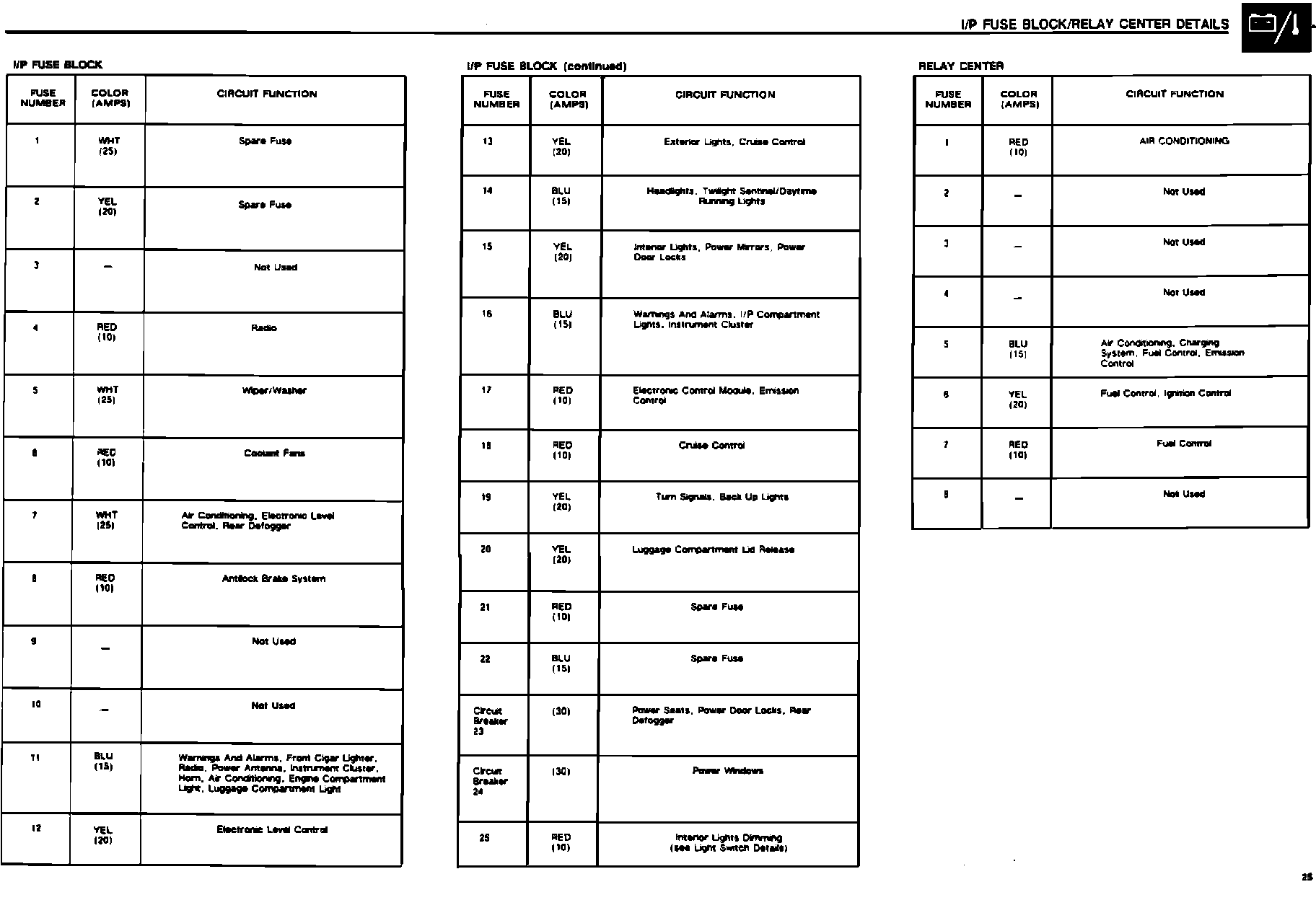

The following Instrument Panel Fuse Block illustration reflects 1991 LeSabre fuse rating changes. Following is a list of the pages and fuses affected.

Pages Affected:
20, 24, 25, 26, 27, 28, 29, 30, 42, 56, 64, 78, 92, 98, 110, 118, 155, 166, 167, 168, 169, 179, 198, 208, 220, 230, 242, 243, 274, and 296

Fuses Affected:
Fuse 1 - from 5A to 25A
Fuse 6 - from 5A to 10A
Fuse 11 - from 20A to 15A
Fuse 14 - from 20A to 15A
Fuse 16 - from 20A to 15A
Fuse 18 - from 5A to 10A
Fuse 19 - from 15A to 20A
Fuse 20 - froni 25A to 15A
Fuse 25 - from 5A to 10A
