G201

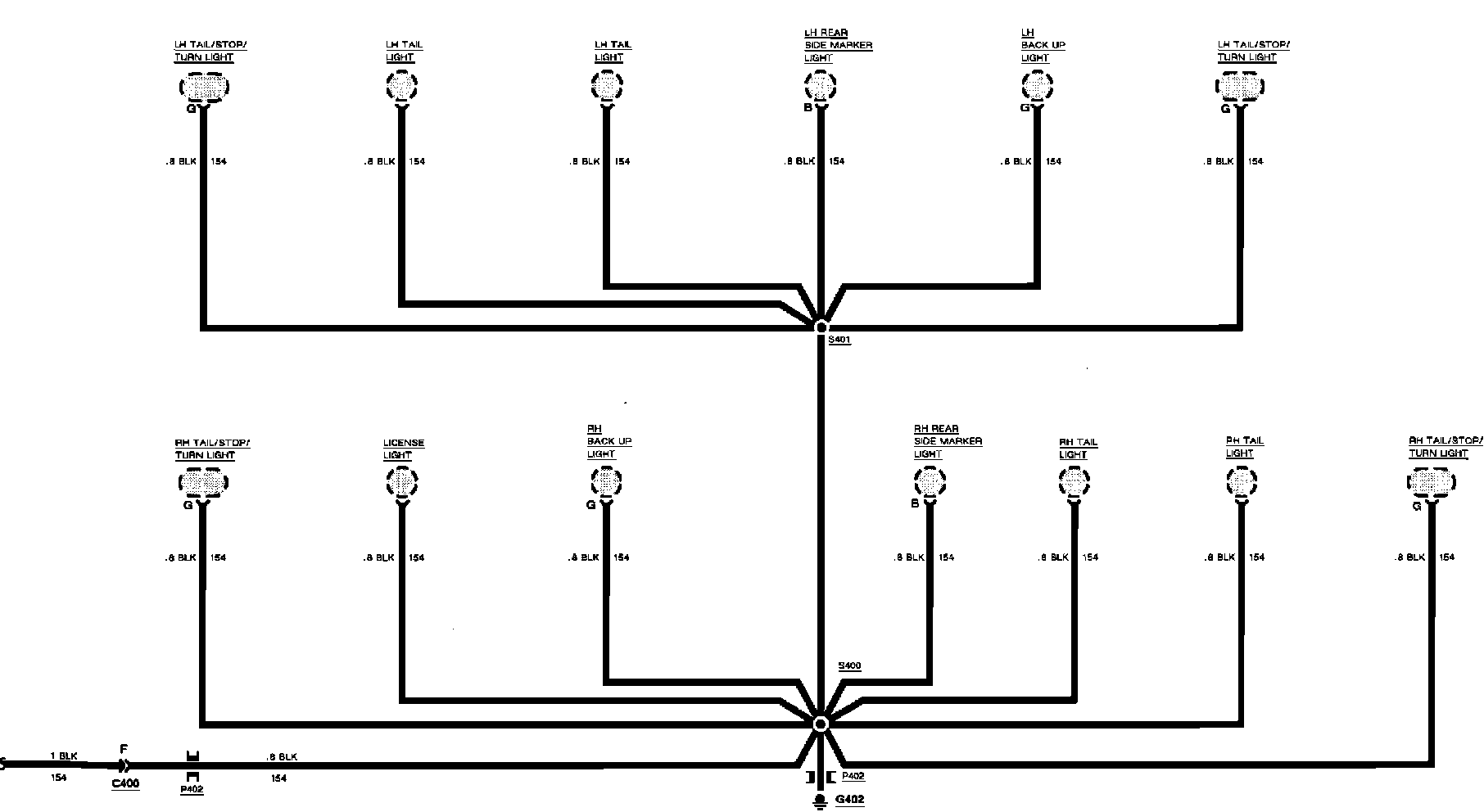

Ground Distribution. G201, G401 & G402:

Ground Distribution. G201, G401 & G402:

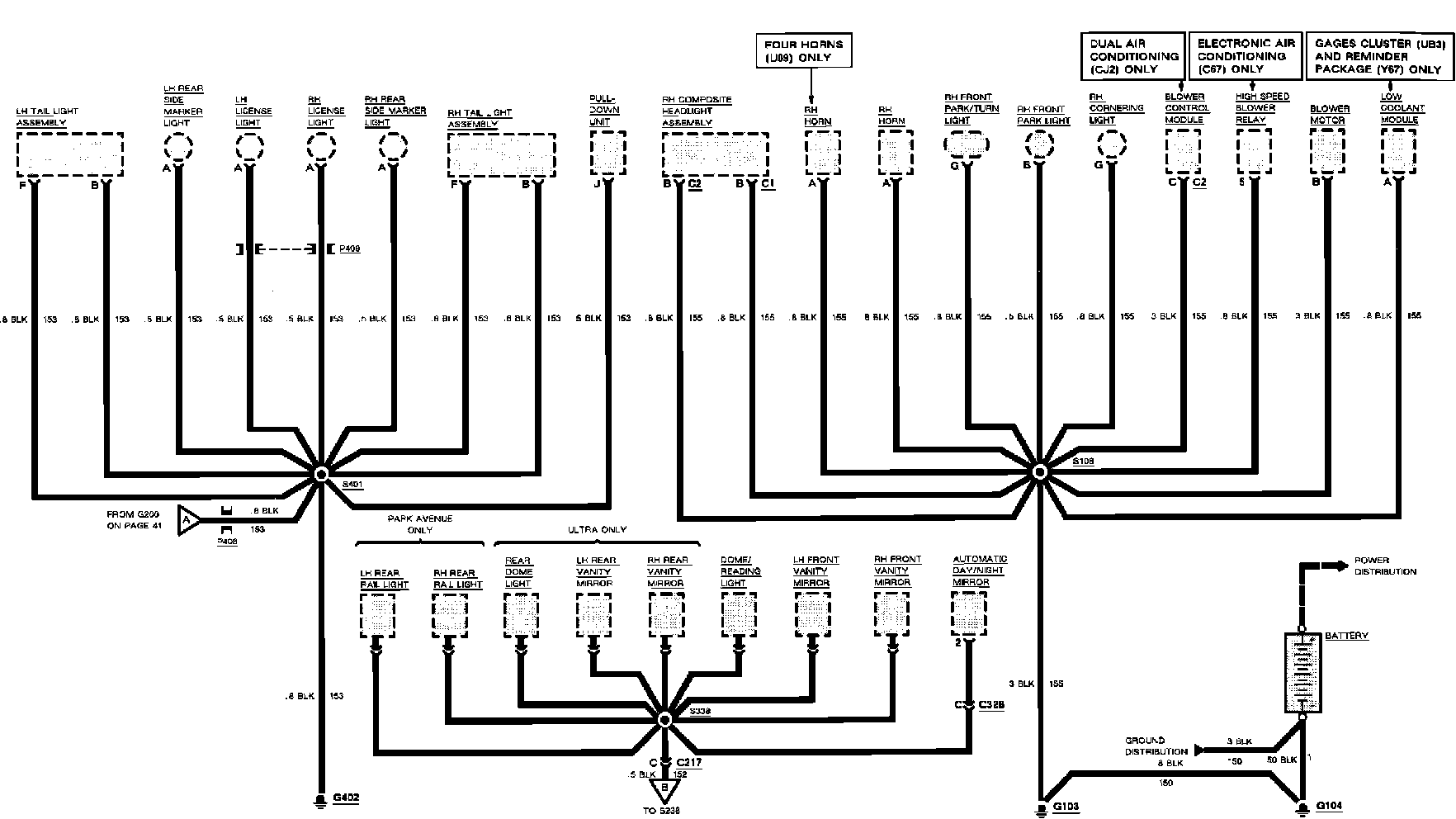

Ground Distribution. G103, G104 & G402:
