Fuse 1
Fuse 1

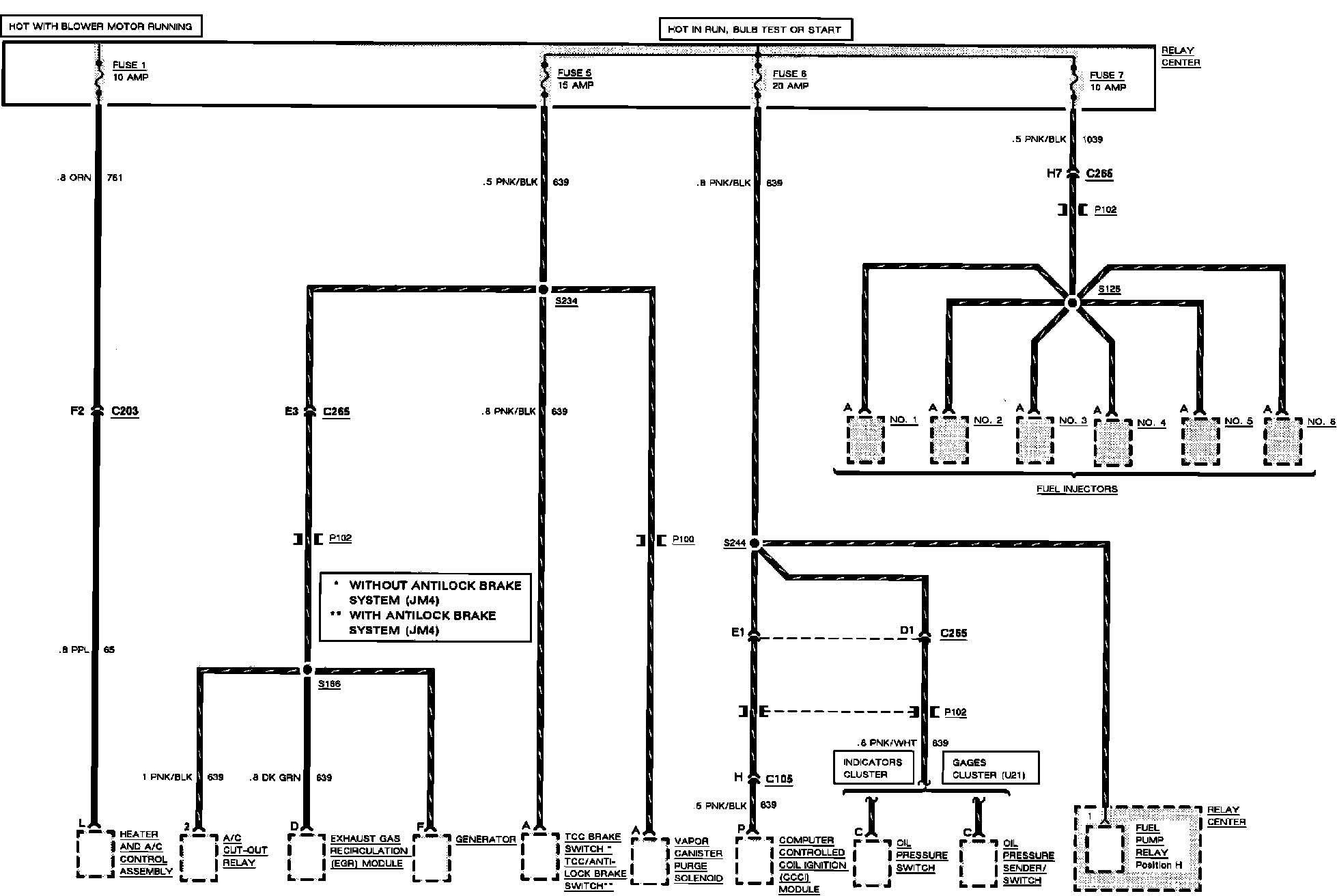

Fuse Panel Details. Fuses 1, 5, 6 & 7:

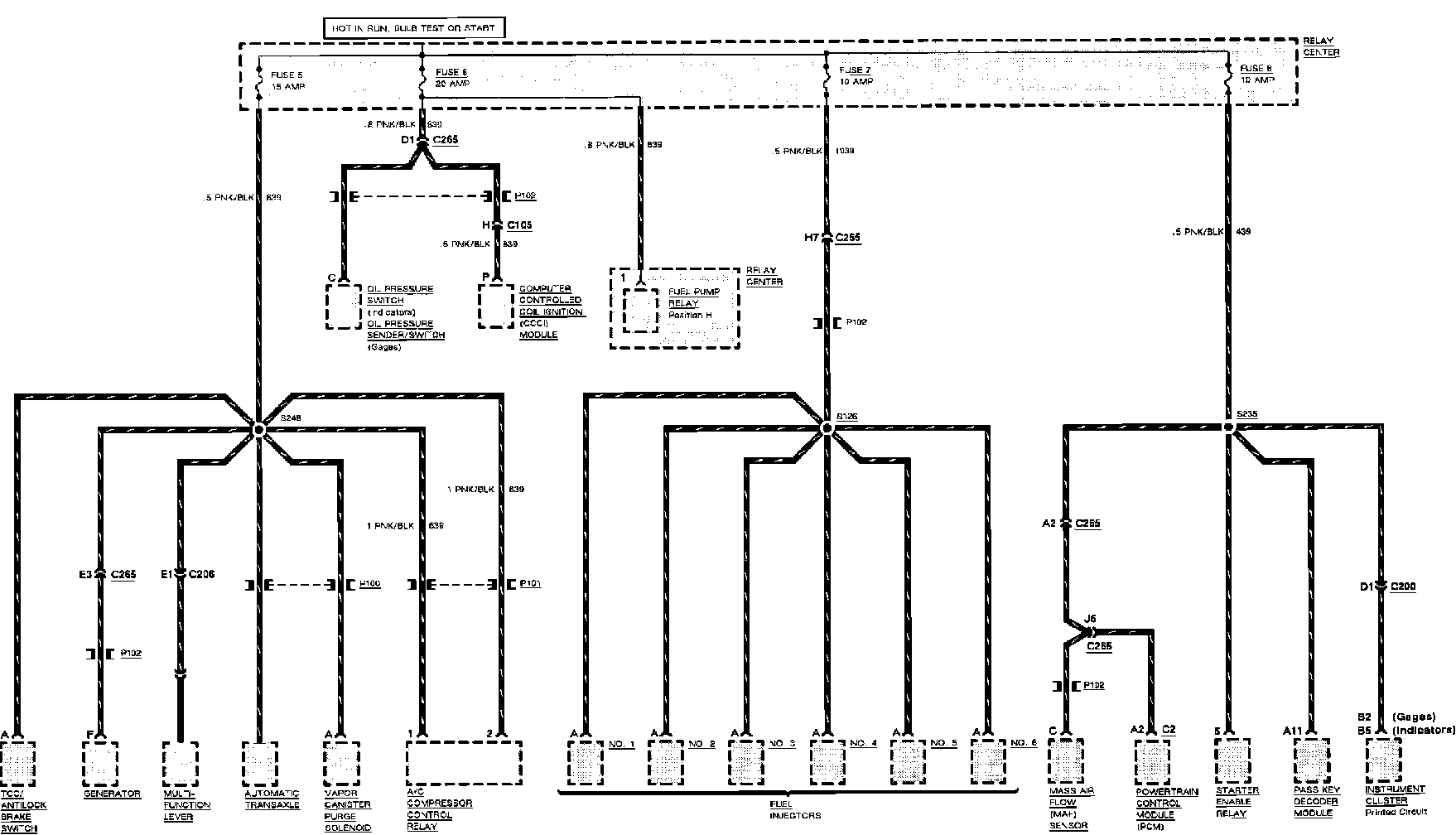

Fuse Panel Details. Relay Center Fuses 5, 6, 7 & 8:
