Engine Data Sensor & Idle Air Control

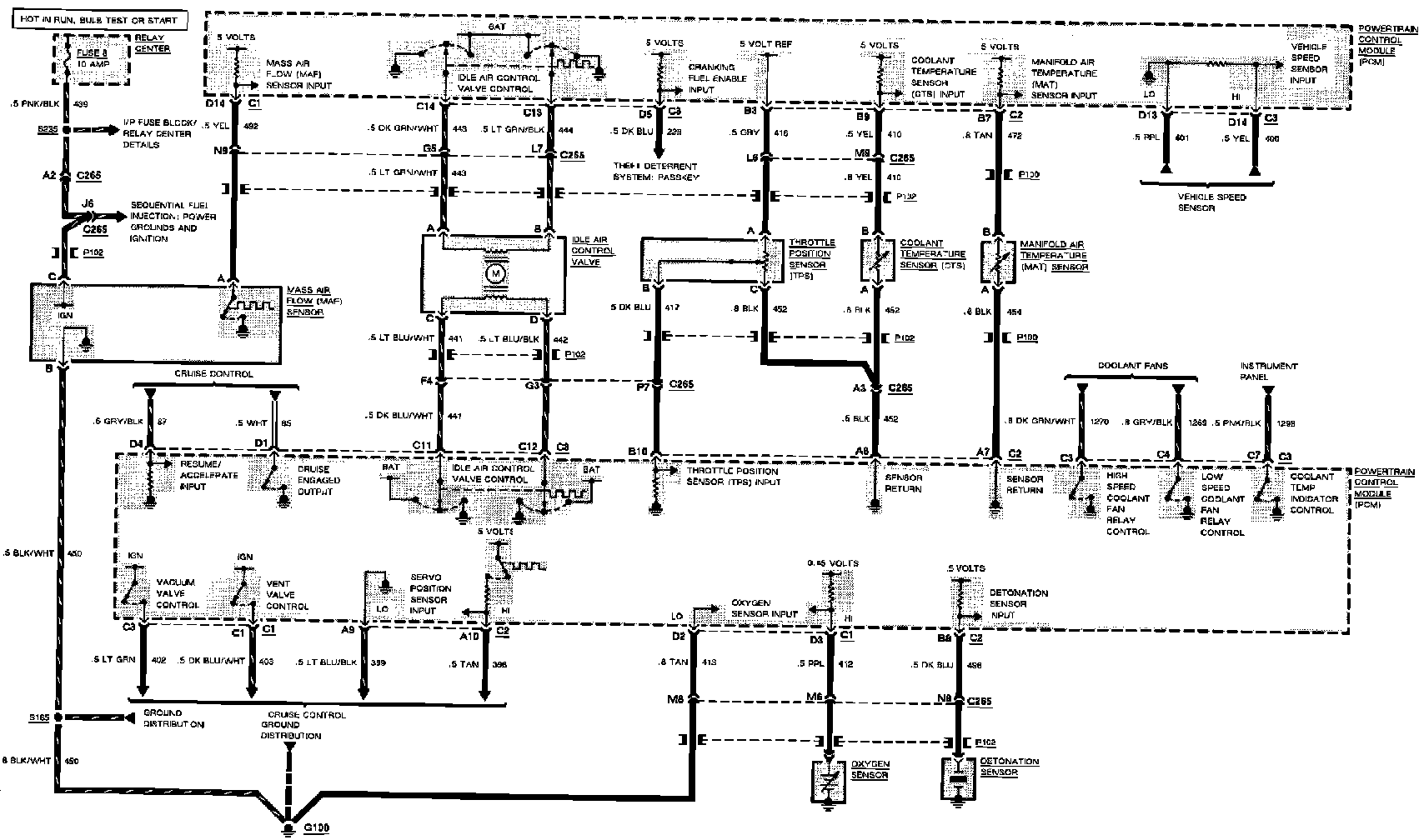

Sequential Fuel Injection. Engine Data Sensor & Idle Air Control:

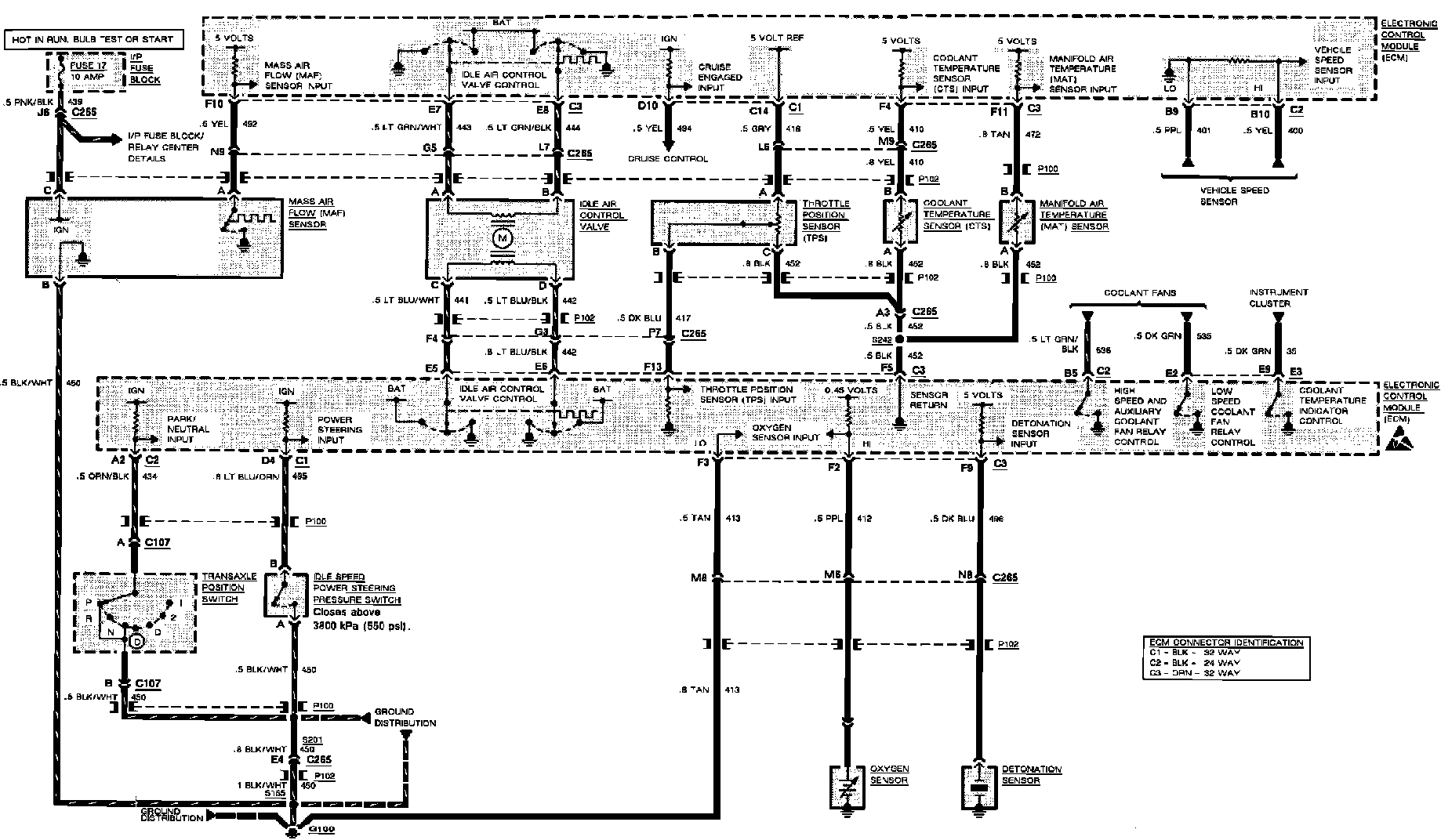

Sequential Fuel Injection. Engine Data Sensor & Idle Air Control:
