Power Distribution Wiring Circuit

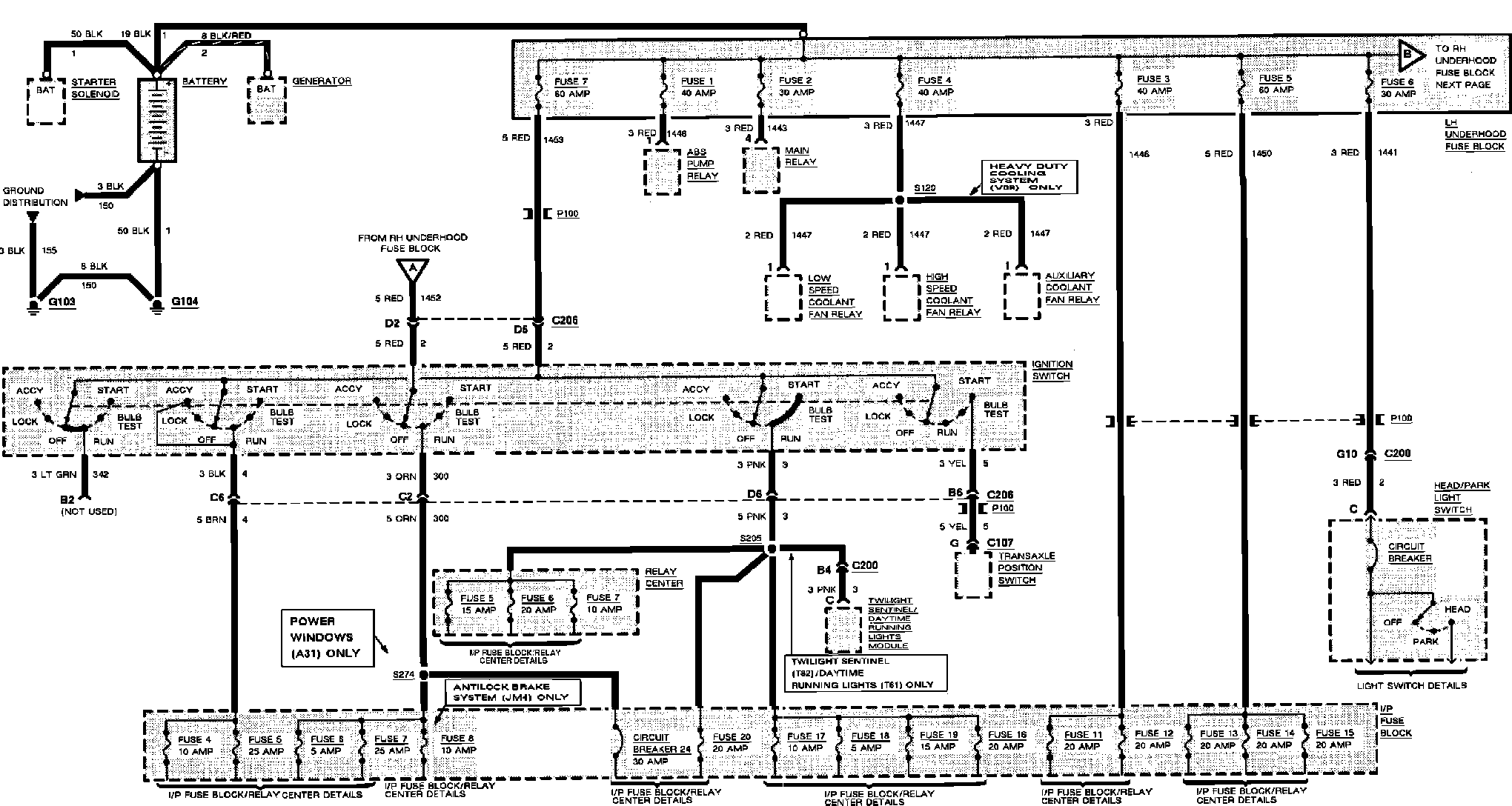

Power Distribution:

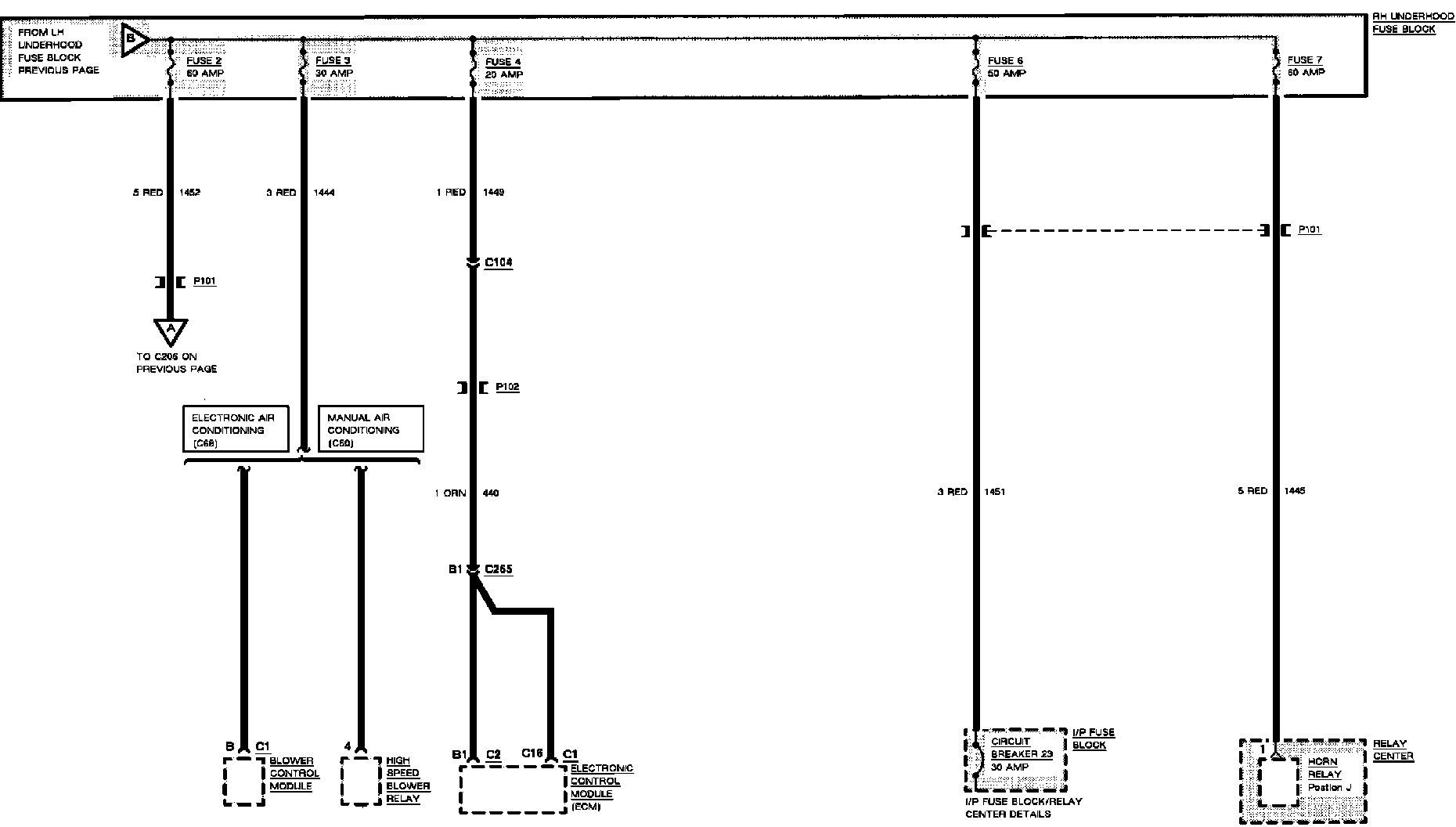

Power Distribution:



Power Distribution:



Power Distribution:



Power Distribution:
