Home
>>
Buick
>>
1991
>>
LeSabre V6-231 3.8L VIN C SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Clean Ground
Clean Ground

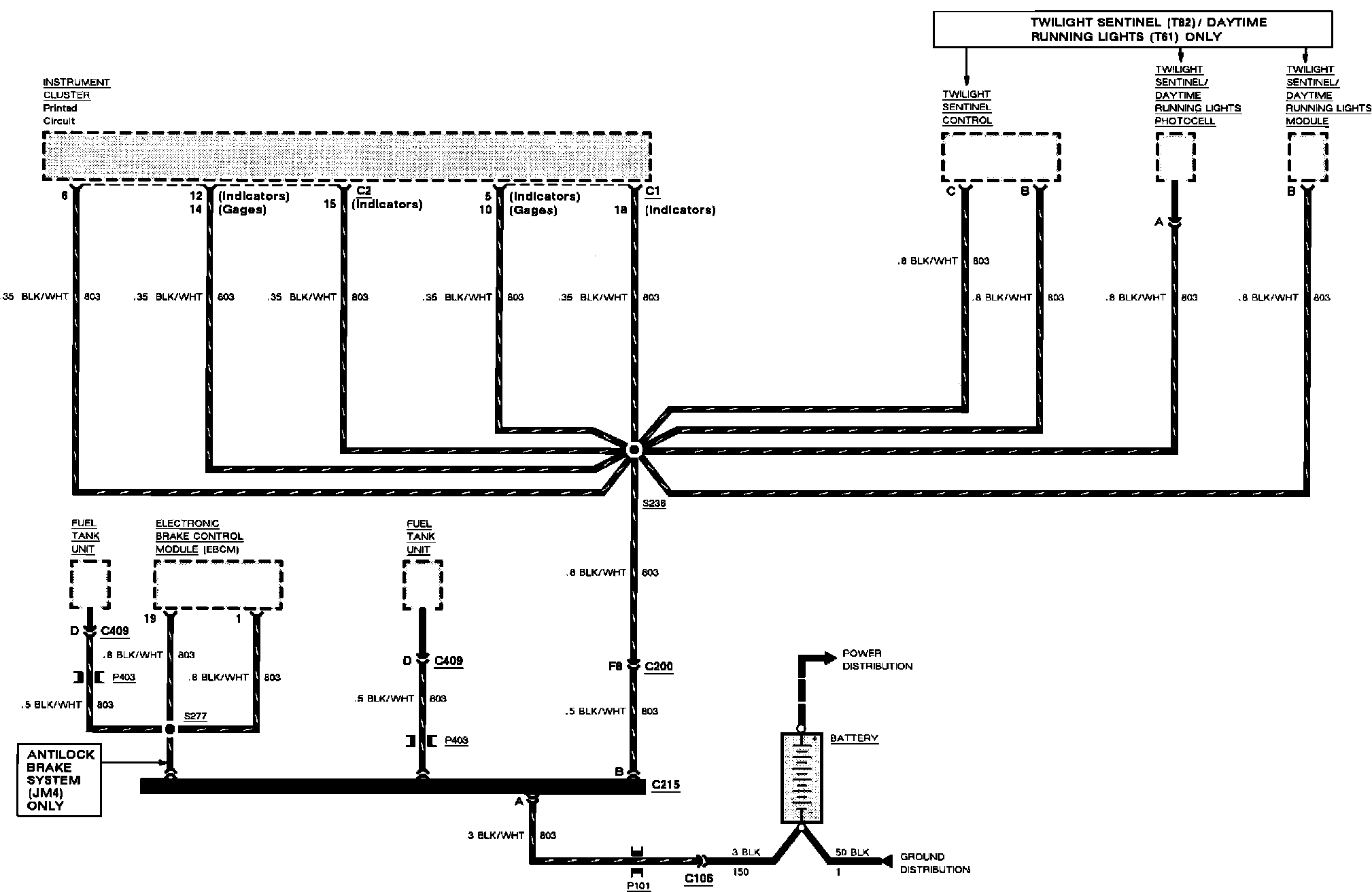

Ground Distribution. Clean Ground:
Ground Distribution. Clean Ground:
