Chart F

Fig. 16 Chart F (Part 1 Of 2). Except DeVille & Fleetwood:

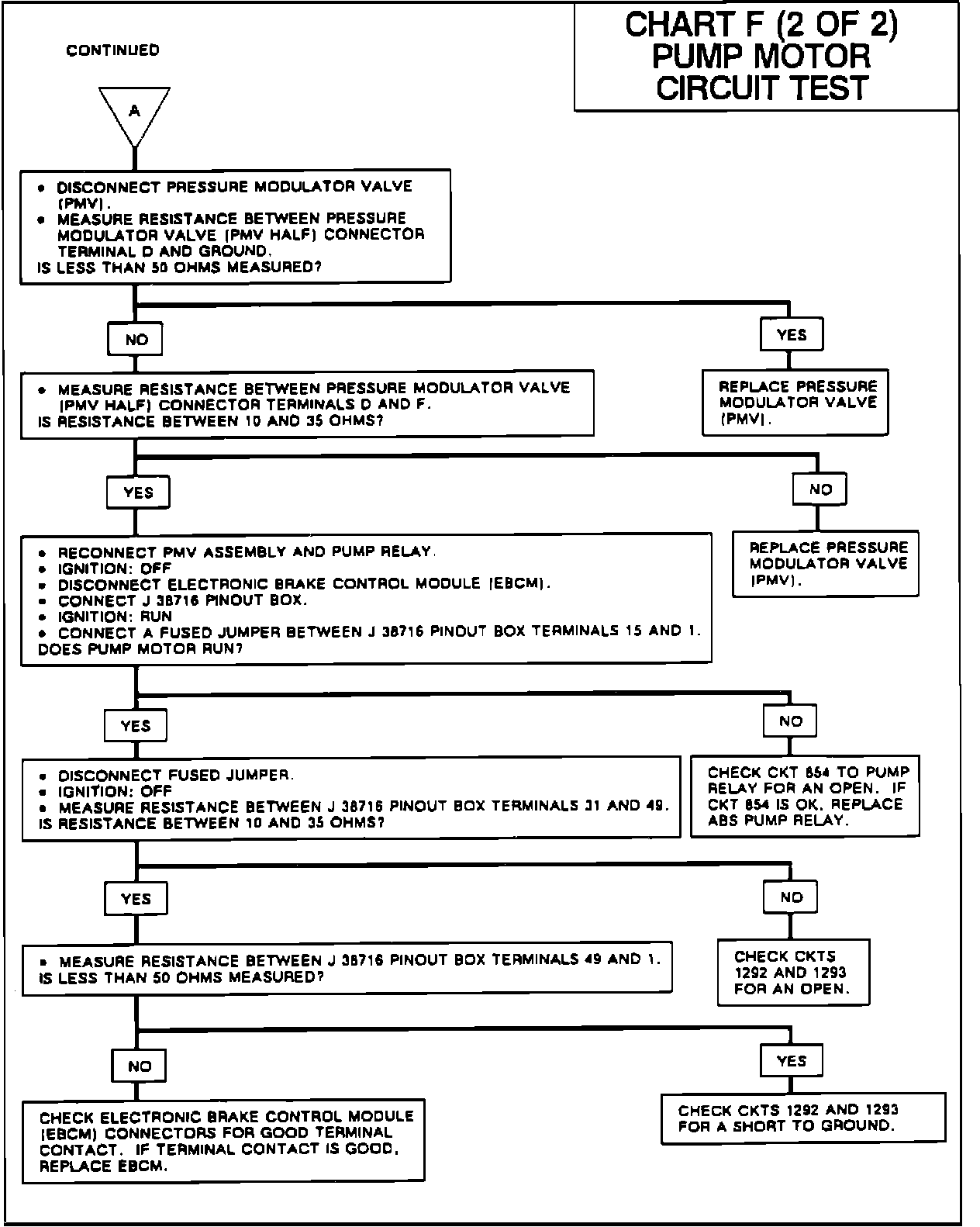

Fig. 16 Chart F (Part 2 Of 2). Except DeVille & Fleetwood:
