Chart A

Fig. 12 Chart A (Part 1 Of 2). Except DeVille & Fleetwood:

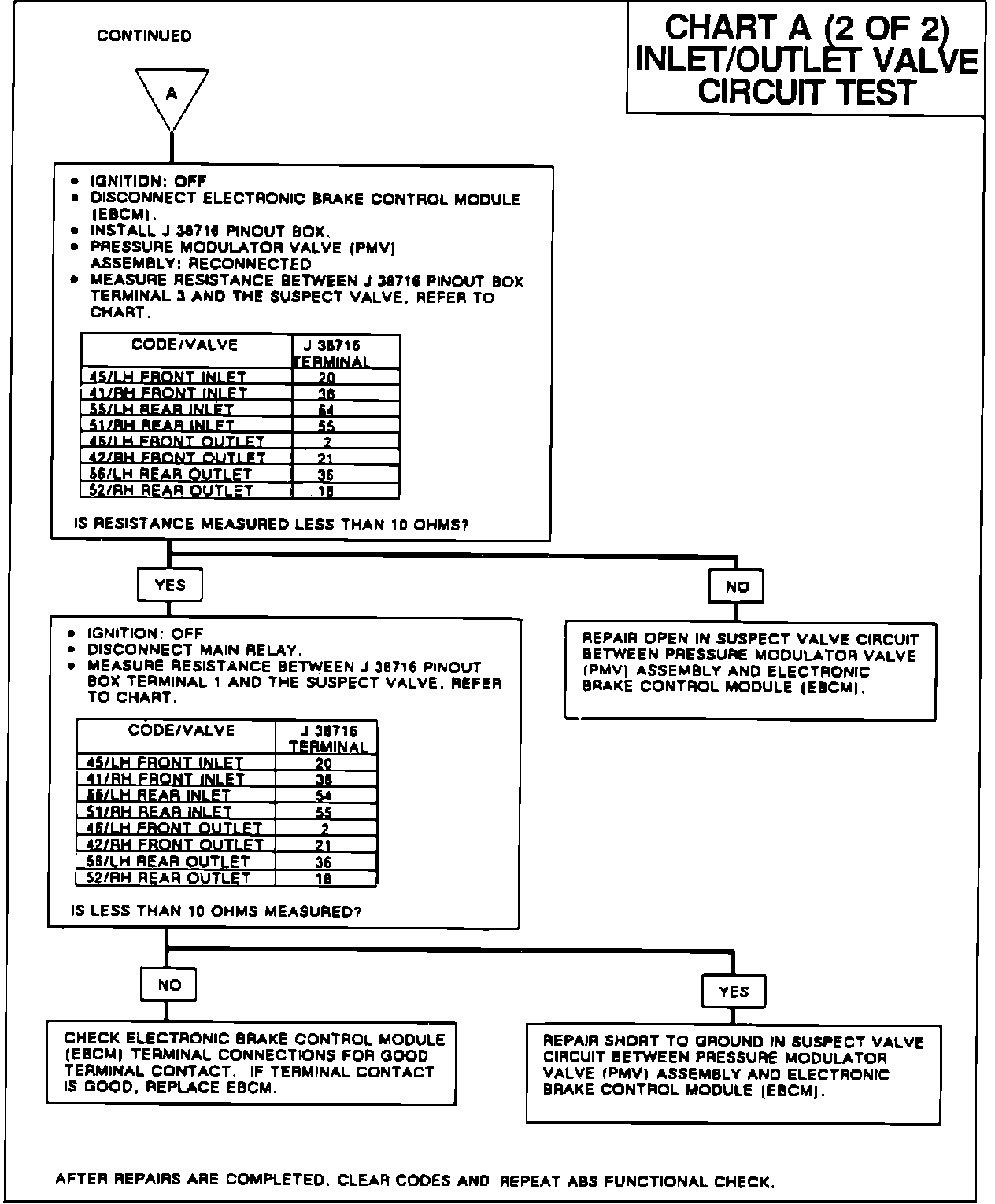

Fig. 12 Chart A (Part 2 Of 2). Except DeVille & Fleetwood:
