Home
>>
Buick
>>
1991
>>
Century V6-204 3.3L VIN N FI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

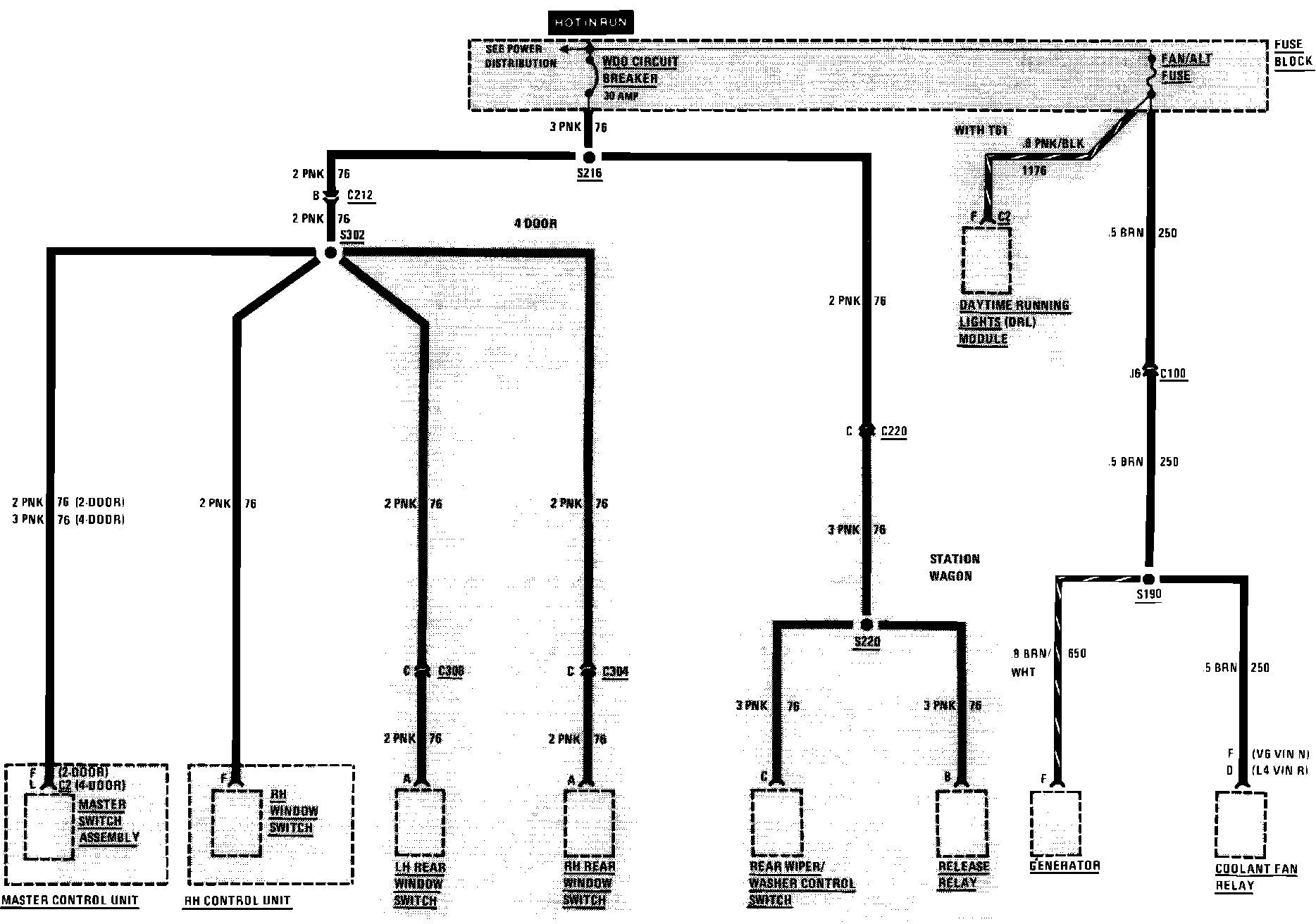

Window Circuit Breaker, Fan/Alternator
Window Circuit Breaker, Fan/Alternator
Fuse Block Details: Fan/Alt Fuse & Window Circtuit Breaker:
