Crankshaft Balancer Removal Tool - Manual Update

9217buick06

Bulletin 91-6A-12

Date Nov. '91

Ref. No. 91-267-6A

Corp. Ref. No. 136121R


SUBJECT:
SERVICE MANUAL UPDATE - SECTION 6A - UPDATED CRANKSHAFT BALANCER REMOVAL TOOL

MODELS AFFECTED:
1991 SKYLARK AND CENTURY MODELS WITH 3300 ENGINE (VIN "N")


SERVICE INFORMATION:

The procedure that follows replaces the one on page 6A6-22 of the 1991 Skylark and Century Service Manuals.

Tools Required:

J 37096 Flywheel Holding Tool
J 38197 Crankshaft Balancer Puller
J 36660 Torque Angle Meter

REMOVE OR DISCONNECT





1. Negative battery cable
2. Raise vehicle and suitably support. Refer to Section 0A.
3. Right front wheel and tire assembly
4. Inner fender splash shield (right side)

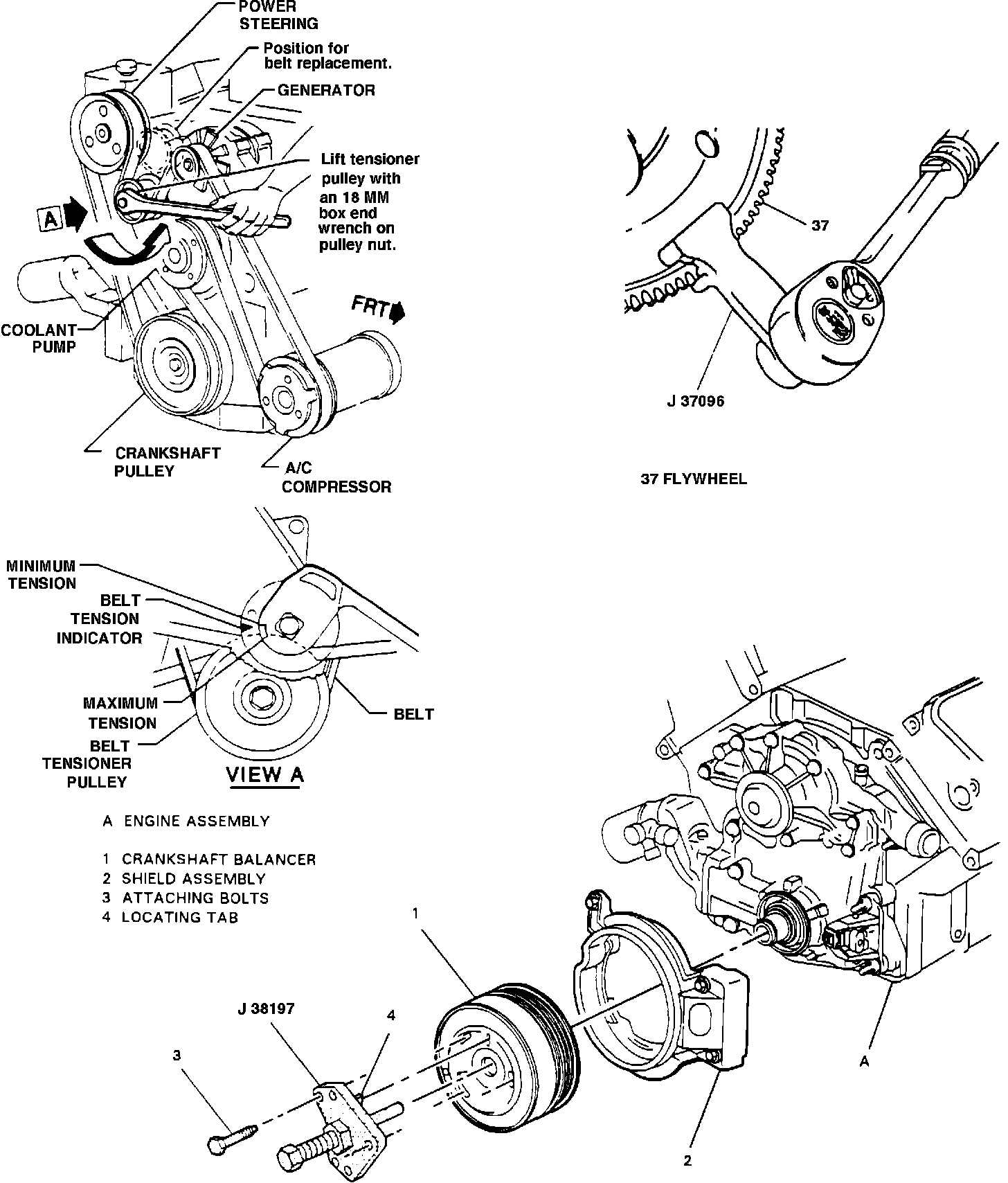

5. Accessory drive belt. (Refer to Figure)
6. Torque converter cover
7. Hold flywheel with J 37096. Refer to Figure.
8. Balancer bolt
9. Crankshaft balancer using J 38197 (Refer to Figure).

IMPORTANT

The balancer is serviced as an assembly. Do not attempt to separate pulley from the balancer hub.

INSTALL OR CONNECT

1. Crankshaft balancer
- Lubricate seal surface with engine oil.
2. Balancer bolt
- Hold flywheel with J 37096. Refer to Figure. Tighten
- Balancer bolt to 150 N-m (110 lbs.ft.), then rotate 76 degrees using J 36660.
3. Inner fender splash shield


4. Right front wheel and tire assembly
5. Torque converter cover
6. Lower vehicle
7. Accessory drive belt (Refer to Figure)
8. Negative battery cable
