Engine Controls - Revised Diagnostics Added Code 32, EGR

9222buick04

Bulletin: 89-6E-12

Date: June, '89

Ref. No.: 89-166-6E

Corp. Ref. No.: 916515


SUBJECT:
SERVICE MANUAL UPDATE - SECTION 6E2 - DRIVEABILITY AND EMISSIONS


MODELS AFFECTED:
1989 SKYLARKS WITH 2.5L ENGINE (VIN CODE U)

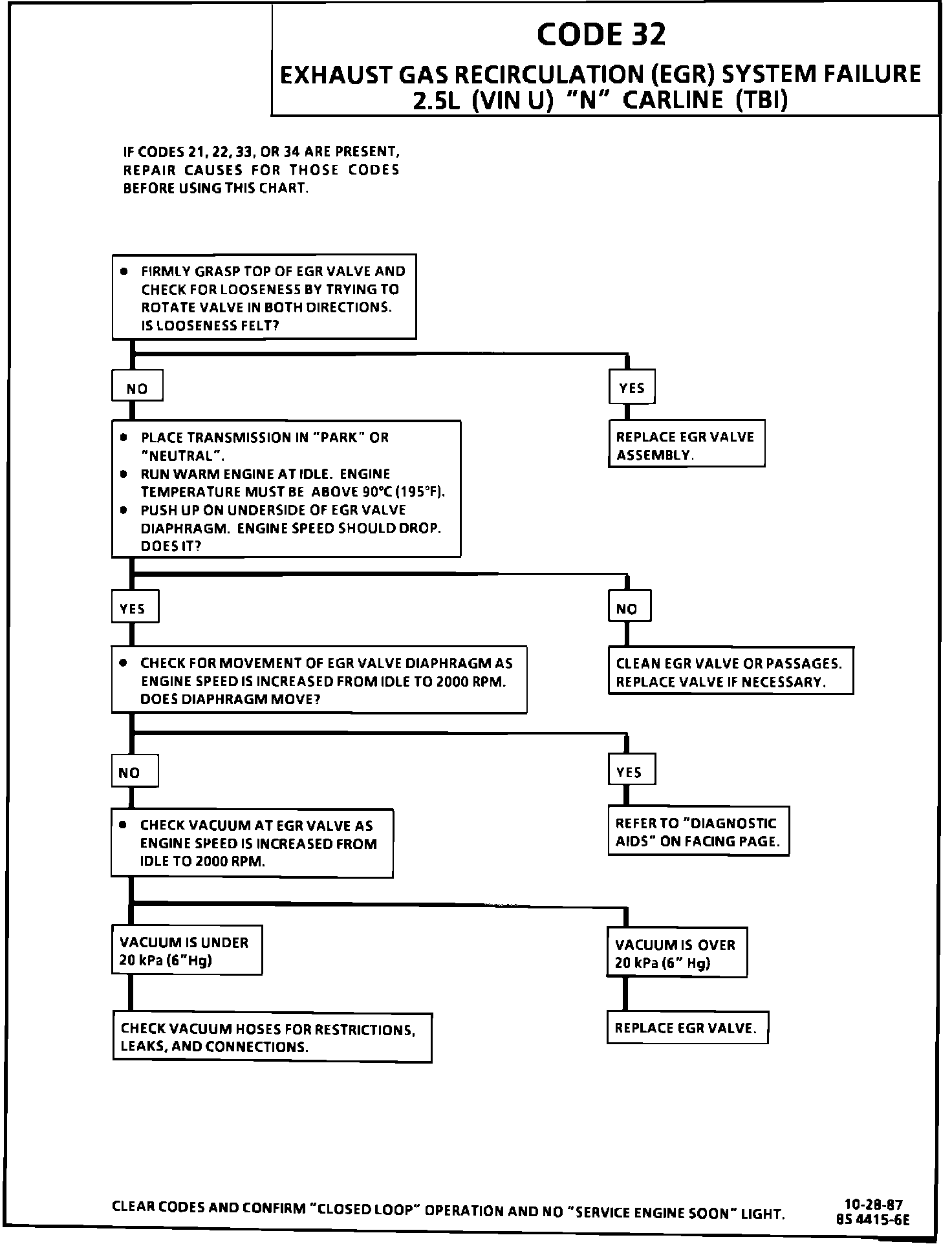

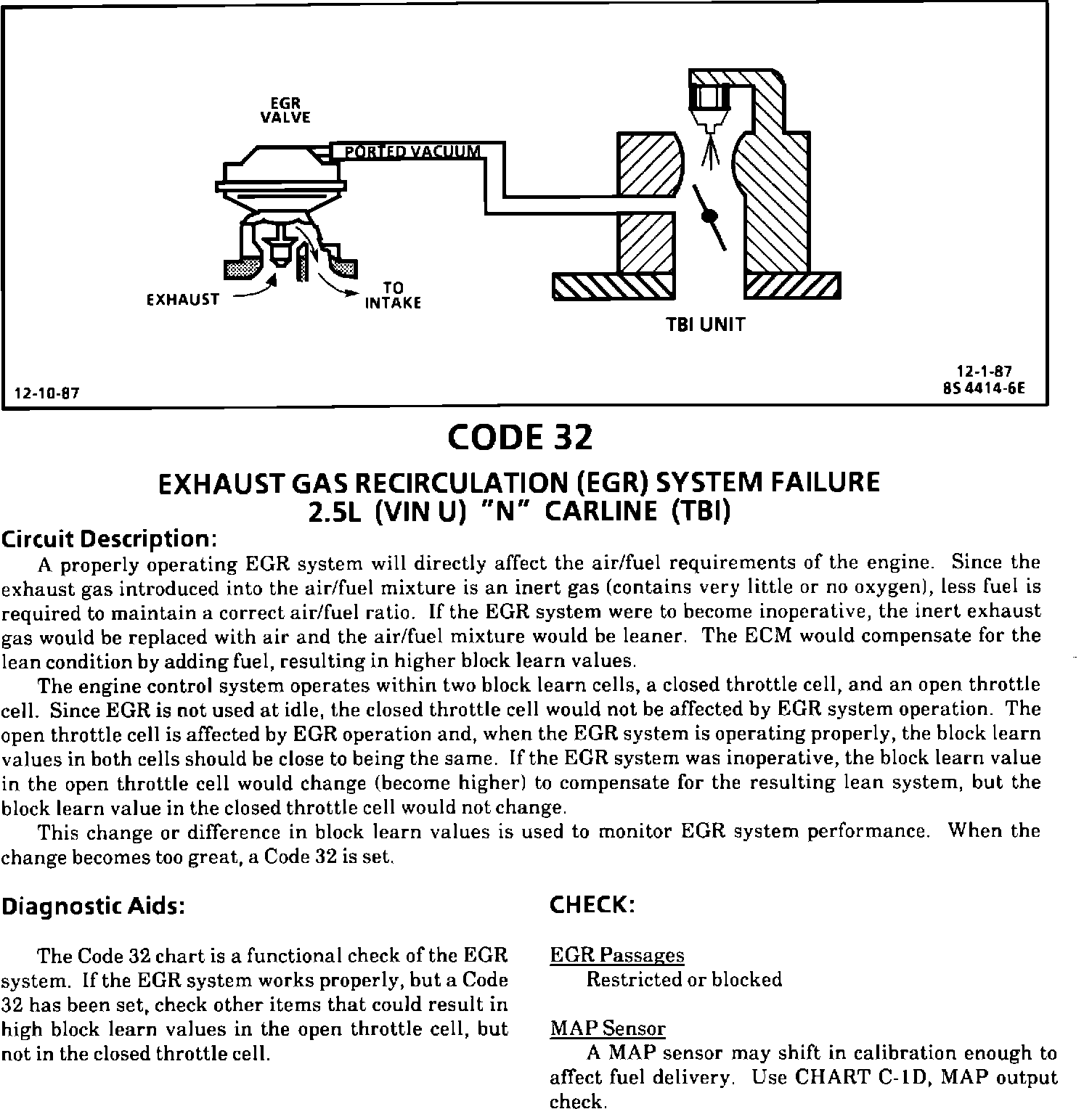

This bulletin is to add Code 32 Chart to Section 6E2 "Driveability and Emissions" to the 1989 2.5L (VIN Code U) Skylark Service Manual. Please refer to this bulletin when diagnosing Code 32 on these vehicles. Included with this bulletin is the Code 32 Diagnostic Chart and the corresponding Facing Page.
