Buick
>>
1989
>>
Skylark L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G105
G105

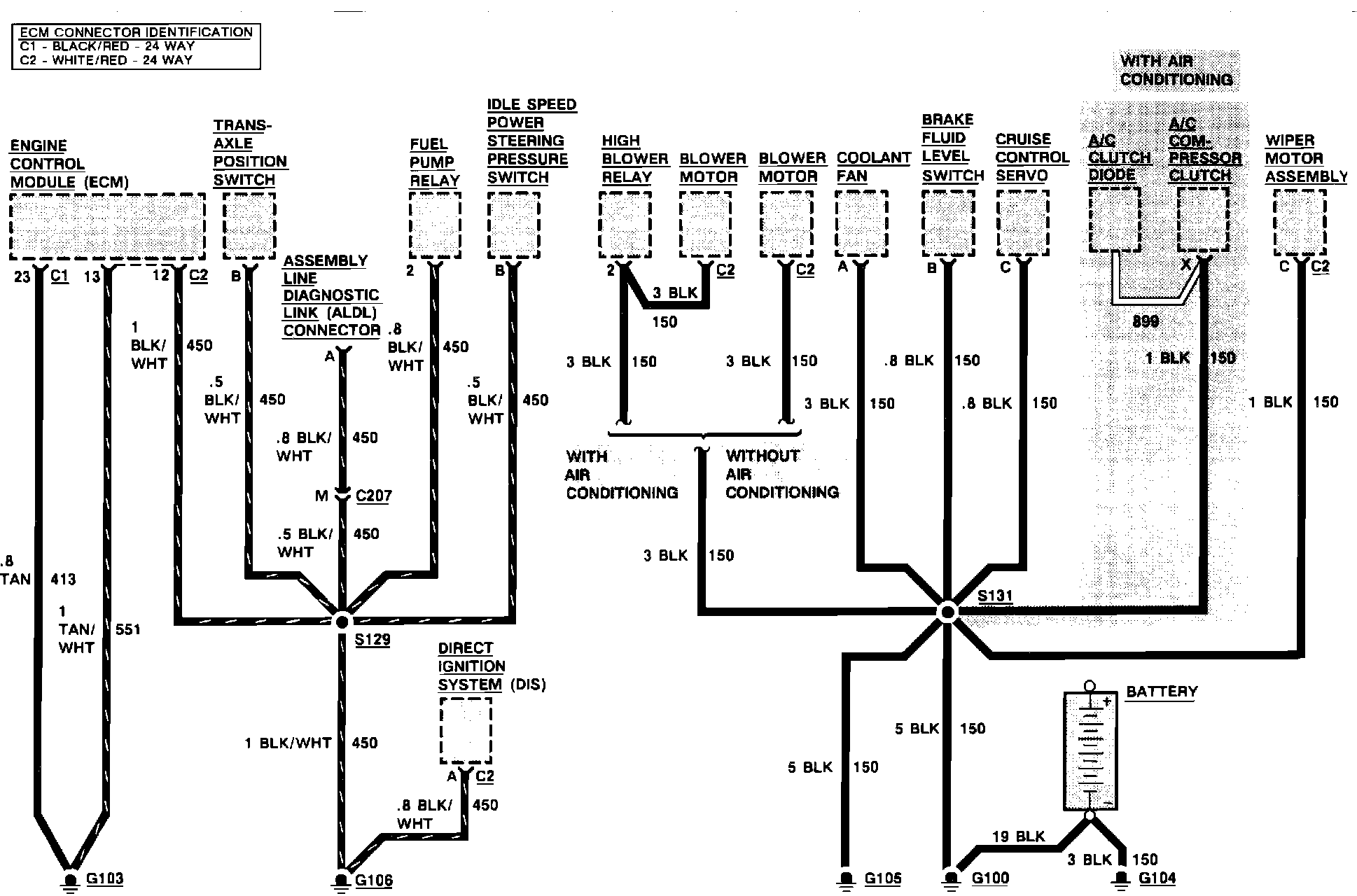

Ground Distribution (G100, G103, G104, G105 & G106):
