Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G101
>>
2 Door
2 Door

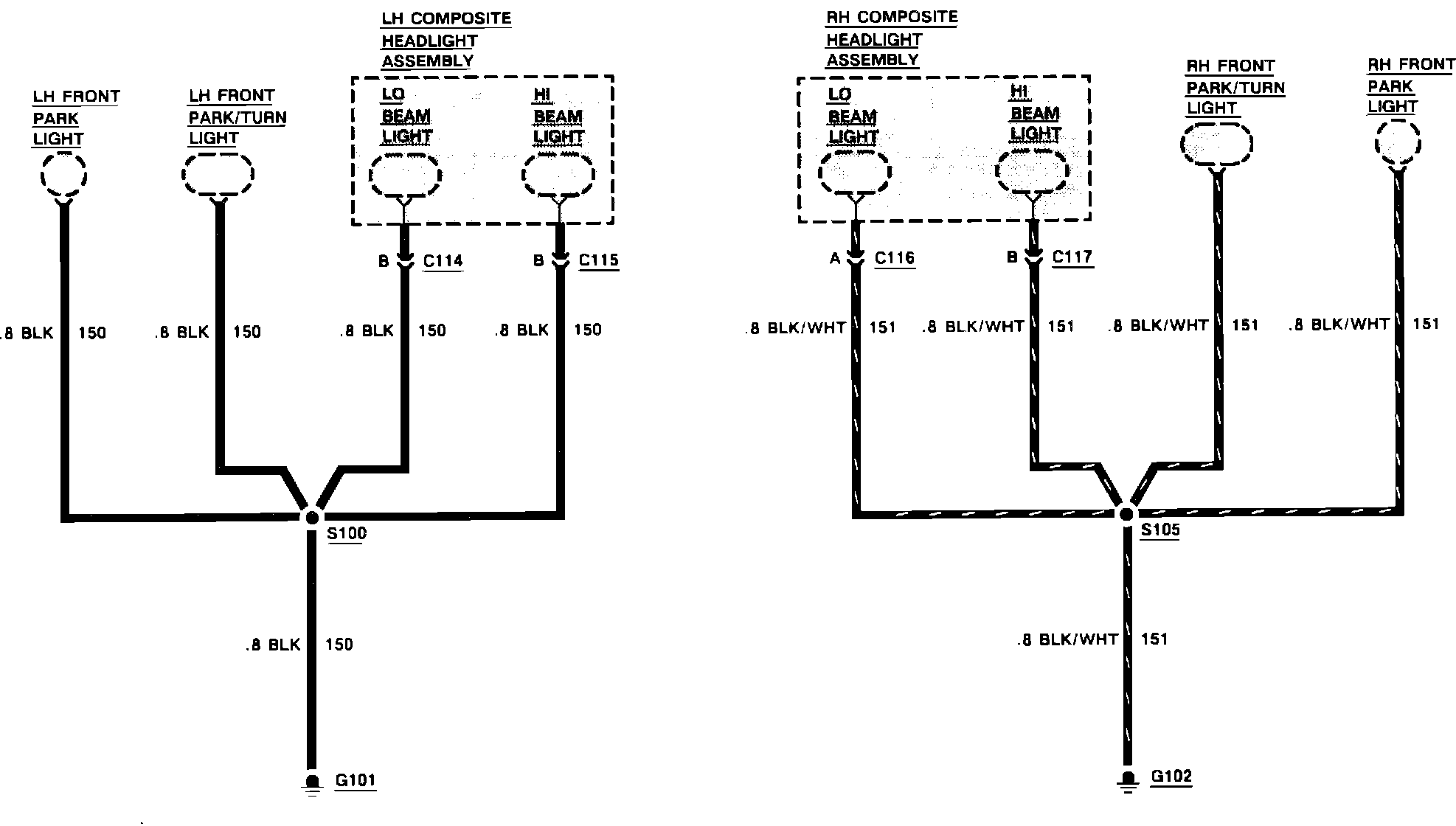

Ground Distribution (G101 & G102):
