Engine Mount: Service and Repair

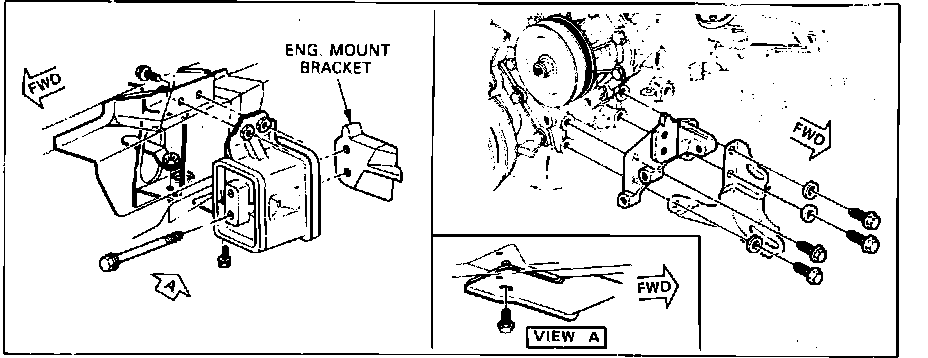

Fig. 1 Front Engine Mount:

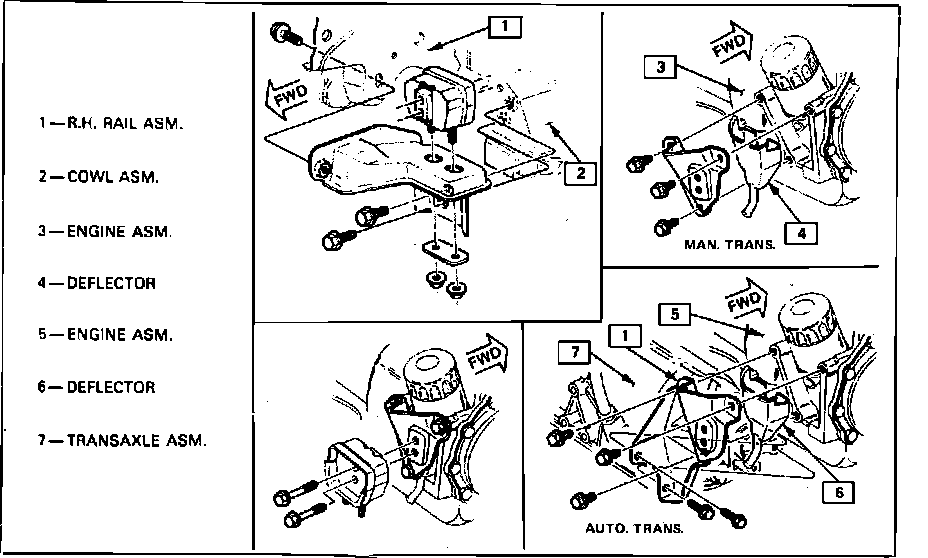

Fig. 2 Rear Engine Mount:

FRONT MOUNT
1. Support engine using fixture No. J 28467-A or equivalent.
2. Raise and support vehicle.
3. Remove engine mount to chassis attaching bolts, Fig. 1., then engine mount to bracket nuts from rear mount, Fig. 2.
4. Remove engine mount to engine bracket bolts.
5. Remove engine mount.
6. Reverse procedure to install.

REAR MOUNT
1. Support engine using fixture No. J 28467-A or equivalent.
2. Raise and support vehicle.
3. Remove engine mount to chassis bracket nuts, Fig. 2.
4. Remove engine mount to engine bracket bolts.
5. Remove engine mount.
6. Reverse procedure to install.
