Home
>>
Buick
>>
1989
>>
Skylark L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Courtesy Lamps
Courtesy Lamps

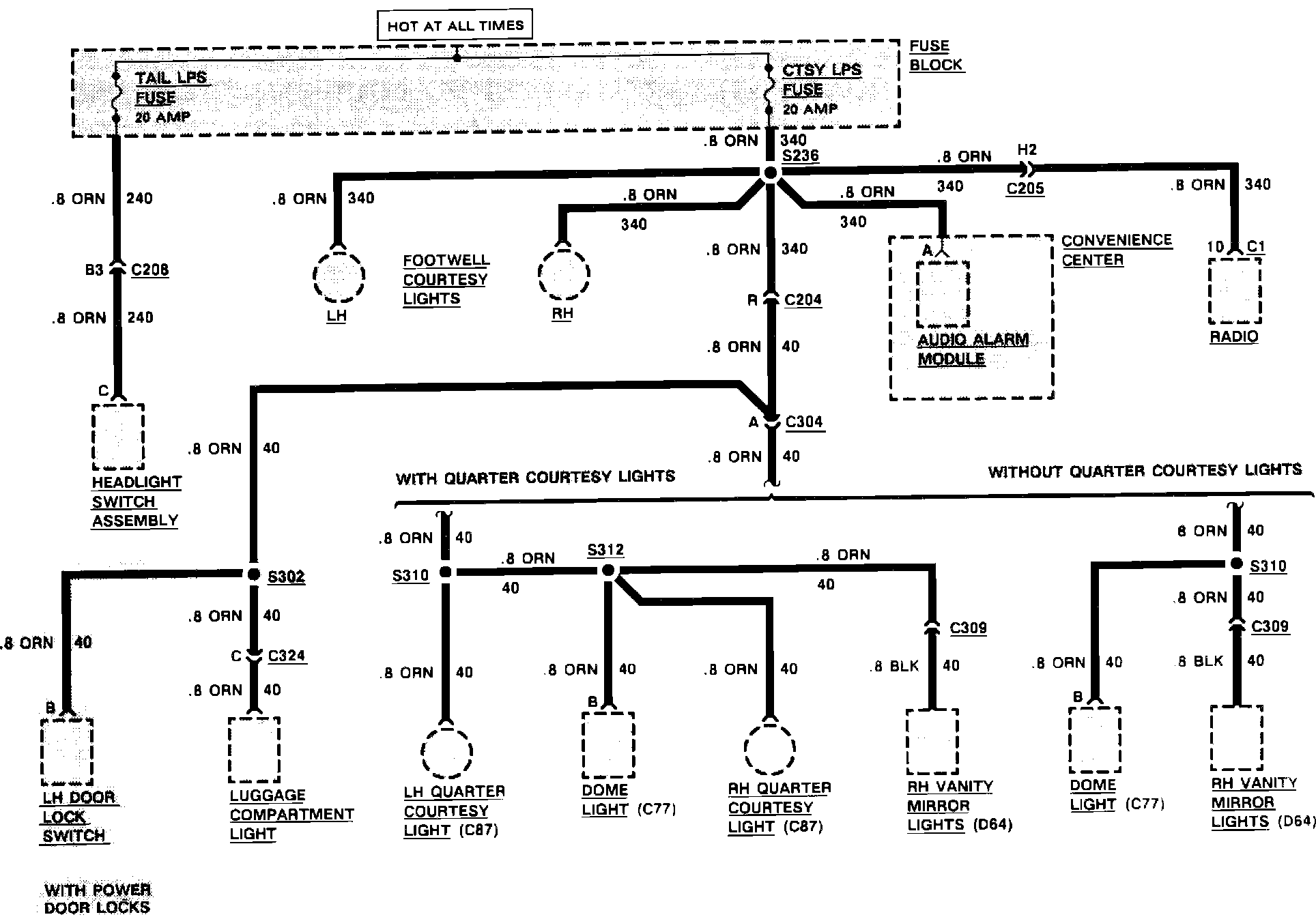

Fuse Block Details (Courtesy Lamps & Tail Lamps):
