Engine Controls - Revised Diagnostic Chart A3, No Start
89buick08Bulletin 89-6E-11
Date May, '89
Ref. No. 89-116-6E
Corp. Ref. No. 916509
SUBJECT: SERVICE MANUAL UPDATE-SECTION 6E-DRIVEABILITY AND EMISSIONS/REVISED CHART A-3
MODELS AFFECTED: 1989 SKYLARKS EQUIPPED WITH 2.3L ENGINES (VIN CODE D)

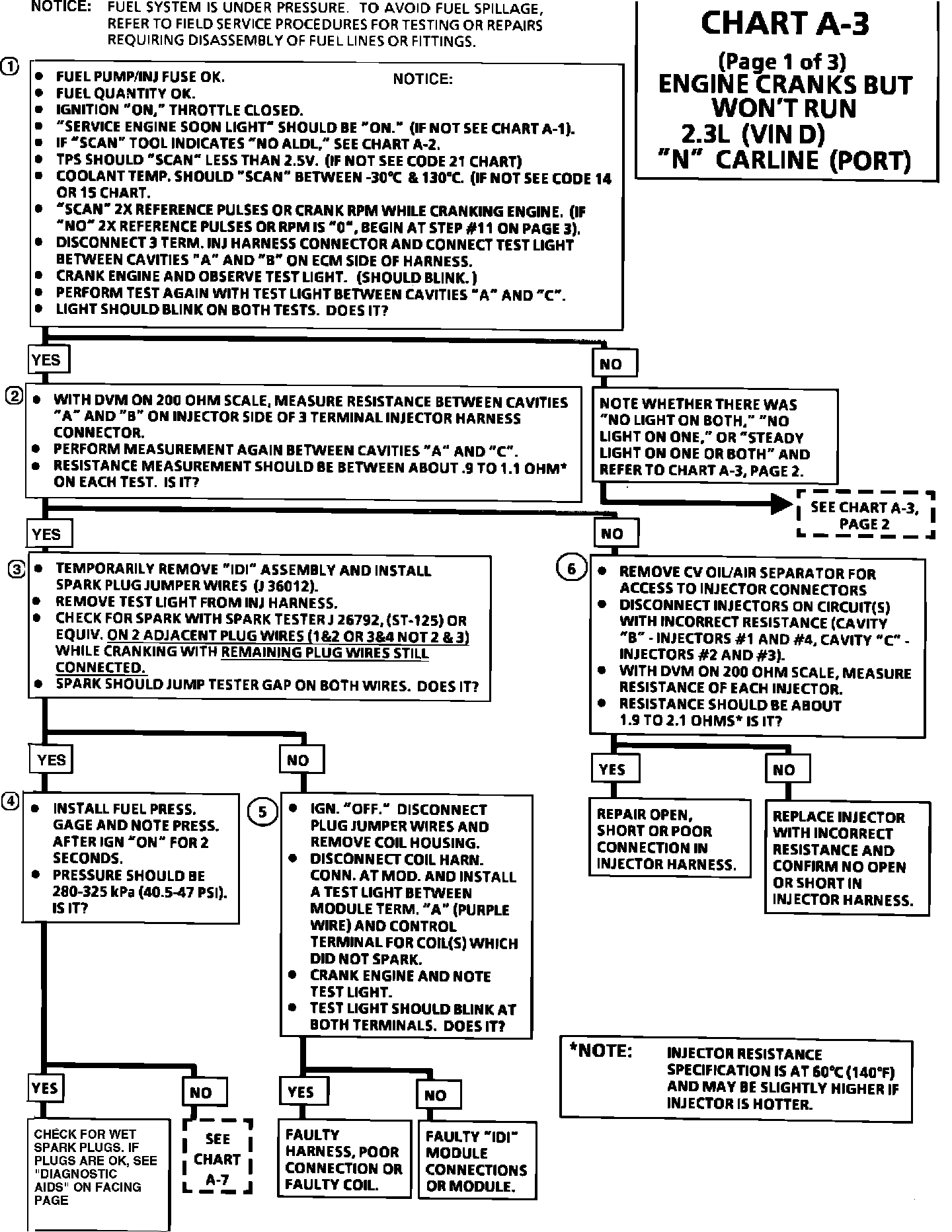

The A-3 Diagnostic Chart (Page 1 of 3) is revised to identify the correct beginning step to follow after No RPM or 2X Signal is received.
This Chart replaces the present Chart A-3 (Page 1 of 3) "Engine Cranks But Won't Run", found in Section 6E "Driveability and Emissions" in Buicks 1989 Skylark Service Manual for 2.3L engines (VIN Code D).
