Engine Controls - Revised Chart C-10, A/C Clutch

9222buick04

Bulletin: 89-6E-13

Date: June, '89

Ref. No.: 89-168-6E

Corp. Ref. No.: 916517


SUBJECT:
SERVICE MANUAL UPDATE - SECTION 6E3 - DRIVEABILITY AND EMISSIONS


MODELS AFFECTED:
1988-89 SKYLARKS WITH 2.3L ENGINE (VIN CODE D)


This bulletin serves to update Chart C-10 facing page and chart and to add Chart C-10 (Page 2 of 2) facing page and chart in Section 6E3 "Driveability and Emissions" to the 1988 and 1989 Skylark Service Manuals with 2.3L engine (VIN Code D) applications.

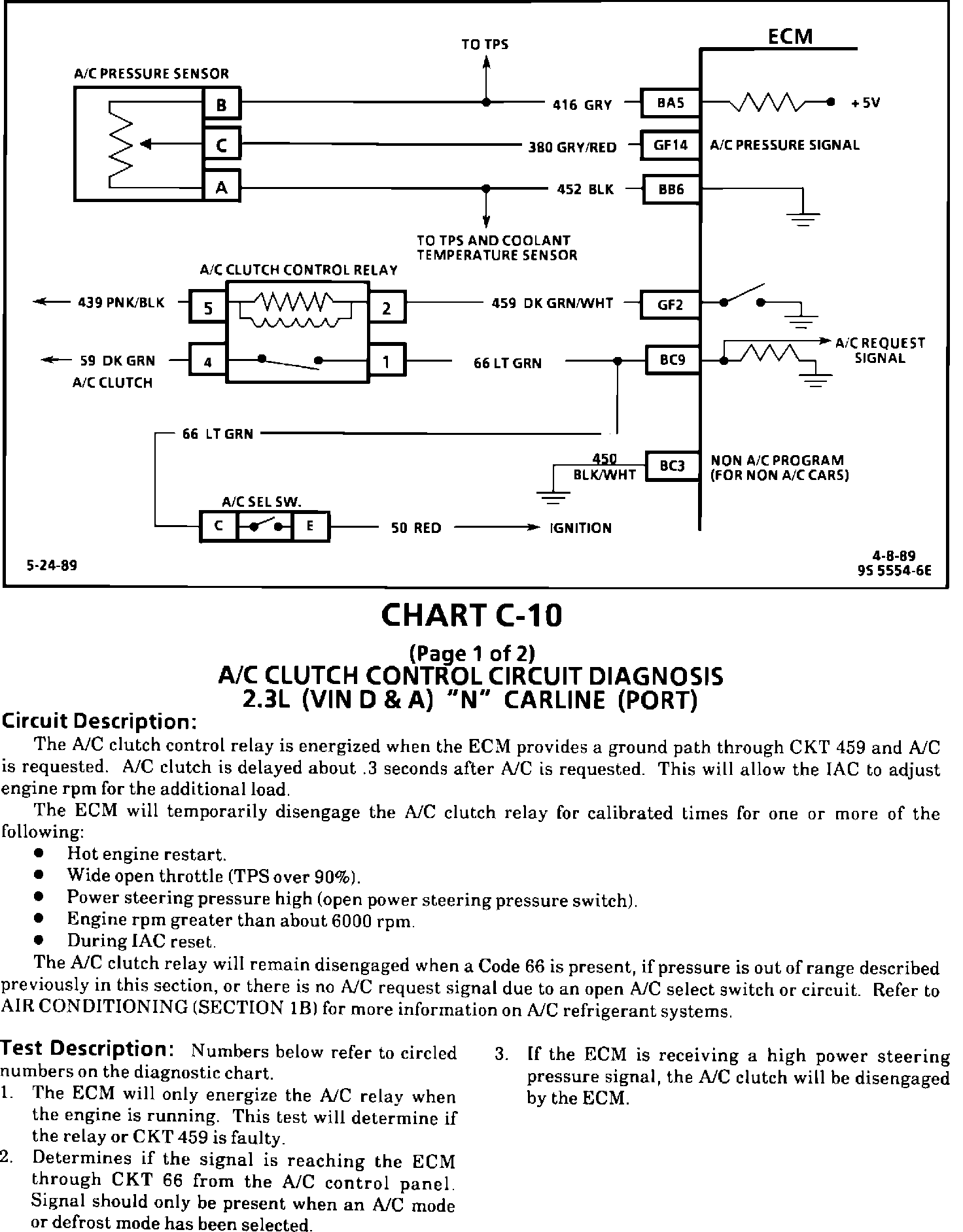

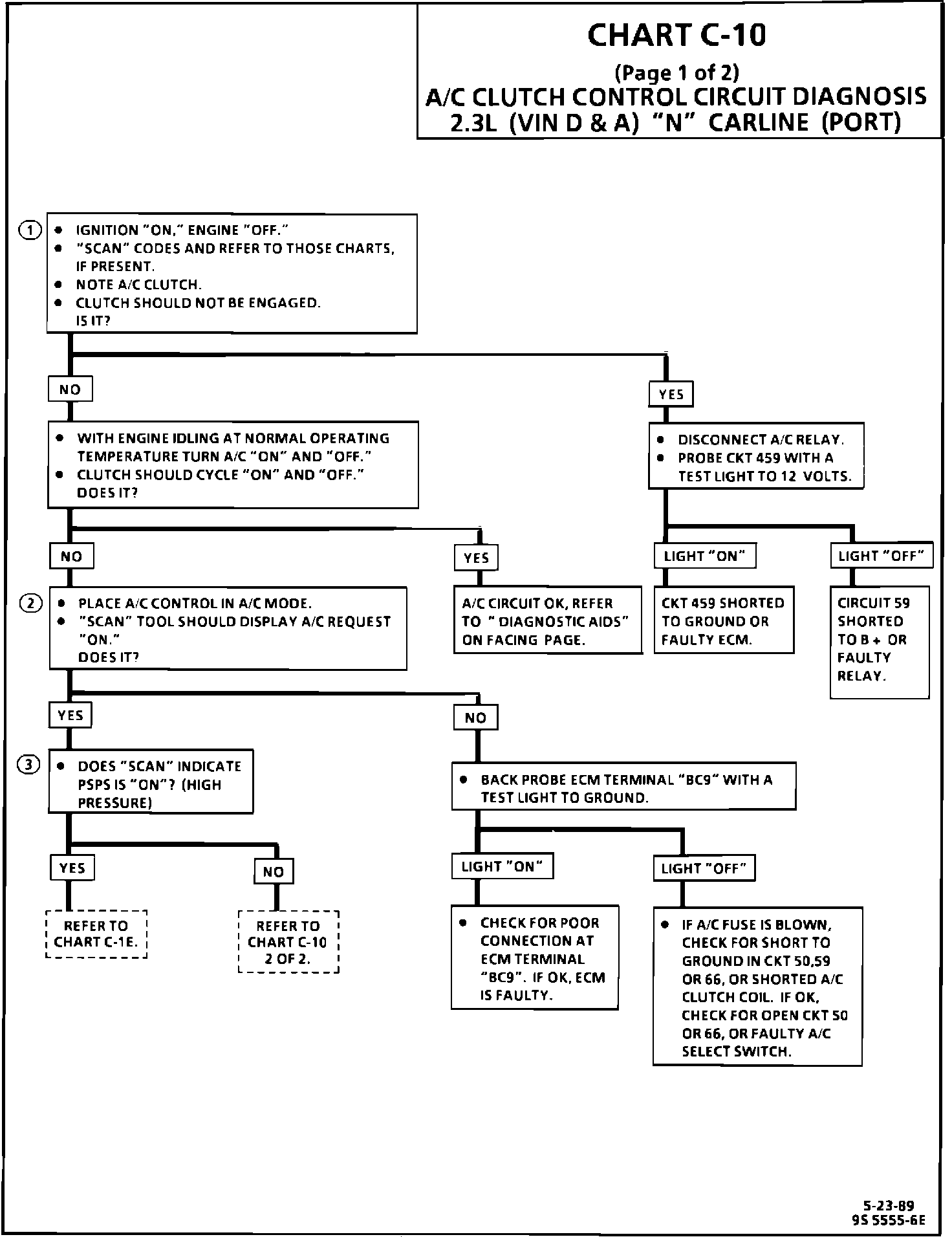

Part 1 of 2

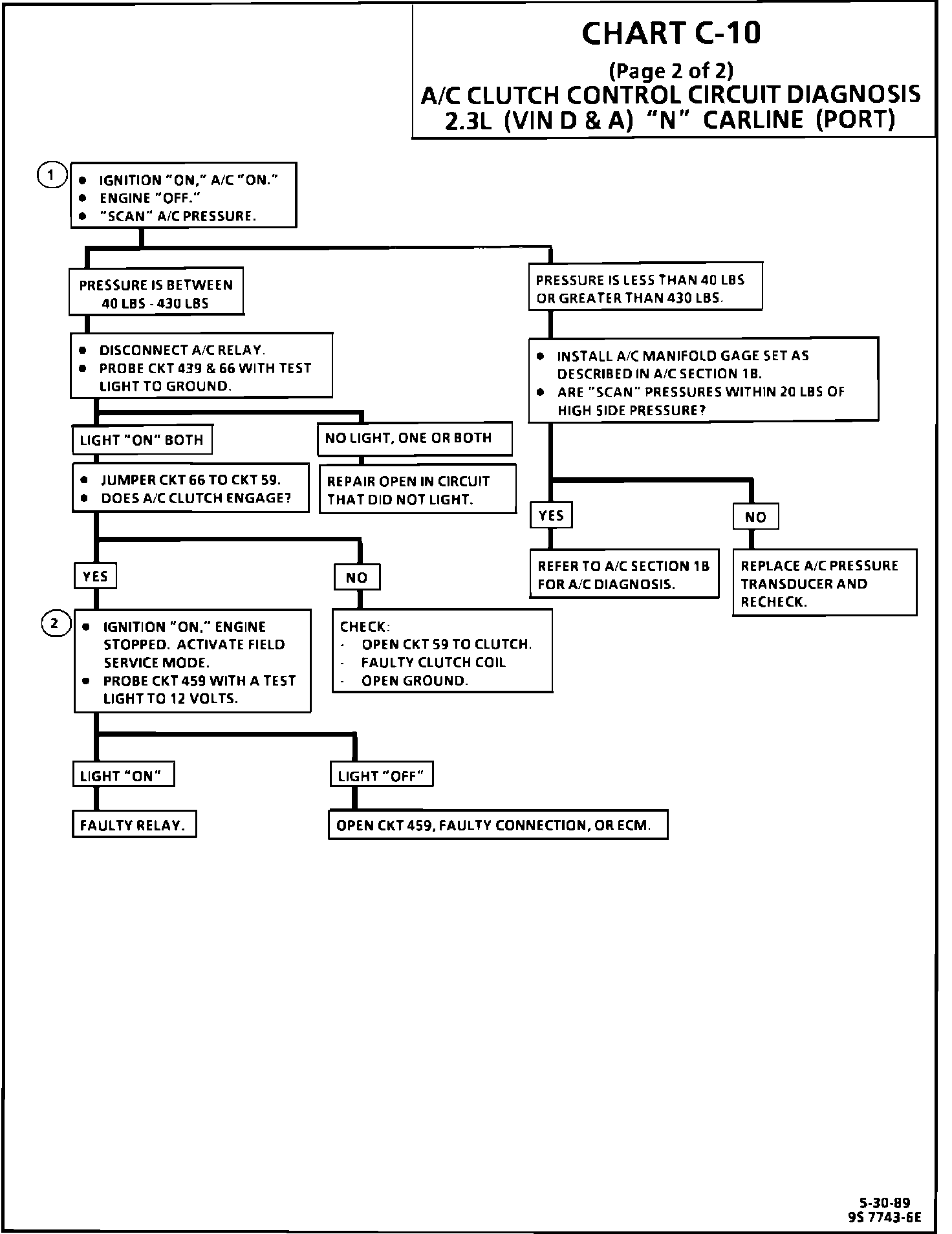

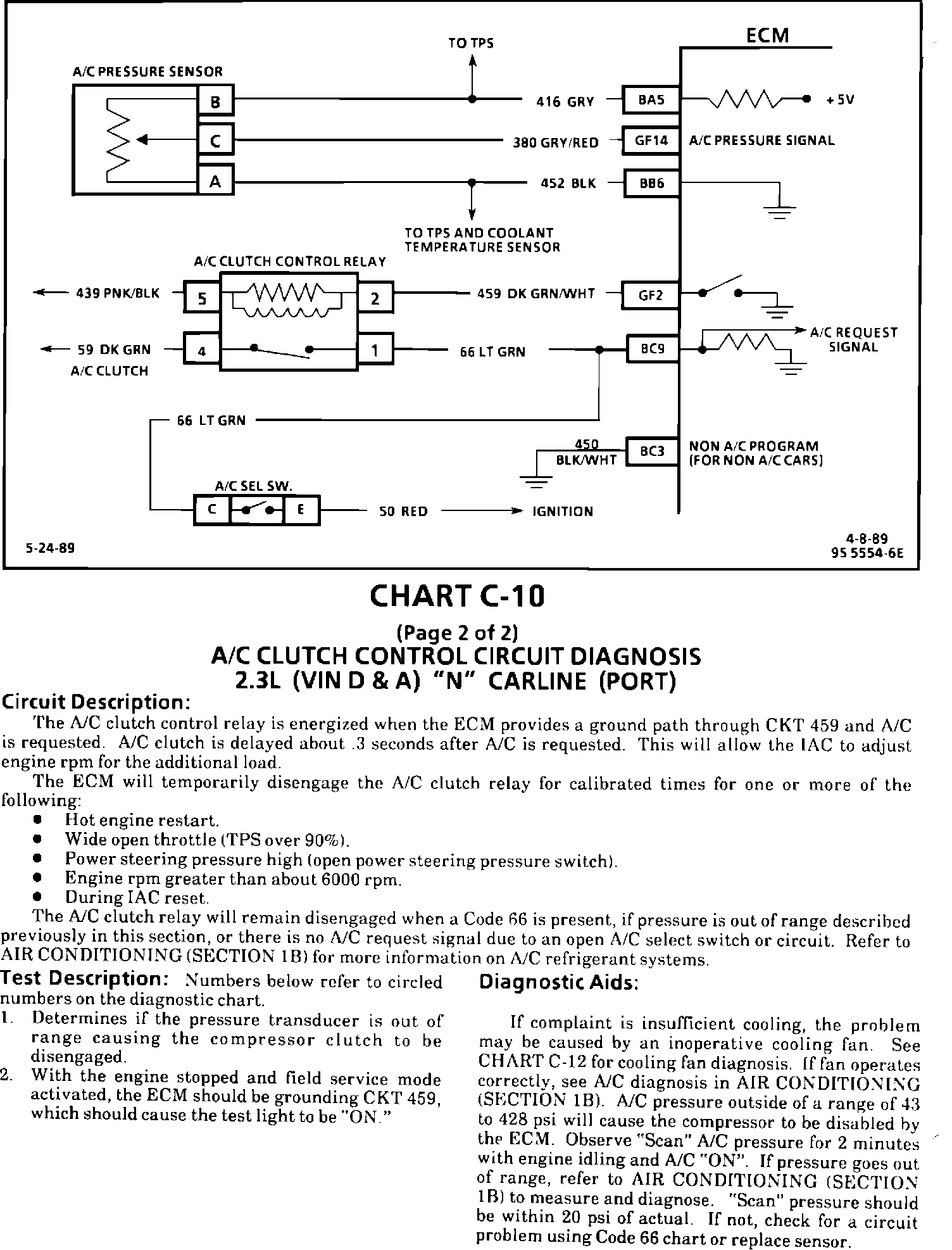

Part 2 of 2
