Home
>>
Buick
>>
1989
>>
Skyhawk L4-121 2.0L VIN 1 TBI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Radio Fuse, S/LP Fuse, Wiper Fuse
Radio Fuse, S/LP Fuse, Wiper Fuse

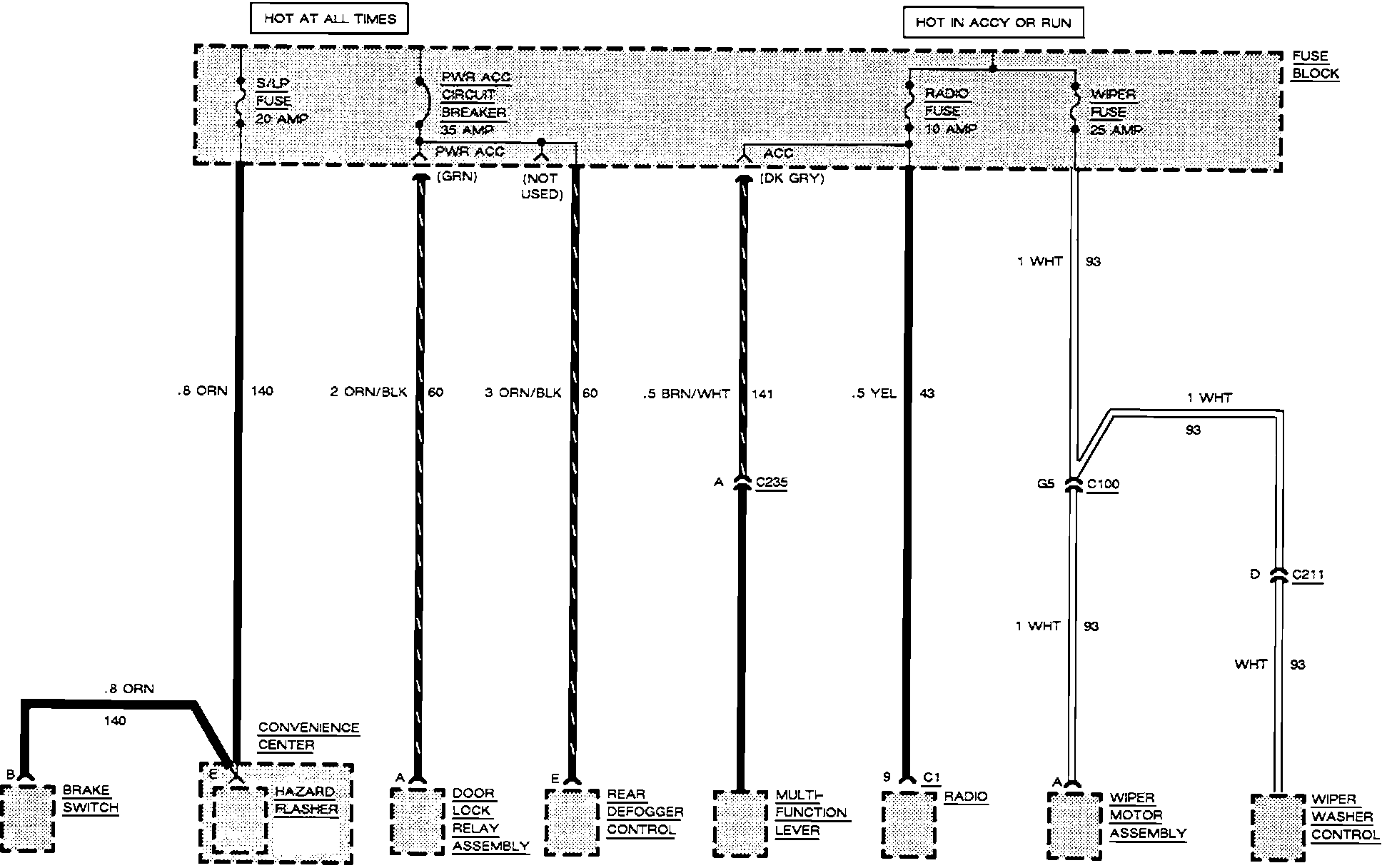

Fuse Block Details (Radio Fuse, S/LP Fuse, Wiper Fuse & PWR ACC Circuit Breaker:
